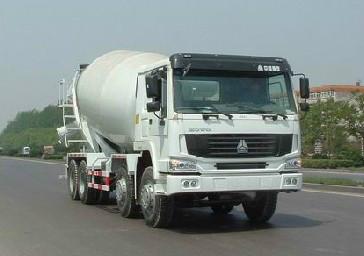

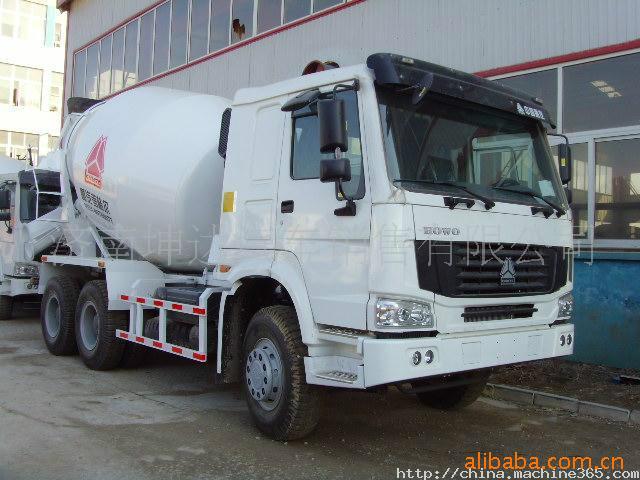

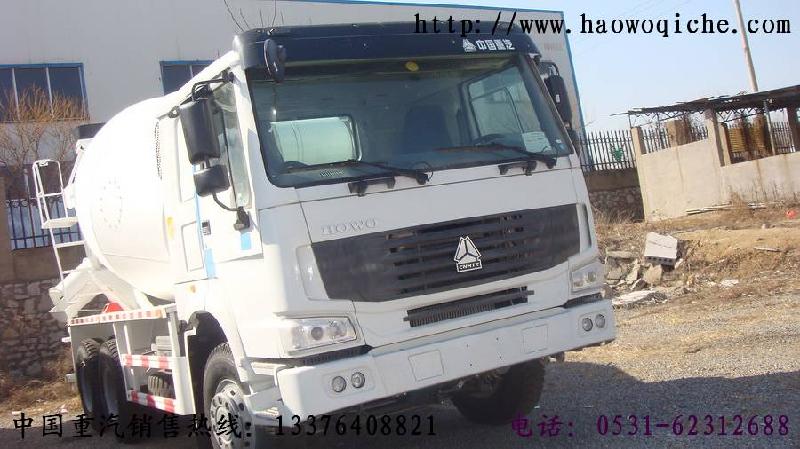

| Name vehicles 車輛名稱: | Concrete mixer 混凝土攪拌運輸車 | | |
| Types of vehicles 車輛類別: | Special vehicle 車 | ||
| Vehicle models 車輛型號: | ZZ5257GJBM3247C | ||
| Chinese brands 中文品牌: | 豪濼牌 | ||
| English brand 英文品牌: | HOWO | ||
| SDRC car instalment Notice 發改委汽車公告批次: | E7(147) | ||
| Exemption : | NO 否 | ||
| Engine Model 發動機型號: | WD615.92 WD615.93 WD615.92E WD615.93E | Engine power 發動機功率: | 196 213 196 213 |
| Engine capacity 發動機排量: | 9726 9726 9726 9726 | Engine manufacturers 發動機生產商: | SINOTRUK 中國重型汽車集團有限公司 |
| Dimensions 外型尺寸(長×寬×高)(mm): | 8204×2496×3850 | Carriage inner dimension (Length×Width×Height)(mm) 貨廂欄板內尺寸(長×寬×高)(mm): | ×× |
| The total mass 總質量(Kg): | 25000 | In the quality of the utilization factor 載質量利用系數: | |
| Kerb weight 整備質量: | 12800 | Rated contained mass 額定載質量: | 12070 |
| Approach / departure angle 接近角/離去角(°): | 16/32 | Front / Rear hanging 前懸/后懸: | 1500/2129 1500/2104 |
| Wheelbase 軸距: | 3225+1350 3200+1400 | Axle-load 軸荷: | 6500 7000 18000(并裝雙軸) |
| Shaft number 軸數: | 3 | Maximum speed 車速 (km/h): | 90,102 |
