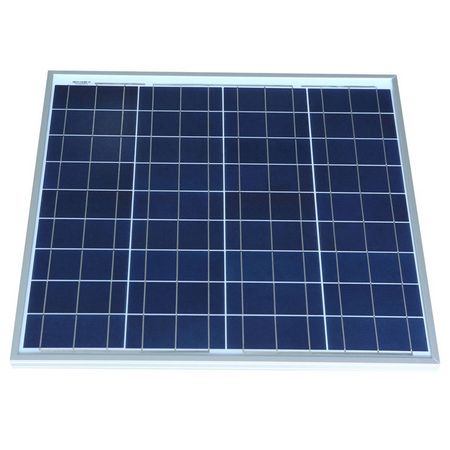

供應太陽能電池板50W
Electrical Characteristics JJ-50D-12
| Maximum power at STC(Pmax) 50W |
| Optimum operating voltage(Vmp) 17.2V |
| Optimum operating current(Imp) 2.91A |
| Open-circuit voltage(Voc) 21.6V |
| Short-circuit current(Isc) 3.23A |
| Short-circuit current temperature coefficient (0.065±0.015)%/℃ |
| Open-circuit voltage temperature coefficient -(80±10)mV/℃ |
| Peak power temperature coefficient -(0.5±0.05)%/℃ |
| NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s) 47±2℃ |
| Operating temperature -40℃ to 85℃ |
| Maximum system voltage 600V DC |
| Power tolerance ±3% |
STC: lrradiance 1000W/m2,Module temperature 25℃,AM=1.5
| Cell Poly-crystalline silicon solar cells |
| No. of cell and connection 36(4×9) |
| Dimension of module 603mm×670mm×35mm |
| Weight 5.3kg |
