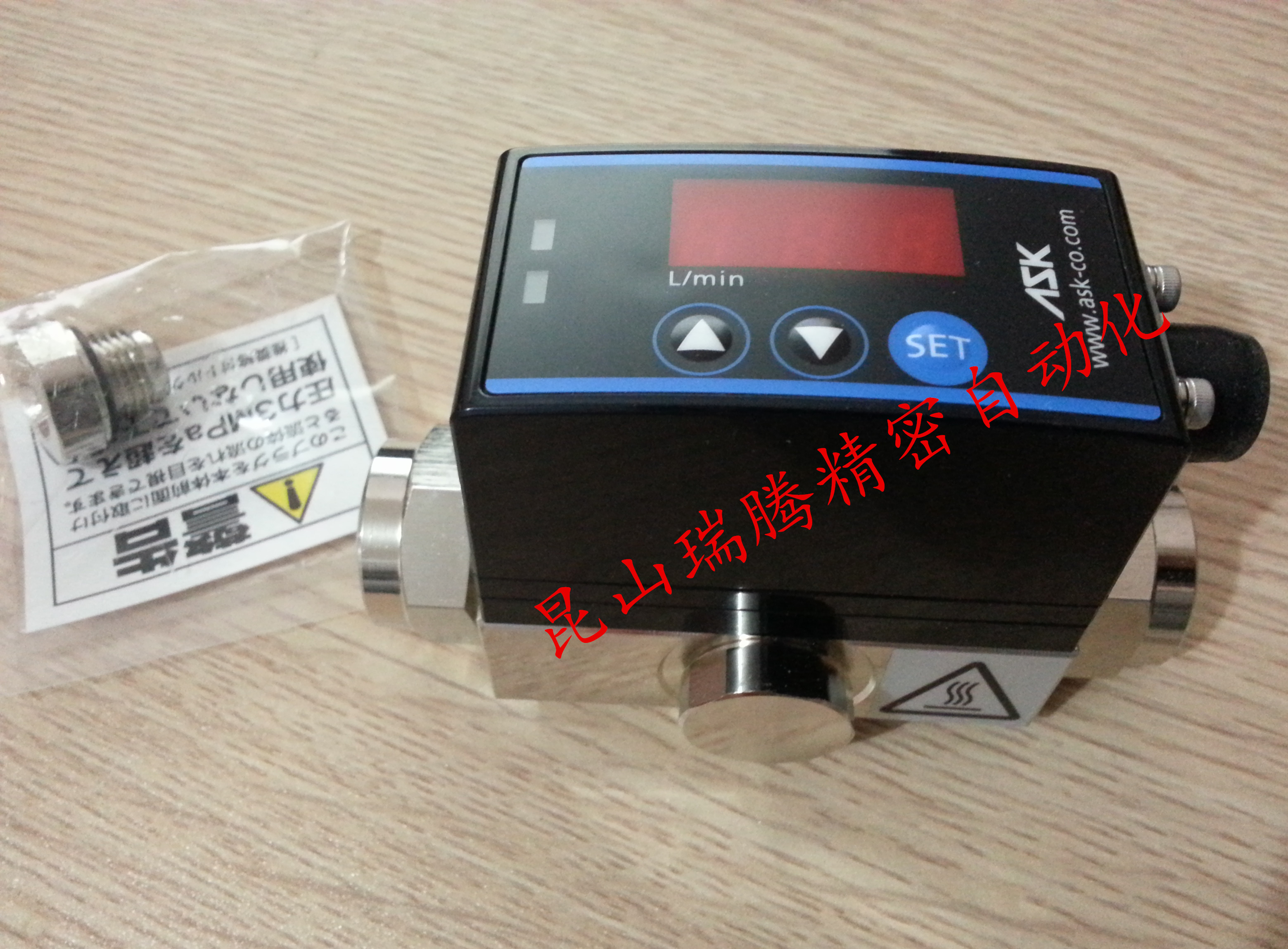

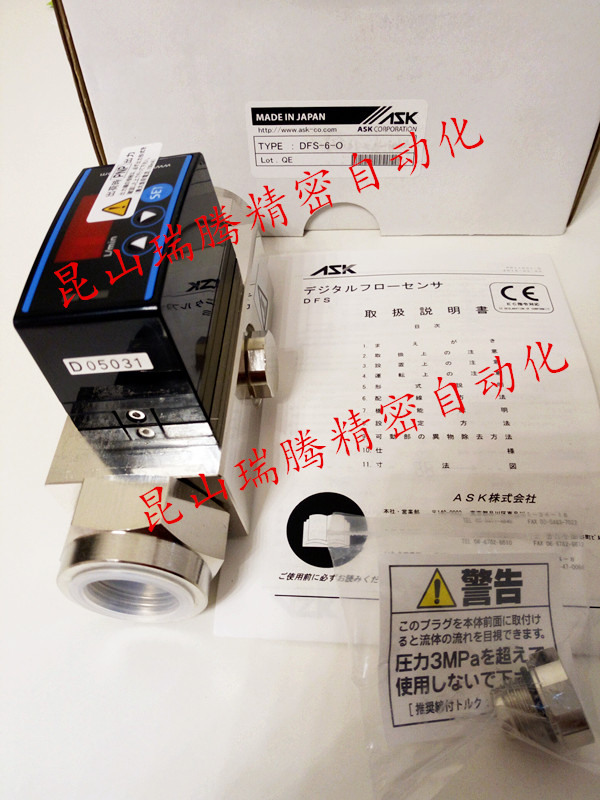

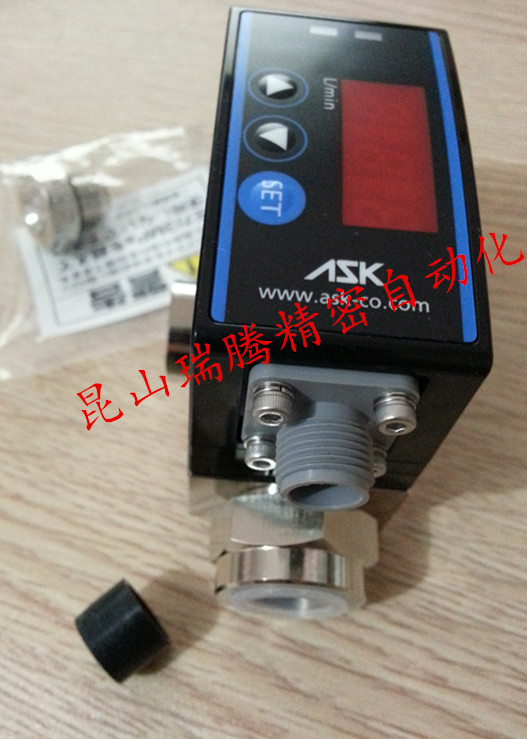

供應日本ASK數字流量計DFS-3-O

[ASK數字流量計]

蘇州市日本數字流量計廠家

采購數量

1 臺以上

價格

￥4555.00

運費： 江蘇蘇州市昆山市 | 賣家支付運費

購買數量： 庫存 1臺

在線詢盤聯系廠家：15995605811 0512-55179360

在線詢盤

提交詢盤信息，一呼百應會為您匹配更多優質、合適的供應商！

*采購產品：

信息不能為空！請?zhí)顚懀?/p>

*采購量/單位：

采購量不能為空！

*期望價格：

元

價格不能為空！

*報價截止日期：

截止日期不能為空！

*聯系人：

聯系人不能為空！

*聯系電話：

聯系電話不能為空！

[ASK數字流量計]

我想要了解：

產品價格更多商品信息

請輸入您要咨詢的問題：

您的聯系方式：

郵箱：

手機：

詳細信息（供應日本ASK數字流量計DFS-3-O）

品牌： ASK
型號： DFS-3-O
加工定制： 否
類型： 葉輪式流量計
測量范圍： 2～20 L/min
適用介質： 液壓油
規格： DC12～24 V (permissible voltage

Digital flow sensor 數顯流量傳感器
DFS 系列
產地: 日本

型號: DFS-3-O DFS-1-0
A single unit offers three functions: Flow Switch, Flow Sight, and Flow Meter.

Features

This sensor has a seven-segment LED digital display to make you read flow rate value easily.
You can select one of two different kinds of output types: PNP output or NPN output.
This sensor is used with a connector (M12×4-pin).
You can use the digital flow sensor with an input power supply of from 12 to 24 V DC (permissible voltage fluctuation ±10 %).
The amplifier protection structure conforms to IP67 equivalent.
You can set the lower limit of the flow rate. If the flow rate falls below this limit, the red LED lamp (NG) turns on, and contact signal output is given to notify the operator of the critical situation.
In the e of low pressure specifications, you can check the flow of fluid by observing the rotor rotation.
You can use the sensor at the desired installation ition (horizontal, vertical, or tilted ition) and in the desired inflow direction.
Rotor can be cleaned by air removing the cap from the front of the main body.

Type : DFS-1-O-*


	Model	Digital flow sensor
	Screw diameter (for both sides)	1 : Rc1/8 2 : Rc1/4 3 : Rc3/8 6 : Rc3/4 8 : Rc1
	Applicable fluid	O : Hydraulic oil, lubrication oil (DFS-1: Only O type) W :Water, water soluble cutting oil
	Custom specification	Please ask us.

Example of use

Seizure can be oided by flow cool of lubricating oil for the spindles and bearings of machine tools, printing machines, presses and speed reducers.
Tool damage and fire can be prevented by cool of coolant flow to machine tools.
This sensor is used to check if the filter is clogged or not.
Coolant flow cool.

Specifications
? Body and overall Specifications

Type	DFS-1	DFS-2	DFS-3	DFS-6	DFS-8
Connection diameter	Rc1/8	Rc1/4	Rc3/8	Rc3/4	Rc1
Maximum Flow Rate ( ?/min)	1	10	20	50	100
Measurement Range ( ?/min)	0.2∼1	1∼10	2∼20	5∼50	10∼100
Maximum Pressure (MPa)	3	3 (if a metal/plastic cap is installed) 25 (if an all-metal cap is installed)
Flow Sight Function	ailable	ailable (if a metal/plastic cap is installed) Not ailable (if an all-metal cap is installed) ※1
Accuracy (?/min)	±0.1	±0.5	±1.0	±2.5	±5.0
Applicable Fluid ※2	Hydraulic oil, Lubrication oil	Hydraulic oil, Lubrication oil Water, Water-soluble cutting oil
Pressure loss ※3	> 0.03MPa	> 0.025MPa
Temperature	0～80 ℃ (Fluid) 0～50 ℃ (Ambient temperature)
Material (Fluid contact part)	C3604 (Ni Plating),Nd-Fe-B,POM,PC,NBR (DFS-1: C3604→SUS304)

? Amplifier specifications

Power source	DC12～24 V (permissible voltage fluctuation ±10 %)
Current Consumption	Maximum 100 mA
Output	NPN open collector (factory setting) /PNP open collector. Maximum load 100 mA
Connection	M12X1-4-pin connector (DC)
Degree of Protection	IP67 equivalent
Material (outside)	ABS, NBR, PA, and POLYESTER
Display ※4	Seven-segment LED (Green/Red)
Output state ※5	More than adjusted value : LED (Green) ON / LED (Red) OFF Less than adjusted value : LED (Green) OFF / LED (Red) ON
Connector ※6

※1：	You can not see fluid if the metal cap (for high pressure) is installed.
※2：	We adjust each type of sensors at our factory in accordance with fluid type. Please specify the type of fluid you intend to use the sensor with when you place your order.
※3：	Value for Max. Flow rate at viscosity 32 cSt.
※4：	You can select the non-display mode.
※5：	You can configure alarm flow rate optionally. See the DFS instruction manual on how to configure.
※6：	We also sell a single article of sensor cable. Please ask us, for details.

Principle of actuation

The detection part of digital flow sensor utilizes rotation of the rotor (turbine) installed in the passage. The measuring part detects, by means of the external magnetic sensor, the rotational speed of the permanent magnet mounted on the circumference of the rotor.
You can select NPN output or PNP output optionally.
