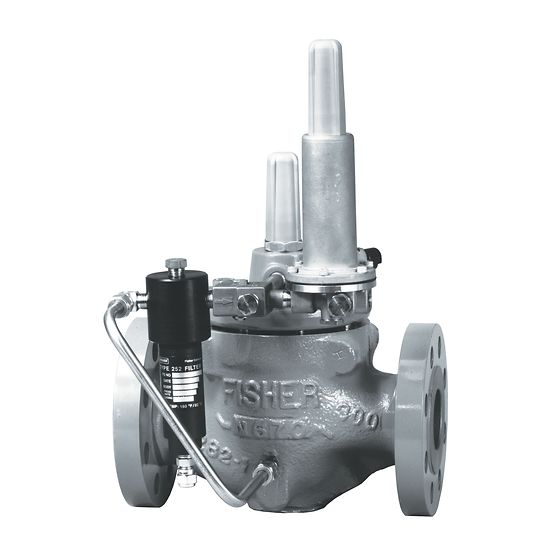

Fisher? EZR 系列減壓調壓器

功 能

嚴密關斷—金屬塞設計可使顆粒和碎屑偏離閥膜，帶來的關斷效果，延長維護間隔。

防碎屑保護—EZR 系列閥籠創新性的流體通路可以減少碎屑帶來的損傷，而不銹鋼入口粗濾器可以防止大塊的碎屑損傷閥膜。

運行安靜—標準閥籠可實現的減噪效果，使 EZR 產品較同類的柔性元件調壓器噪聲低 6-8 dBa。

使用壽命長—經現場驗證的閥膜具有分層纖維結構，凸起式焊邊和模制形狀，從而具有更高的強度、更好的耐用性和更長的使用壽命。

更大的液體處理能力—EZR 系列的流體路徑可獲得的液體處理能力，且運行極為安靜。 Fisher? 產品經實驗室檢測，其公布的產品流體數據皆能 實現。

行程指示器—簡化了維護過程的檢測和系統故障排查

高精度—161EB 系列、161AY 系列和 PRX/120 先導型提供了多出口壓力范圍和窄比例段，賦予 EZR 系列緊密且的控制能力。

一體化切斷—EZR-OSX 型切斷在出現過壓或失壓時會中斷供氣。

規 格

可選配置

EZL 型：控制范圍為 6 in w.c. 至 1000 psig / 15 mbar 至 68.9 bar
EZLOSX 型：EZR 型帶一體化 OS2 式快速關斷設備

閥體尺寸和端面連接方式

閥體尺寸：NPS 1, 2x1, 2, 3, 4, 6x4, 8x4, 6, 8, 8x6, 12x6 / DN 25, 50x25, 50, 80, 100, 200x100, 150, 200, 200x150, 300x150
端面連接：150RF, 300RF, 600RF, NPT, 125FF, 250RF, SWE, BWE

主閥體壓力額定值

操作入口壓力：1050 psig / 72 bar
操作壓差：800 psid / 55 bar d
緊急入口和壓差：1050 psid / 72 bar d

出口壓力范圍

6 in. w.c. 至 1000 psig / 15 mbar 至 69.0 bar

溫度適用范圍

-20 至 260°F / -29 至 127°C

Type EZR pilot-operated, pressure reducing regulator designed to give accurate, smooth, quiet operation, tight shutoff, and long life, even in dirty service. EZR Series can be installed in various applications such as natural gas transmission/distribution systems, industrial and commercial facilities. The Type EZROSX is ailable with a slam-shut device which provides overpressure protection and/or under pressure protection by completely shutting off the flow of gas to the downstream system.

Features

Tight Shutoff—The metal plug is designed to deflect particles and debris away from the diaphragm, providing superior shutoff and increasing the time between maintenance intervals.

Debris Protection—The revolutionary flow path of the EZR Series cage minimizes the damage from debris while the stainless steel inlet strainer prevents large particles from damaging the diaphragm.

Quiet Operation—The standard cage provides best-in-class noise reduction, making the EZR Series 6-8 dBa quieter than comparable flexible element regulators.

Long Life—The field proven dipragm design incorporates layered fabric, a raised bead edge and molded shape to increase strength, durability, and service life

High Capacity—The flow path of the EZR Series produces best-in-class capacity combined with the quietest operation. Fisher? products are laboratory tested so of the published flow capacity can be used with confidence.

Trel Indicator—Simplifies in-service inspection and system troubleshooting

High Accuracy—Multiple outlet pressure ranges and narrow proportional bands offered by the 161EB Series, 161AY Series and Type PRX/120 pilots provide the EZR Series with tight, accurate cool.

Integrated Slamshut—Type EZR-OSX slam-shut interrupts gas service during an overpressure or underpressure condition.

Specifications

ailable Configurations Type EZR: Cool Range of 6 inches w.c. to 1000 psig / 15 mbar to 68,9 bar

Type EZROSX: Type EZR with an integrated Type OS2 slam-shut device

Body Sizes and End Connection Styles Body Sizes: NPS 1, 2x1, 2, 3, 4, 6x4, 8x4, 6, 8, 8x6, 12x6 / DN 25, 50x25, 50, 80, 100, 200x100, 150, 200, 200x150, 300x150

End Connections: 150RF, 300RF, 600RF, NPT, 125FF, 250RF, SWE, BWE

Main Valve Pressure Ratings Maximum Operating Inlet Pressure: 1050 psig / 72 bar

Maximum Operating Differential Pressure: 800 psid / 55 bar d

Maximum Emergency Inlet and Differential Pressure: 1050 psid / 72 bar d

Outlet Pressure Ranges 6-inches w.c. to 1000 psig / 15 mbar to 69.0 bar

Temperature Capabilities -20 to 260°F / -29 to 127°C
