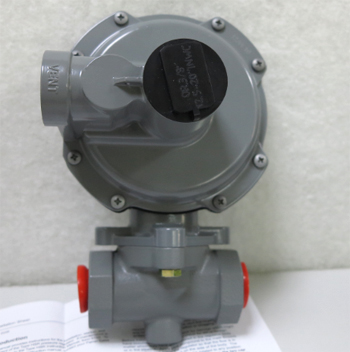

Fisher? HSR 型調壓器

功能

角型閥體

直通閥體

高流通能力

緊湊型設計

高流量內部泄壓

滿足或超出 ANSI B109.4 / CGA 6.18 標準的要求

固定系數/PFM 精度

規格

閥體尺寸和端部連接方式

角型閥體或直通閥體可提供 NPS 3/4 x 3/4、3/4 x 1、1 x 1、NPT 所有尺寸

允許的入口壓力

緊急：150 psig / 10.3 bar
工作壓力：125 psig / 8.6 bar

允許的出口壓力

緊急（外殼）：25 psig / 1.7 bar
要避免內部零件損壞的工作壓力：3 psi / 0.21 bar 超出出口壓力設置的差壓

出口壓力范圍

4 in. w.c. 至 2.2 psig / 10 mbar 至 0.15 bar 之間的七個范圍

取壓方式

內取壓

溫度適用范圍

-20 至 160°F/-29 至 71℃

Type HSR direct-operated, spring-loaded pressure reducing regulators provide cool in residential, commercial, and industrial applications for natural, manufactured, or liquefied petroleum gases.Internal relief across the diaphragm helps minimize overpressure. Any outlet pressure over the start-to-discharge point of the nonadjustable relief valve spring moves the diaphragm off the relief valve seat, allowing excess pressure to vent.
Regulators meet ANSI B109.4/CGA 6.18.

Features

Angle Bodies

Globe Bodies

High Capacity

Compact Design

High Capacity Internal Relief

Meets or Exceeds ANSI B109.4 / CGA 6.18 Requirements

Fixed Factor / PFM Accuracy

Specifications

Body Size and End Connection Styles NPS 3/4 x 3/4, 3/4 x 1, 1 x 1, NPT All sizes ailable in Globe or Angle Body

Allowable Inlet Pressure Emergency: 150 psig / 10,3 bar

Maximum Operating Pressure: 125 psig / 8,6 bar

Allowable Outlet Pressure Emergency (ing): 25 psig / 1,7 bar

Maximum Operating Pressure to oid Internal Parts Damage: 3 psi / 0,21 bar differential above outlet pressure setting

Outlet Pressure Ranges 4-inches w.c. to 2.2 psig / 10 mbar to 0,15 bar in 7 ranges

Pressure Registration Internal

Temperature Capabilities -20 to 160°F / -29 to 71°C
