供應輪胎破碎機 輪胎破碎機橡膠破碎機輪胎粉碎機

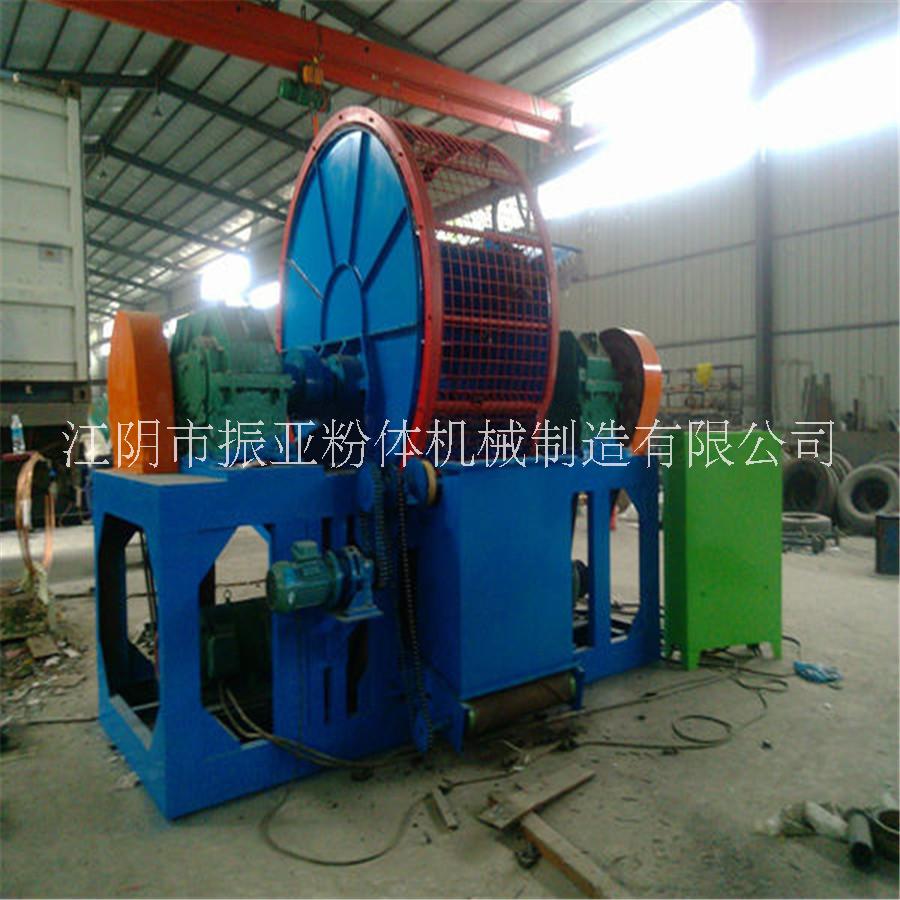

ZPS-900/1200型整胎破碎機

ZPS-900/1200 whole type shredder

該產品是我公司引進吸收消化*技術研制而成的第二代產品。在常溫下對輪胎可直接投入機腔進行粗破碎成50*300mm的塊狀，以便于下道旋轉研磨成10-30目膠粒和分離鋼絲或纖維的設備。This product is our company ioduces the advanced technology research and absorbing and second generation product. At the general temperature, can be put directly into tire aum coarse crushing into 50 * 300 mm block, so the next rotating can grind into 10-30 meshes granule or wire and fiber separation equipment.

特點：

本機是具有結構緊湊、工藝、能耗低、效率高、粉碎室為對開試結構，維修保養尤為方便等特點；刀采用硬質合金堆焊技術，高硬度、高耐磨、并可反復修復使用，故使用壽命較長；圓網篩為鋼絲網格結構，落料面積大，有利合格膠料出篩。對特大型輪胎需分割后同樣能達到如意的效果!This machine is a compact structure, advanced technology, low energy consumption, high efficiency, smashing off the test room for the structure, maintenance is particularly convenient; tools with carbide surfacing technology, high hardness, high wear resistance, and repeated repair using, so has a longer service life; rotary screen for the lattice structure of steel mesh, blanking  large area, enabling the screening of qualified rubber. After the partition of large tires can achieve the effect of the same!

Mechanical description;the tire of 900mm diameter and rubber ring can directly broken into 50-300 mm of plastic block.

機械功能說明：

將直徑900mm以下整胎或切斷膠圈直接破碎成50*100mm膠塊。

工作原理：

電動機驅動液壓馬達經行星齒輪減速以強大的切削轉矩，在常溫下連續切削、擠壓、挫碾后，使進入切割室的破碎物料初步切割成塊狀，經分選篩自動分篩，破碎合格的物料輸出，其余較大的物料同其他待破碎的物料一起回到切割室中再次破碎，如此往復循環直到輸出合格的物料。Motor drive  through planetary gear reducer with a strong cutting torque, at general temperature, continuous cutting, pressing, frustrated, after grinding, crushing the material into the cutting room the initial cut into blocks, the automatic sorting sieve screen, broken qualified material output, the rest of the larger materials with other materials to be broken again with the broken back to cutting room, and so forth until the output of qualified circulation of materials.

技術參數
