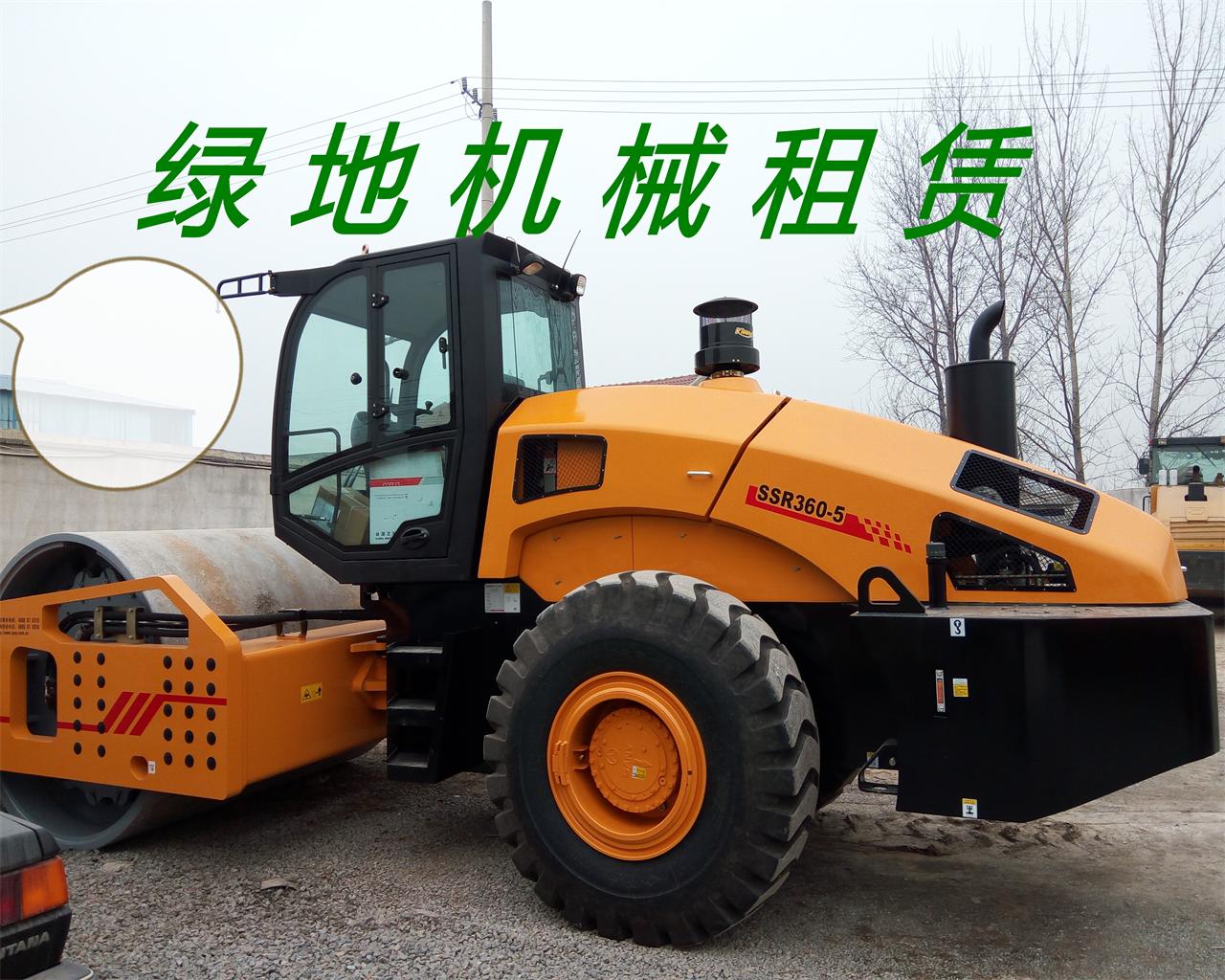

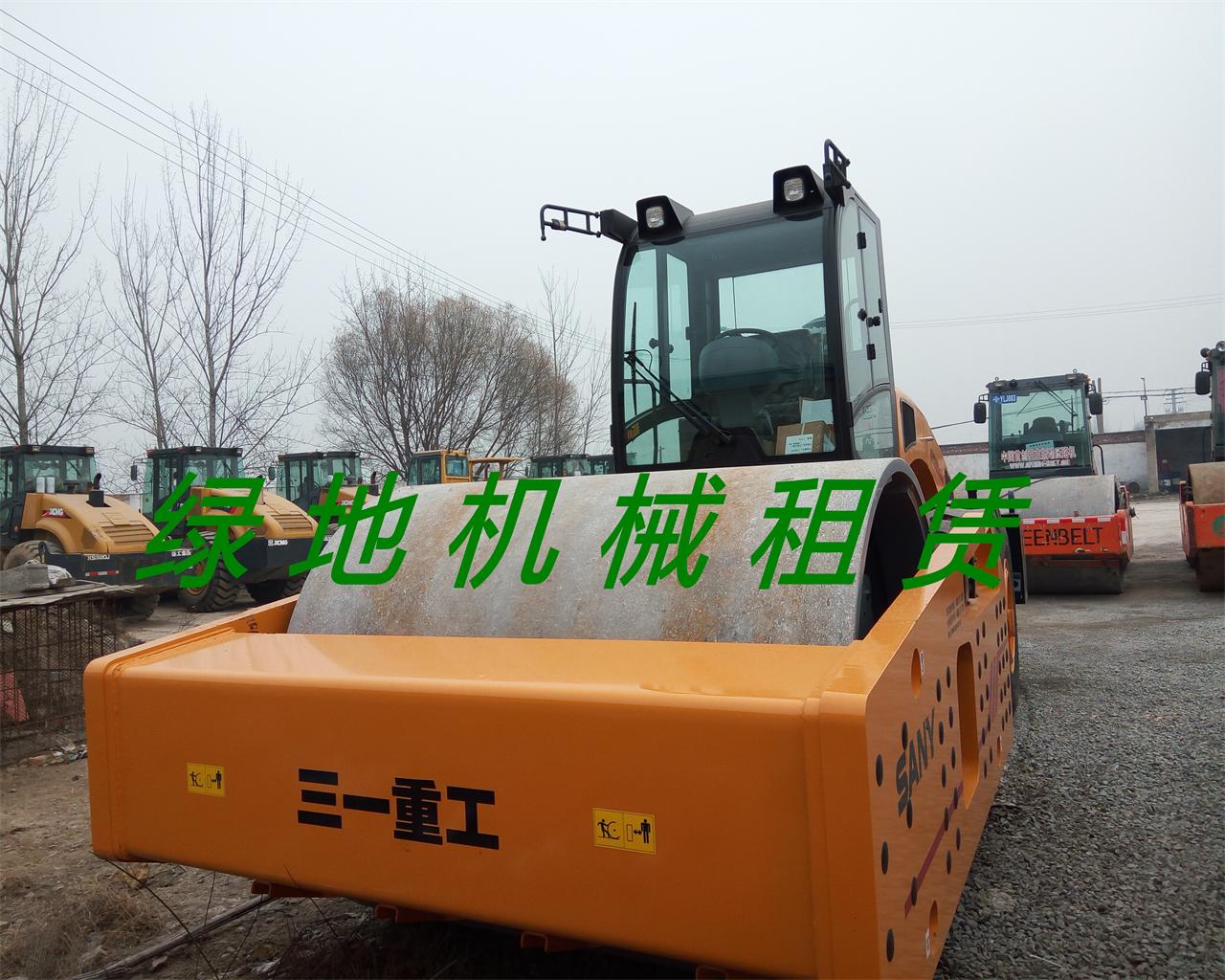

供應三一36噸壓路機，三一SSR360-5壓路機出租

三一重工SSR360壓路機 參數配置

·                                 整機尺寸

·                                 高3298

·                                 寬2530

·                                 長7497

·                                 油/電類容量

·                                 液壓油箱(L)300

·                                 燃油箱(L)400

·                                 發動機

·                                 額定功率(kw/rpm)276

·                                 型號WD12G375E211

·                                 機動性能參數

·                                 最小轉彎外半徑6850

·                                 搖擺角度(°)±12

·                                 轉向角度(°)±35

·                                 不振動理論爬坡能力(%)48

·                                 振動時理論爬坡能力(%)45

·                                 低速行駛速度(km/h)0~5.0

·                                 高速行駛速度(km/h)0~10.0

·                                 壓實機構參數

·                                 振動輪輪圈厚度50

·                                 振動輪直徑1800

·                                 工作寬度/振動輪寬度2250

·                                 激振力(kN)460~685/286~440

·                                 名義振幅2.1/1.1

·                                 振動頻率(Hz)23~28/25~31

·                                 質量載荷參數

·                                 后輪靜線載荷(N/cm)1067

·                                 前輪靜線載荷(N/cm)1067

·                                 帶駕駛室工作質量36000
