成都市金屬接頭廠家_供應用于軟管連接器的金屬接頭鐵銅不銹鋼鋅合金直頭彎頭/成都廠家直銷/*價格優勢/50套起批/快速發貨
供應用于軟管連接器的金屬接頭鐵銅不銹鋼鋅合金直頭彎頭/成都廠家直銷/*價格優勢/50套起批/快速發貨
[金屬接頭]
成都市金屬接頭廠家
采購數量
價格
運費：
四川 成都市 金牛區 |
賣家支付運費
購買數量：
庫存
1000000套
[金屬接頭]
我想要了解：
請輸入您要咨詢的問題：
您的聯系方式：
郵箱：
手機：
詳細信息（供應用于軟管連接器的金屬接頭鐵銅不銹鋼鋅合金直頭彎頭/成都廠家直銷/*價格優勢/50套起批/快速發貨）
- 加工定制： 是
- 材質： 鐵、銅、不銹鋼、鋅合金
- 規格： 1/4"-4"
- 適用范圍： 航空、航天、石油、化工、造船、造紙、儀表、電線、電纜等
- 外徑： 14mm-114mm
- 型號： LTC
- 用途： 軟管連接器
- 種類： 金屬接頭
供應用于軟管連接器的金屬接頭鐵銅不銹鋼鋅合金直頭彎頭/成都廠家直銷/*勢/50套起批/快速發貨供應用于軟管連接器的金屬接頭鐵銅不銹鋼鋅合金直頭彎頭
標簽：
金屬接頭
金屬接頭
成都市金屬接頭
成都市金屬接頭廠家

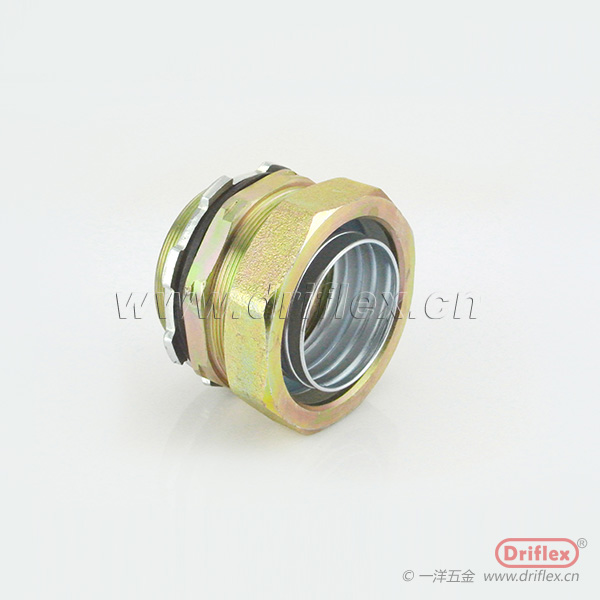

| 防水直頭軟管連接器（公制/ISO) | Liquid Tight Conduit Straight Connector | |||||
| 材 質： | 鐵、銅、不銹鋼 | |||||
| 防護等級： | IP68 | |||||
| 鍍 層： | 鋅、鉻、鎳 | |||||
| Materials: | Iron 、Brass、Stainless Steel | |||||
| Protection Rating: | IP68 | |||||
| Plating: | Zinc、Chrome、Nickel | |||||
| 型號 Part No. | 螺紋標準 | 適配軟管(") | 適配軟管 | 小頭螺紋外徑 | ||
| 鐵 Iron | 銅 Brass | 不銹鋼SS | A(mm) | |||
| LTCM-I06 | LTCM-B06 | LTCM-S06 | M14 x 1.5 | 3/16" | Ф6 | 14.0 |
| LTCM-I07 | LTCM-B07 | LTCM-S07 | M16 x 1.5 | 1/4" | Ф8 | 16.0 |
| LTCM-I08 | LTCM-B08 | LTCM-S08 | M16 x 1.5 | 5/16" | Ф10 | 16.0 |
| LTCM-I09 | LTCM-B09 | LTCM-S09 | M16 x 1.5 | 3/8" | Ф12 | 16.0 |
| LTCM-I10 | LTCM-B10 | LTCM-S10 | M20 x 1.5 | 3/8" | Ф12 | 20.0 |
| LTCM-I11 | LTCM-B11 | LTCM-S11 | M20 x 1.5 | 1/2" | Ф16 | 20.0 |
| LTCM-I12 | LTCM-B12 | LTCM-S12 | M25 x 1.5 | 3/4" | Ф20 | 25.0 |
| LTCM-I13 | LTCM-B13 | LTCM-S13 | M32 x 1.5 | 1" | Ф25 | 32.0 |
| LTCM-I14 | LTCM-B14 | LTCM-S14 | M40 x 1.5 | 1-1/4" | Ф32 | 40.0 |
| LTCM-I15 | LTCM-B15 | LTCM-S15 | M50 x 1.5 | 1-1/2" | Ф38 | 50.0 |
| LTCM-I16 | LTCM-B16 | LTCM-S16 | M63 x 1.5 | 2" | Ф51 | 63.0 |
| LTCM-I17 | LTCM-B17 | LTCM-S17 | M76 x 2.0 | 2-1/2" | Ф64 | 76.0 |
| LTCM-I18 | LTCM-B18 | LTCM-S18 | M88 x 2.0 | 3" | Ф75 | 88.0 |
| LTCM-I19 | LTCM-B19 | LTCM-S19 | M114 x 2.0 | 4" | Ф100 | 114.0 |
| 防水直頭軟管連接器（美標/NPT) | Liquid Tight Conduit Straight Connector | |||||
| 材 質： | 鐵、銅、不銹鋼 | |||||
| 防護等級： | IP68 | |||||
| 鍍 層： | 鋅、鉻、鎳 | |||||
| Materials: | Iron 、Brass、Stainless Steel | |||||
| Protection Rating: | IP68 | |||||
| Plating: | Zinc、Chrome、Nickel | |||||
| 型號 Part No. | 螺紋標準 | 適配軟管(") | 適配軟管 | 小頭螺紋外徑 | ||
| 鐵 Iron | 銅 Brass | 不銹鋼SS | A(mm) | |||
| LTC-I09 | LTC-B09 | LTC-S09 | NPT3/8" | 3/8" | Ф12 | 17.0 |
| LTC-I10 | LTC-B10 | LTC-S10 | NPT3/8" | 3/8" | Ф12 | 21.2 |
| LTC-I11 | LTC-B11 | LTC-S11 | NPT1/2" | 1/2" | Ф16 | 21.2 |
| LTC-I12 | LTC-B12 | LTC-S12 | NPT3/4" | 3/4" | Ф20 | 26.5 |
| LTC-I13 | LTC-B13 | LTC-S13 | NPT1" | 1" | Ф25 | 33.2 |
| LTC-I14 | LTC-B14 | LTC-S14 | NPT1-1/4" | 1-1/4" | Ф32 | 42.0 |
| LTC-I15 | LTC-B15 | LTC-S15 | NPT1-1/2" | 1-1/2" | Ф38 | 48.1 |
| LTC-I16 | LTC-B16 | LTC-S16 | NPT2" | 2" | Ф51 | 60.1 |
| LTC-I17 | LTC-B17 | LTC-S17 | NPT2-1/2" | 2-1/2" | Ф64 | 73.0 |
| LTC-I18 | LTC-B18 | LTC-S18 | NPT3" | 3" | Ф75 | 89.0 |
| LTC-I19 | LTC-B19 | LTC-S19 | NPT4" | 4" | Ф100 | 114.0 |
| 防水直頭軟管連接器（英制/G) | Liquid Tight Conduit Straight Connector | |||||
| 材 質： | 鐵、銅、不銹鋼 | |||||
| 防護等級： | IP68 | |||||
| 鍍 層： | 鋅、鉻、鎳 | |||||
| Materials: | Iron 、Brass、Stainless Steel | |||||
| Protection Rating: | IP68 | |||||
| Plating: | Zinc、Chrome、Nickel | |||||
| 型號 Part No. | 螺紋標準 | 適配軟管(") | 適配軟管 | 小頭螺紋外徑 | ||
| 鐵 Iron | 銅 Brass | 不銹鋼SS | A(mm) | |||
| LTCG-I06 | LTCG-B06 | LTCG-S06 | G1/4" | 3/16" | Ф6 | 13.0 |
| LTCG-I07 | LTCG-B07 | LTCG-S07 | G3/8" | 1/4" | Ф8 | 16.7 |
| LTCG-I08 | LTCG-B08 | LTCG-S08 | G3/8" | 5/16" | Ф10 | 16.7 |
| LTCG-I09 | LTCG-B09 | LTCG-S09 | G3/8" | 3/8" | Ф12 | 16.7 |
| LTCG-I10 | LTCG-B10 | LTCG-S10 | G1/2" | 3/8" | Ф12 | 21.0 |
| LTCG-I11 | LTCG-B11 | LTCG-S11 | G1/2" | 1/2" | Ф16 | 21.0 |
| LTCG-I12 | LTCG-B12 | LTCG-S12 | G3/4" | 3/4" | Ф20 | 26.4 |
| LTCG-I13 | LTCG-B13 | LTCG-S13 | G1" | 1" | Ф25 | 33.3 |
| LTCG-I14 | LTCG-B14 | LTCG-S14 | G1-1/4" | 1-1/4" | Ф32 | 41.9 |
| LTCG-I15 | LTCG-B15 | LTCG-S15 | G1-1/2" | 1-1/2" | Ф38 | 47.8 |
| LTCG-I16 | LTCG-B16 | LTCG-S16 | G2" | 2" | Ф51 | 59.6 |
| LTCG-I17 | LTCG-B17 | LTCG-S17 | G2-1/2" | 2-1/2" | Ф64 | 73.0 |
| LTCG-I18 | LTCG-B18 | LTCG-S18 | G3" | 3" | Ф75 | 89.0 |
| LTCG-I19 | LTCG-B19 | LTCG-S19 | G4" | 4" | Ф100 | 114.0 |

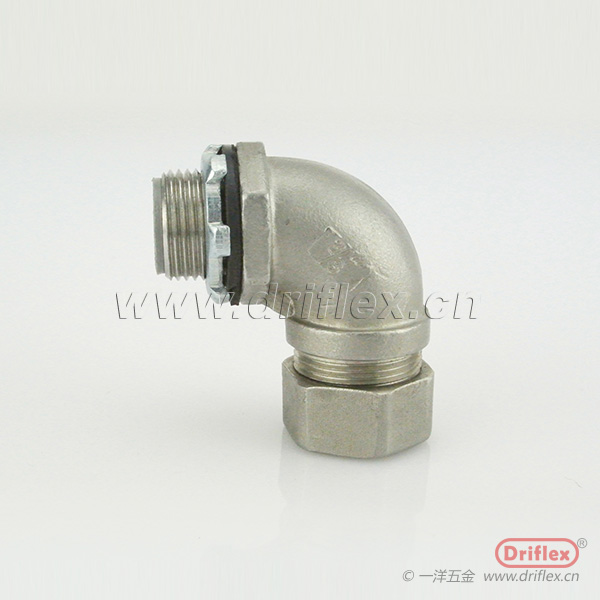

| 防水90度彎頭軟管連接器（公制/ISO) | Liquid Tight Conduit 90d Angle | |||||
| 材 質： | 可鍛鑄鐵、銅、不銹鋼 | |||||
| 防護等級： | IP68 | |||||
| 鍍 層： | 鋅、鉻、鎳 | |||||
| Materials: | Malleable Iron 、Brass、Stainless Steel | |||||
| Protection Rating: | IP68 | |||||
| Plating: | Zinc、Chrome、Nickel | |||||
| 型號 Part No. | 螺紋標準 | 適配軟管(") | 適配軟管 | 小頭螺紋外徑 | ||
| 鐵 Iron | 銅 Brass | 不銹鋼SS | A(mm) | |||
| LTCM-I209 | LTCM-B209 | LTCM-S209 | M16 x 1.5 | 3/8" | Ф12 | 16.0 |
| LTCM-I20 | LTCM-B20 | LTCM-S20 | M20 x 1.5 | 3/8" | Ф12 | 20.0 |
| LTCM-I21 | LTCM-B21 | LTCM-S21 | M20 x 1.5 | 1/2" | Ф16 | 20.0 |
| LTCM-I22 | LTCM-B22 | LTCM-S22 | M25 x 1.5 | 3/4" | Ф20 | 25.0 |
| LTCM-I23 | LTCM-B23 | LTCM-S23 | M32 x 1.5 | 1" | Ф25 | 32.0 |
| LTCM-I24 | LTCM-B24 | LTCM-S24 | M40 x 1.5 | 1-1/4" | Ф32 | 40.0 |
| LTCM-I25 | LTCM-B25 | LTCM-S25 | M50 x 1.5 | 1-1/2" | Ф38 | 50.0 |
| LTCM-I26 | LTCM-B26 | LTCM-S26 | M63 x 1.5 | 2" | Ф51 | 63.0 |
| 防水90度彎頭軟管連接器（美標/NPT) | Liquid Tight Conduit 90d Angle | |||||
| 材 質： | 可鍛鑄鐵、銅、不銹鋼 | |||||
| 防護等級： | IP68 | |||||
| 鍍 層： | 鋅、鉻、鎳 | |||||
| Materials: | Malleable Iron 、Brass、Stainless Steel | |||||
| Protection Rating: | IP68 | |||||
| Plating: | Zinc、Chrome、Nickel | |||||
| 型號 Part No. | 螺紋標準 | 適配軟管(") | 適配軟管 | 小頭螺紋外徑 | ||
| 鐵 Iron | 銅 Brass | 不銹鋼SS | A(mm) | |||
| LTC-I209 | LTC-B209 | LTC-S209 | NPT3/8" | 3/8" | Ф12 | 17.0 |
| LTC-I20 | LTC-B20 | LTC-S20 | NPT3/8" | 3/8" | Ф12 | 21.2 |
| LTC-I21 | LTC-B21 | LTC-S21 | NPT1/2" | 1/2" | Ф16 | 21.2 |
| LTC-I22 | LTC-B22 | LTC-S22 | NPT3/4" | 3/4" | Ф20 | 26.5 |
| LTC-I23 | LTC-B23 | LTC-S23 | NPT1" | 1" | Ф25 | 33.2 |
| LTC-I24 | LTC-B24 | LTC-S24 | NPT1-1/4" | 1-1/4" | Ф32 | 42.0 |
| LTC-I25 | LTC-B25 | LTC-S25 | NPT1-1/2" | 1-1/2" | Ф38 | 48.1 |
| LTC-I26 | LTC-B26 | LTC-S26 | NPT2" | 2" | Ф51 | 60.1 |
| 防水90度彎頭軟管連接器（英制/G) | Liquid Tight Conduit 90d Angle | |||||
| 材 質： | 可鍛鑄鐵、銅、不銹鋼 | |||||
| 防護等級： | IP68 | |||||
| 鍍 層： | 鋅、鉻、鎳 | |||||
| Materials: | Malleable Iron 、Brass、Stainless Steel | |||||
| Protection Rating: | IP68 | |||||
| Plating: | Zinc、Chrome、Nickel | |||||
| 型號 Part No. | 螺紋標準 | 適配軟管(") | 適配軟管 | 小頭螺紋外徑 | ||
| 鐵 Iron | 銅 Brass | 不銹鋼SS | A(mm) | |||
| LTCG-I209 | LTCG-B209 | LTCG-S209 | G3/8" | 3/8" | Ф12 | 16.7 |
| LTCG-I20 | LTCG-B20 | LTCG-S20 | G1/2" | 3/8" | Ф12 | 21.0 |
| LTCG-I21 | LTCG-B21 | LTCG-S21 | G1/2" | 1/2" | Ф16 | 21.0 |
| LTCG-I22 | LTCG-B22 | LTCG-S22 | G3/4" | 3/4" | Ф20 | 26.4 |
| LTCG-I23 | LTCG-B23 | LTCG-S23 | G1" | 1" | Ф25 | 33.3 |
| LTCG-I24 | LTCG-B24 | LTCG-S24 | G1-1/4" | 1-1/4" | Ф32 | 41.9 |
| LTCG-I25 | LTCG-B25 | LTCG-S25 | G1-1/2" | 1-1/2" | Ф38 | 47.8 |
| LTCG-I26 | LTCG-B26 | LTCG-S26 | G2" | 2" | Ф51 | 59.6 |
| 防水45度彎頭軟管連接器（公制/ISO) | Liquid Tight Conduit 45d Angle | |||||
| 材 質： | 可鍛鑄鐵、銅、不銹鋼 | |||||
| 防護等級： | IP68 | |||||
| 鍍 層： | 鋅、鉻、鎳 | |||||
| Materials: | Malleable Iron 、Brass、Stainless Steel | |||||
| Protection Rating: | IP68 | |||||
| Plating: | Zinc、Chrome、Nickel | |||||
| 型號 Part No. | 螺紋標準 | 適配軟管(") | 適配軟管 | 小頭螺紋外徑 | ||
| 鐵 Iron | 銅 Brass | 不銹鋼SS | A(mm) | |||
| LTCM-I309 | LTCM-B309 | LTCM-S309 | M16 x 1.5 | 3/8" | Ф12 | 16.0 |
| LTCM-I30 | LTCM-B30 | LTCM-S30 | M20 x 1.5 | 3/8" | Ф12 | 20.0 |
| LTCM-I31 | LTCM-B31 | LTCM-S31 | M20 x 1.5 | 1/2" | Ф16 | 20.0 |
| LTCM-I32 | LTCM-B32 | LTCM-S32 | M25 x 1.5 | 3/4" | Ф20 | 25.0 |
| LTCM-I33 | LTCM-B33 | LTCM-S33 | M32 x 1.5 | 1" | Ф25 | 32.0 |
| LTCM-I34 | LTCM-B34 | LTCM-S34 | M40 x 1.5 | 1-1/4" | Ф32 | 40.0 |
| LTCM-I35 | LTCM-B35 | LTCM-S35 | M50 x 1.5 | 1-1/2" | Ф38 | 50.0 |
| LTCM-I36 | LTCM-B36 | LTCM-S36 | M63 x 1.5 | 2" | Ф51 | 63.0 |
| 防水45度彎頭軟管連接器（美標/NPT) | Liquid Tight Conduit 45d Angle | |||||
| 材 質： | 可鍛鑄鐵、銅、不銹鋼 | |||||
| 防護等級： | IP68 | |||||
| 鍍 層： | 鋅、鉻、鎳 | |||||
| Materials: | Malleable Iron 、Brass、Stainless Steel | |||||
| Protection Rating: | IP68 | |||||
| Plating: | Zinc、Chrome、Nickel | |||||
| 型號 Part No. | 螺紋標準 | 適配軟管(") | 適配軟管 | 小頭螺紋外徑 | ||
| 鐵 Iron | 銅 Brass | 不銹鋼SS | A(mm) | |||
| LTC-I309 | LTC-B309 | LTC-S309 | NPT3/8" | 3/8" | Ф12 | 17.0 |
| LTC-I30 | LTC-B30 | LTC-S30 | NPT3/8" | 3/8" | Ф12 | 21.2 |
| LTC-I31 | LTC-B31 | LTC-S31 | NPT1/2" | 1/2" | Ф16 | 21.2 |
| LTC-I32 | LTC-B32 | LTC-S32 | NPT3/4" | 3/4" | Ф20 | 26.5 |
| LTC-I33 | LTC-B33 | LTC-S33 | NPT1" | 1" | Ф25 | 33.2 |
| LTC-I34 | LTC-B34 | LTC-S34 | NPT1-1/4" | 1-1/4" | Ф32 | 42.0 |
| LTC-I35 | LTC-B35 | LTC-S35 | NPT1-1/2" | 1-1/2" | Ф38 | 48.1 |
| LTC-I36 | LTC-B36 | LTC-S36 | NPT2" | 2" | Ф51 | 60.1 |
| 防水45度彎頭軟管連接器（英制/G) | Liquid Tight Conduit 45d Angle | |||||
| 材 質： | 可鍛鑄鐵、銅、不銹鋼 | |||||
| 防護等級： | IP68 | |||||
| 鍍 層： | 鋅、鉻、鎳 | |||||
| Materials: | Malleable Iron 、Brass、Stainless Steel | |||||
| Protection Rating: | IP68 | |||||
| Plating: | Zinc、Chrome、Nickel | |||||
| 型號 Part No. | 螺紋標準 | 適配軟管(") | 適配軟管 | 小頭螺紋外徑 | ||
| 鐵 Iron | 銅 Brass | 不銹鋼SS | A(mm) | |||
| LTCG-I309 | LTCG-B309 | LTCG-S309 | G3/8" | 3/8" | Ф12 | 16.7 |
| LTCG-I30 | LTCG-B30 | LTCG-S30 | G1/2" | 3/8" | Ф12 | 21.0 |
| LTCG-I31 | LTCG-B31 | LTCG-S31 | G1/2" | 1/2" | Ф16 | 21.0 |
| LTCG-I32 | LTCG-B32 | LTCG-S32 | G3/4" | 3/4" | Ф20 | 26.4 |
| LTCG-I33 | LTCG-B33 | LTCG-S33 | G1" | 1" | Ф25 | 33.3 |
| LTCG-I34 | LTCG-B34 | LTCG-S34 | G1-1/4" | 1-1/4" | Ф32 | 41.9 |
| LTCG-I35 | LTCG-B35 | LTCG-S35 | G1-1/2" | 1-1/2" | Ф38 | 47.8 |
| LTCG-I36 | LTCG-B36 | LTCG-S36 | G2" | 2" | Ф51 | 59.6 |
| 防水鋅合金直頭軟管連接器（公制/ISO) | Zinc Alloy Conduit Straight Connector | |||
| 材 質： | 鋅合金 | |||
| 防護等級： | IP67 | |||
| 鍍 層： | 鋅、鉻 | |||
| Materials: | Zinc Alloy | |||
| Protection Rating: | IP67 | |||
| Plating: | Zinc、Chrome | |||
| 型號 Part No. | 螺紋標準 | 適配軟管(") | 適配軟管 | 小頭螺紋外徑 |
| A(mm) | ||||
| LTCD-M06 | M14 x 1.5 | 3/16" | Ф6 | 13.4 |
| LTCD-M07 | M16 x 1.5 | 1/4" | Ф8 | 15.5 |
| LTCD-M08 | M16 x 1.5 | 5/16" | Ф10 | 15.0 |
| LTCD-M09 | M16 x 1.5 | 3/8" | Ф12 | 15.4 |
| LTCD-M10 | M20 x 1.5 | 3/8" | Ф12 | 19.4 |
| LTCD-M11 | M20 x 1.5 | 1/2" | Ф16 | 19.4 |
| LTCD-M12 | M25 x 1.5 | 3/4" | Ф20 | 24.4 |
| LTCD-M13 | M32 x 1.5 | 1" | Ф25 | 31.6 |
| LTCD-M14 | M40 x 1.5 | 1-1/4" | Ф32 | 39.4 |
| LTCD-M15 | M50 x 1.5 | 1-1/2" | Ф38 | 49.5 |
| LTCD-M16 | M63 x 1.5 | 2" | Ф51 | 62.5 |
| LTCD-M17 | M76 x 2.0 | 2-1/2" | Ф64 | 75.2 |
| LTCD-M18 | M88 x 2.0 | 3" | Ф75 | 87.3 |
| LTCD-M19 | M114 x 2.0 | 4" | Ф100 | 112.2 |
| 防水鋅合金直頭軟管連接器（美標/NPT) | Zinc Alloy Conduit Straight Connector | |||
| 材 質： | 鋅合金 | |||
| 防護等級： | IP67 | |||
| 鍍 層： | 鋅、鉻 | |||
| Materials: | Zinc Alloy | |||
| Protection Rating: | IP67 | |||
| Plating: | Zinc、Chrome | |||
| 型號 Part No. | 螺紋標準 | 適配軟管(") | 適配軟管 | 小頭螺紋外徑 |
| A(mm) | ||||
| LTCD-06 | NPT1/4" | 3/16" | Ф6 | 12.8 |
| LTCD-07 | NPT3/8" | 1/4" | Ф8 | 15.9 |
| LTCD-08 | NPT3/8" | 5/16" | Ф10 | 15.9 |
| LTCD-09 | NPT3/8" | 3/8" | Ф12 | 16.2 |
| LTCD-10 | NPT1/2" | 3/8" | Ф12 | 20.3 |
| LTCD-11 | NPT1/2" | 1/2" | Ф16 | 20.3 |
| LTCD-12 | NPT3/4" | 3/4" | Ф20 | 25.9 |
| LTCD-13 | NPT1" | 1" | Ф25 | 32.6 |
| LTCD-14 | NPT1-1/4" | 1-1/4" | Ф32 | 41.3 |
| LTCD-15 | NPT1-1/2" | 1-1/2" | Ф38 | 47.4 |
| LTCD-16 | NPT2" | 2" | Ф51 | 58.7 |
| LTCD-17 | NPT2-1/2" | 2-1/2" | Ф64 | 74.3 |
| LTCD-18 | NPT3" | 3" | Ф75 | 87.2 |
| LTCD-19 | NPT4" | 4" | Ф100 | 112.2 |
| 防水鋅合金直頭軟管連接器（英制/G) | Zinc Alloy Conduit Straight Connector | |||
| 材 質： | 鋅合金 | |||
| 防護等級： | IP67 | |||
| 鍍 層： | 鋅、鉻 | |||
| Materials: | Zinc Alloy | |||
| Protection Rating: | IP67 | |||
| Plating: | Zinc、Chrome | |||
| 型號 Part No. | 螺紋標準 | 適配軟管(") | 適配軟管 | 小頭螺紋外徑 |
| A(mm) | ||||
| LTCD-G06 | G1/4" | 3/16" | Ф6 | 12.8 |
| LTCD-G07 | G3/8" | 1/4" | Ф8 | 15.9 |
| LTCD-G08 | G3/8" | 5/16" | Ф10 | 15.9 |
| LTCD-G09 | G3/8" | 3/8" | Ф12 | 16.2 |
| LTCD-G10 | G1/2" | 3/8" | Ф12 | 20.3 |
| LTCD-G11 | G1/2" | 1/2" | Ф16 | 20.3 |
| LTCD-G12 | G3/4" | 3/4" | Ф20 | 25.9 |
| LTCD-G13 | G1" | 1" | Ф25 | 32.6 |
| LTCD-G14 | G1-1/4" | 1-1/4" | Ф32 | 41.3 |
| LTCD-G15 | G1-1/2" | 1-1/2" | Ф38 | 47.4 |
| LTCD-G16 | G2" | 2" | Ф51 | 58.7 |
| LTCD-G17 | G2-1/2" | 2-1/2" | Ф64 | 74.3 |
| LTCD-G18 | G3" | 3" | Ф75 | 87.2 |
| LTCD-G19 | G4" | 4" | Ф100 | 112.2 |
| 防水鋅合金90度彎頭軟管連接器（英制/G) | Zinc Alloy Conduit 90d Angle | |||
| 材 質： | 鋅合金 | |||
| 防護等級： | IP67 | |||
| 鍍 層： | 鋅、鉻 | |||
| Materials: | Zinc Alloy | |||
| Protection Rating: | IP67 | |||
| Plating: | Zinc、Chrome | |||
| 型號 Part No. | 螺紋標準 | 適配軟管(") | 適配軟管 | 小頭螺紋外徑 |
| A(mm) | ||||
| LTCD-G209 | G3/8" | 3/8" | Ф12 | 16.2 |
| LTCD-G20 | G1/2" | 3/8" | Ф12 | 20.3 |
| LTCD-G21 | G1/2" | 1/2" | Ф16 | 20.3 |
| LTCD-G22 | G3/4" | 3/4" | Ф20 | 25.9 |
| LTCD-G23 | G1" | 1" | Ф25 | 32.6 |
| LTCD-G24 | G1-1/4" | 1-1/4" | Ф32 | 41.3 |
| LTCD-G25 | G1-1/2" | 1-1/2" | Ф38 | 47.4 |
| LTCD-G26 | G2" | 2" | Ф51 | 58.7 |
| 防水鋅合金45度彎頭軟管連接器（英制/G) | Zinc Alloy Conduit 45d Angle | |||
| 材 質： | 鋅合金 | |||
| 防護等級： | IP67 | |||
| 鍍 層： | 鋅、鉻 | |||
| Materials: | Zinc Alloy | |||
| Protection Rating: | IP67 | |||
| Plating: | Zinc、Chrome | |||
| 型號 Part No. | 螺紋標準 | 適配軟管(") | 適配軟管 | 小頭螺紋外徑 |
| A(mm) | ||||
| LTCD-G309 | G3/8" | 3/8" | Ф12 | 16.2 |
| LTCD-G30 | G1/2" | 3/8" | Ф12 | 20.3 |
| LTCD-G31 | G1/2" | 1/2" | Ф16 | 20.3 |
| LTCD-G32 | G3/4" | 3/4" | Ф20 | 25.9 |
| LTCD-G33 | G1" | 1" | Ф25 | 32.6 |
| LTCD-G34 | G1-1/4" | 1-1/4" | Ф32 | 41.3 |
| LTCD-G35 | G1-1/2" | 1-1/2" | Ф38 | 47.4 |
| LTCD-G36 | G2" | 2" | Ф51 | 58.7 |
標簽：
金屬接頭
金屬接頭
成都市金屬接頭
成都市金屬接頭廠家
￥14.25
￥17.17
金屬接頭廠家 為您推薦
鋅合金彎頭|
不銹鋼彎頭接頭|
彎頭不銹鋼彎頭|
接頭彎頭|
銅彎頭|
合金彎頭|
金屬彎頭|
不銹鋼彎頭304|
不銹鋼大彎頭|
90彎頭不銹鋼|
不銹鋼彎頭直角|
定做不銹鋼彎頭|
不銹鋼彎頭加工|
不銹鋼彎頭80|
金屬接頭鐵銅不銹鋼鋅合金直頭彎頭供應商
|金屬接頭鐵銅不銹鋼鋅合金直頭彎頭圖片
|瓶罐味采購批發
|瓶滾珠采購批發
|瓶黑胡椒粉采購批發
|瓶紅牛采購批發
|瓶蝴蝶采購批發
|瓶花茶采購批發
|瓶化妝品采購批發
|瓶黃酒采購批發
金屬接頭廠家
企業誠信檔案
成都市一洋五金有限公司
11年
VIP會員
營業執照
法人身份
手機認證
證書2張
商鋪11年
注冊資金：100萬-500萬
聯系人：李女士
固話：022-66282963
移動手機：15122292655
企業地址：四川 成都市 金牛區
產品分類
最新產品
機床包塑金屬軟管 平包管 穿線管...
￥4.16
PVC包塑金屬軟管，嵌入棉線平包...
￥10.03
EMT鎖接，簡易接頭，金屬接頭，...
￥0.60
成都一洋五金廠家供應鋅合金WBG...
￥1.85
成都廠家供應 UL型金屬軟管 U...
￥2.12
