一、產品簡介

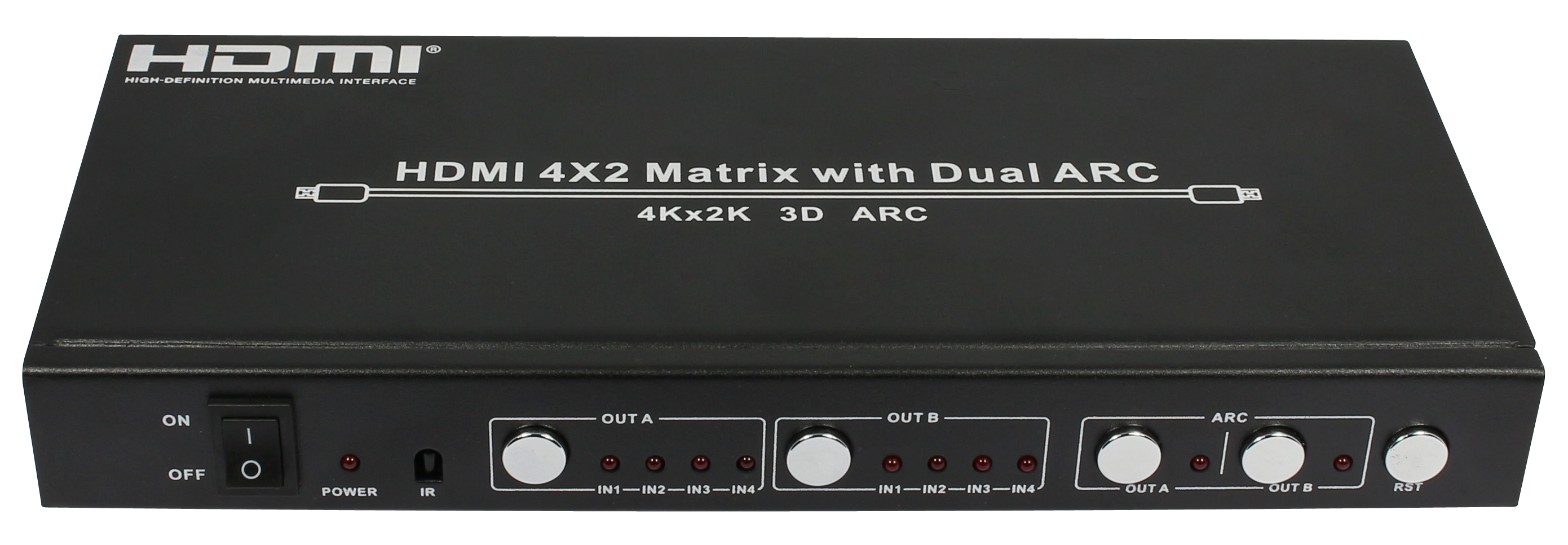

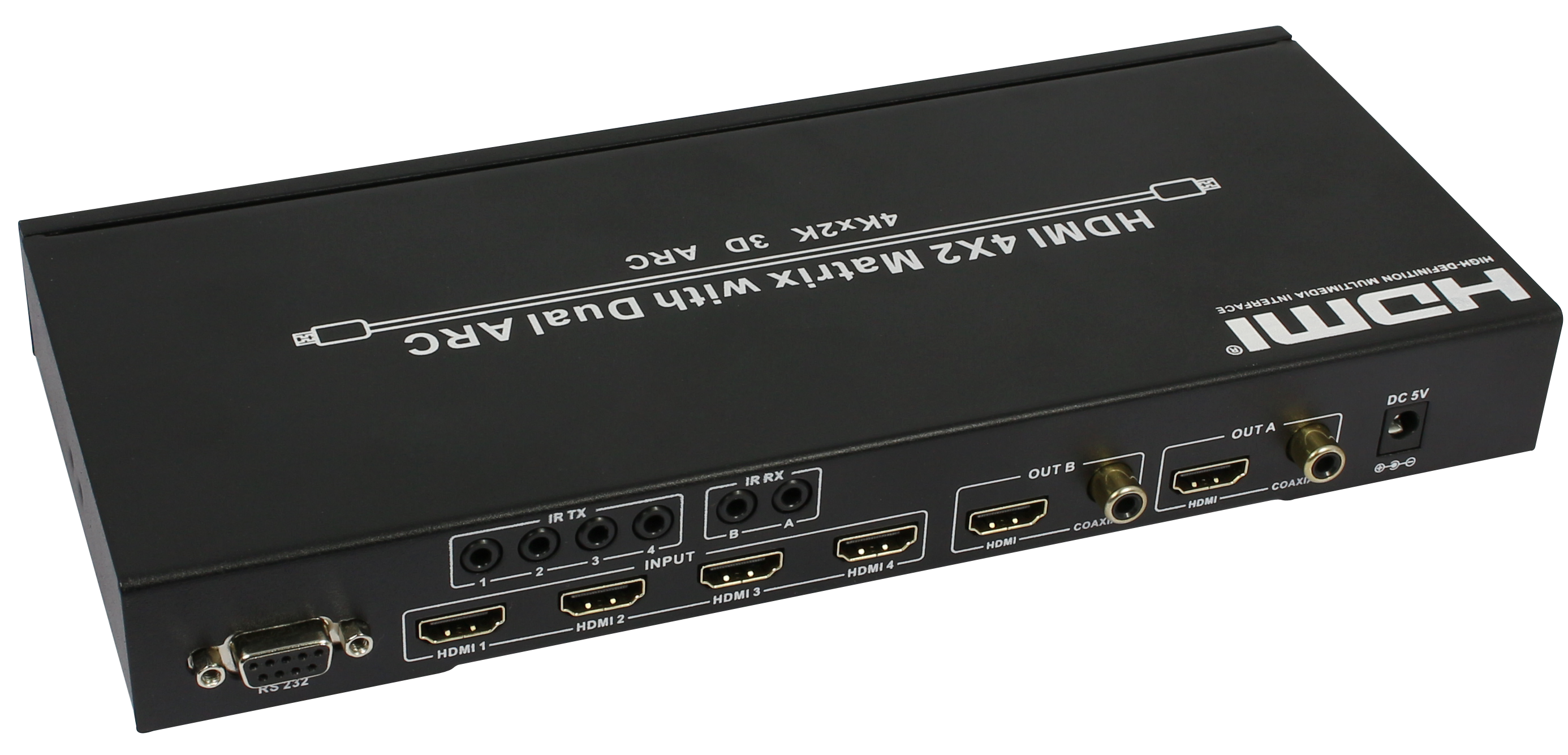

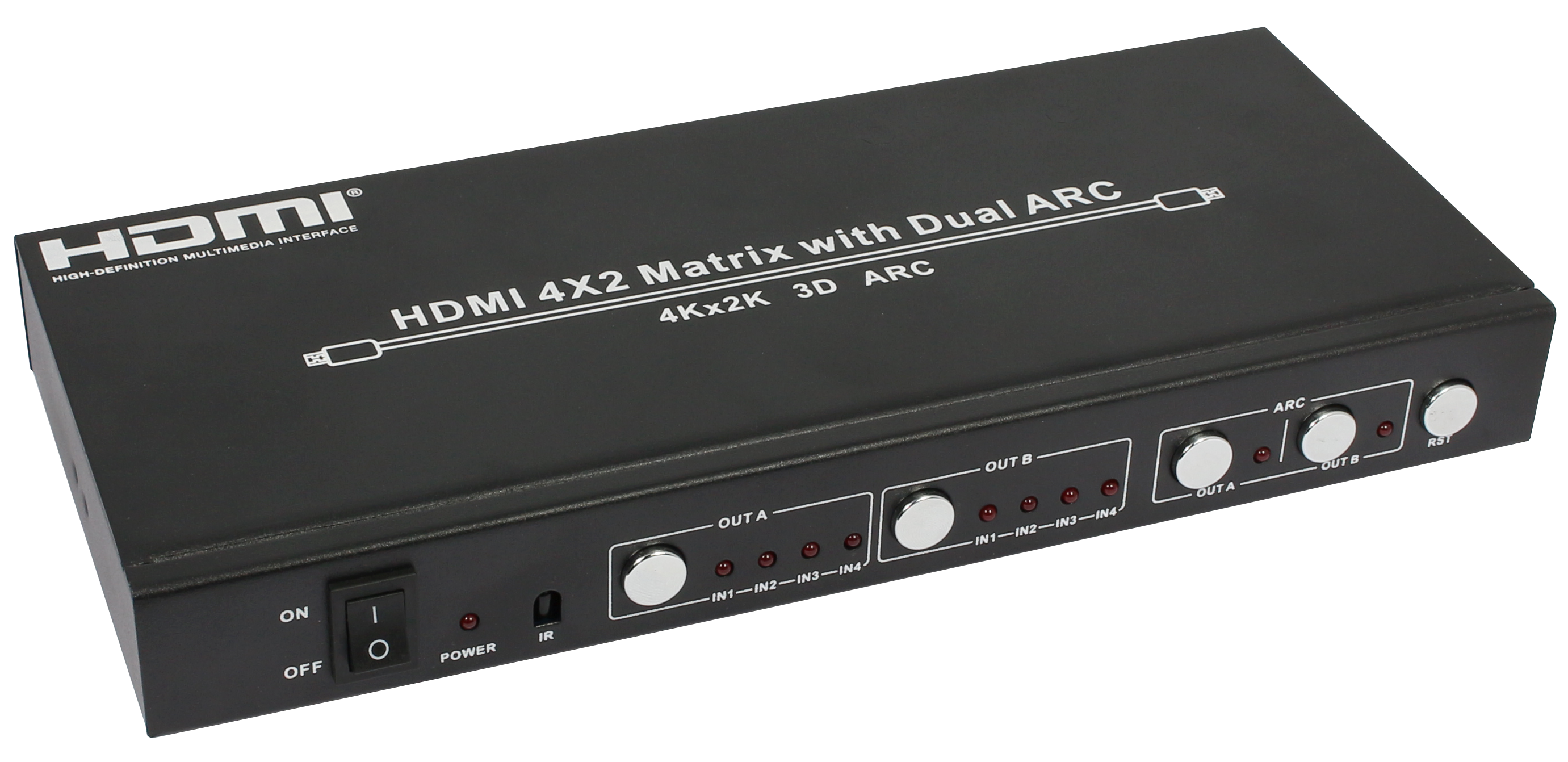

             HDM-942U是一款高性能的四進二出HDMI矩陣，同時支持兩路音頻分離（同軸輸出），兩路ARC功能，同時該矩陣帶IR矩陣功能，可以讓用戶在顯示端自由控制源端信號源，通過RS232接口可控制矩陣本身，包括通道切換，ARC功能打開關閉，實現四路HDMI輸入單獨EDID功能。該矩陣控制方式多樣靈活，可通過前面板按鈕控制、本地IR控制、接收板IR控制，RS232控制。

1. Ioduction

This is a high performance HDMI Matrix with four HDMI inputs & two outputs, it allows any source (Blue-Ray player, HD DVD player, satellite receiver, game system, etc.) to be shown on the any of the two displays simultaneously, and supports 4K×2K, 3D, 12-bit Deep Color. With its 3Gbps bandwidth and the additional features of the latest HDMI standards you can be sure of great HDMI distribution. It support dual ARC and wide band IR extend fuciton also.

2. Feature

? Compliant with HDMI 1.4,HDCP 1.4

? Supports multiplexed HDMI 4-input and 2-output

? Supports video format up to 4k2k@30Hz with 24bit RGB/YcbCR 4:4:4/YCBCR 4:2:2,and up to 4k2k@60Hz with 12bit YCBCR 4:2:0.

? Deep Color support 48/36/30/24-bit

? Supports reception of any audio data conforming to the HDMI specification such PCM at up to 192kHz,compressed audio(IEC 61937),DSD,DST,DTS and HBR.

? Supports Dual ARC cool

? Super wideband IR cool system, IR transport channel can be forward or backward.

? Supports button,IR,RS232 etc various coolled ways；

3. Package Contents

? 4x2 HDMI Matrix            1pcs

? 5V/1A DC power adaptor     1pcs

? Remote Cool             1pcs

? Operation Manual           1pcs

? Wideband IR Tx             4pcs

? Wideband IR Rx             2pcs

? RS232 Cable                1pcs

4. Specification

Video Bandwidth 297MHz/2.97 Gbps

Input Ports 4 × HDMI (Female type)

Output Ports          2 × HDMI (Female type)

Output Resolution 480i ~1080p50/60, 4Kx2K@24/30, VGA~UXGA

HDMI Cable In 1080p/12bits (15m)

HDMI Cable Out 1080p/12bits (15m)

ESD Protection Human Body model: ±8 kV (air-gap discharge)

±4 kV (contact discharge)
