供應研華AEC-6876B工控機
廣州市研華工控機廠家
郵箱：
手機：
- 品牌： ADVANTECH/研華
- 型號： AEC-6876B
- 設備類型： 控制臺
- 外形尺寸： 208x 102x 238（mm）
- OEM： 不可OEM
- 質保： 一年

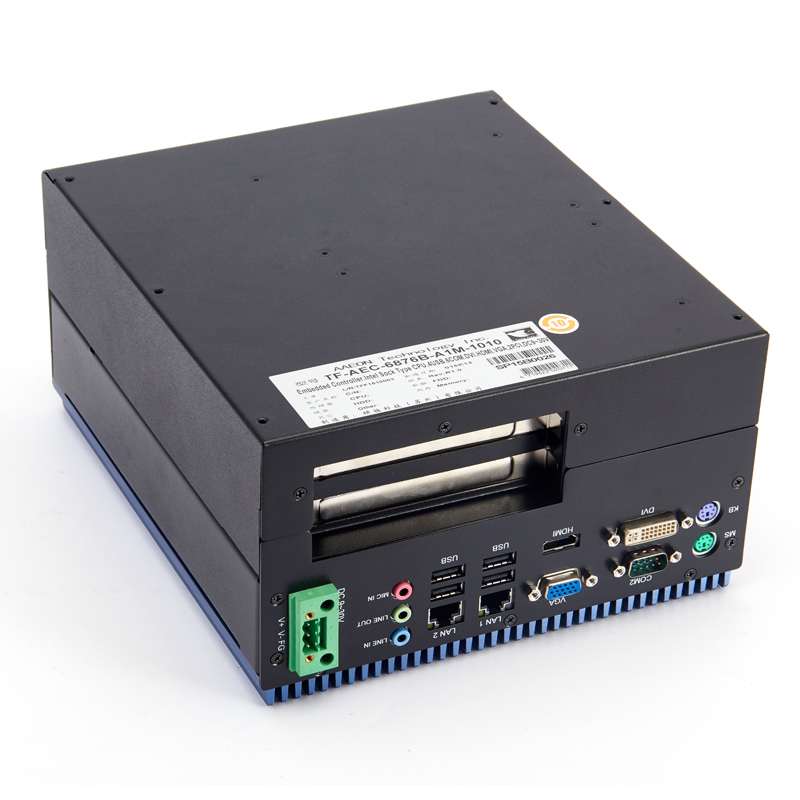

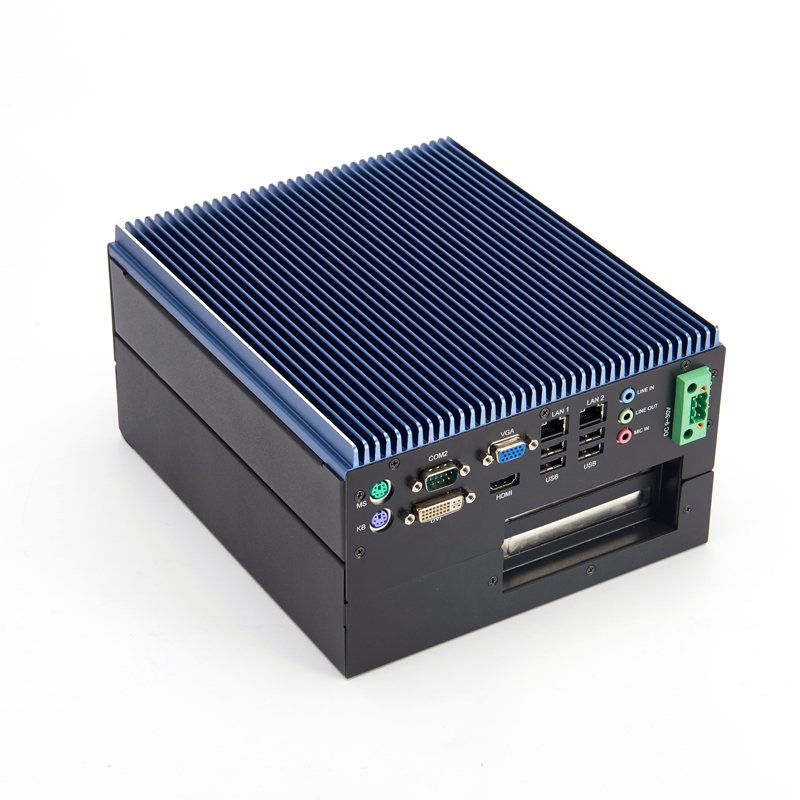

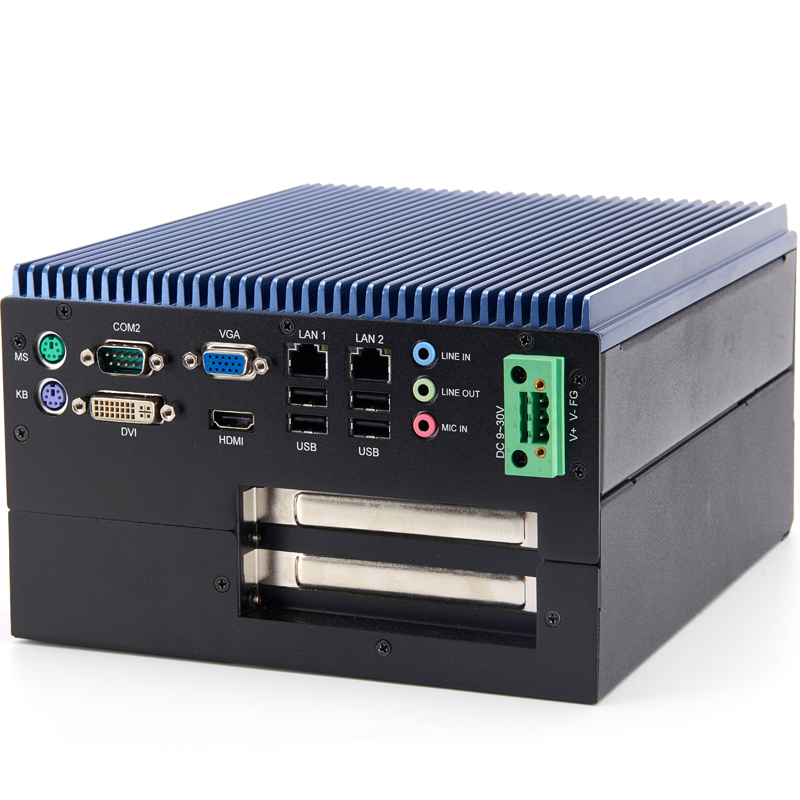

研華AEC-6876B無風扇嵌入式電腦工業計算機工控機
特性：
Intel? Core?i7/ i5/ i3/ Celeron? Processor
DDR3 SODIMM x 2, Supports DDR3 1066/1333, Max. 16 GB
Intel? QM67 Chipset
Gigabit Ethernet x 2
Intel? Integrated Graphics Engine Supports Dual View by VGA, DVI, HDMI, LVDS
COM x 6
PCI x 2
AAEON’s Hi-Safe & Hi-Manager Support (i5/i7 CPU Only)
產品規格：
| CPU | Intel? Core?-i7/ i5/ i3 Celeron? Processor | |||
| Chipset | Intel? QM67 | |||
| System Memory | DDR3 1066/1333 MHz SODIMM x 2, up to 16 GB | |||
| Display Interface | VGA | DB-15 x 1 | ||
|
| DVI | DVI-D x 1 | ||
|
| HDMI | HDMI x 1, support 1920 x 1080 @ 60 Hz | ||
|
| Others | -- | ||
| Storage Device | SSD | CFast?slot | ||
|
| HDD | SATA 6.0 Gb/s x 1 (SATA 0, 2) | ||
| Network | LAN | Gigabit Ethernet, RJ-45 x 2 | ||
|
| Wireless | Optional by mini-card | ||
| Front I/O | USB Host |
| ||
|
| LAN |
| ||
|
| Serial Port | RS-232 x 5 | ||
|
| DIO |
| ||
|
| Audio |
| ||
|
| KB/MS |
| ||
|
| Others | Power button x 1 | ||
| Rear I/O | USB Host | USB2.0 x 4 | ||
|
| LAN | RJ-45 x 2 | ||
|
| Serial Port | RS-232/422/485 x 1 | ||
|
| DIO | -- | ||
|
| Audio | Mic-in, Line-in, Line-out | ||
|
| KB/MS | PS/2 KBx 1+MS x 1 | ||
|
| Others | Power input x 1 | ||
| Expansion | PCIe [x4] | -- | ||
|
| PCI | 2 (optional) | ||
|
| Mini-Card | 1 | ||
|
| Mini PCI | -- | ||
|
| Others | -- | ||
| Indicator | Front | Power LED x 1, Hard Disk Drive active LED x 1 | ||
|
| Rear | -- | ||
| Power Requirement | DC-in 12V, with DC jack lockable, DC 9 ~ 30V with 3-pin terminal block | |||
| Power Consumption | Intel? Core?i7-2710QE 3.02A@19V(57.38W) without USB Log | |||
| System Cooling | Passive Cooling | |||
| Mounting | Wallmount | |||
| Operating Temperature | No Airflow 32°F ~ 122°F (0°C ~ 50°C) Wide Temperature CFD with WT RAM x 2 | Ambient with Airflow 5°F ~ 131°F (-15°C ~ 55°C) Wide Temperature CFD with WT RAM x 2 | ||
| Storage Temperature | -4°F ~ 158°F (-20°C ~ 70°C) | |||
| Anti-Vibration | 5 g rms/ 5 ~ 500Hz/ operation–CFD 1 g rms/ 5~ 500Hz/ operation–HDD | |||
| Anti-Shock | 50 G peak acceleration (11 msec. duration)–CFD 20 G peak acceleration (11 msec. duration)–HDD | |||
| MTBF (Hours) | 50,000 | |||
| Certification | EMC | CE/FCC class A | ||
|
| Safety | -- | ||
| Dimension (W x H x D) | 8.19"(W) x 4.02"(H) x 9.37"(D) (208mmx 102mm x 238mm) | |||
| Gross Weight | 13.2 lb (6 Kg) | |||
| Note | Window? XP Embedded, Windows? 7 32/64-bit, WES 2009, WES 7 32/64-bit, Linux Fedora 14/ Kernel 2.6.35.3 | |||
