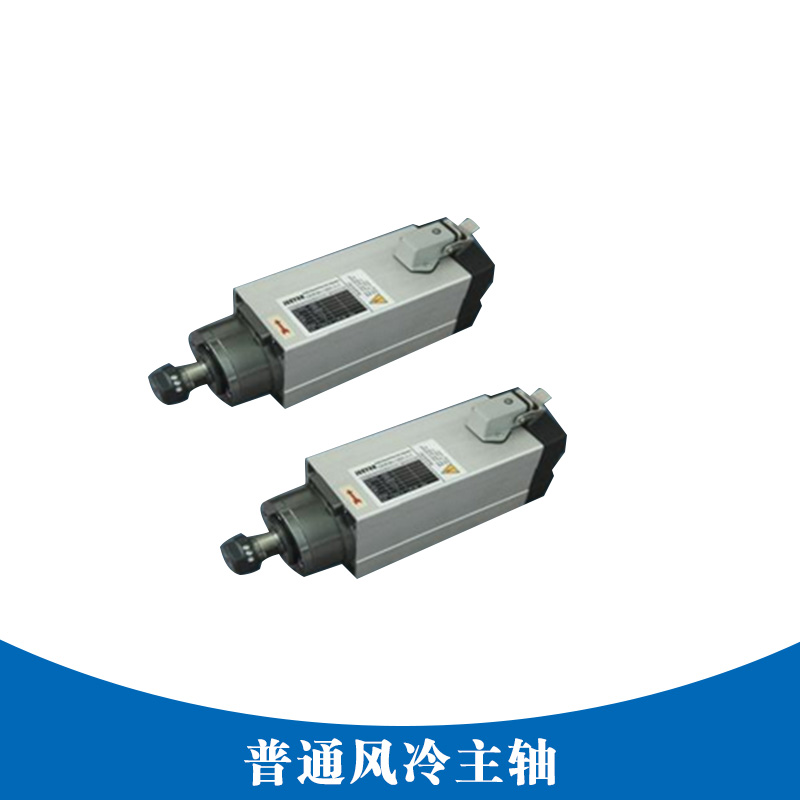

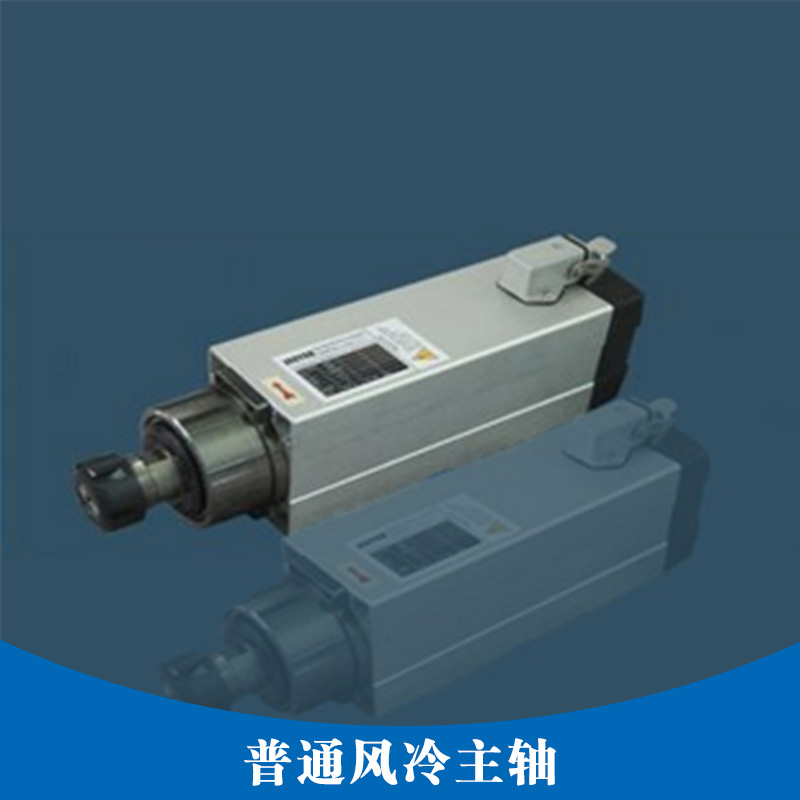

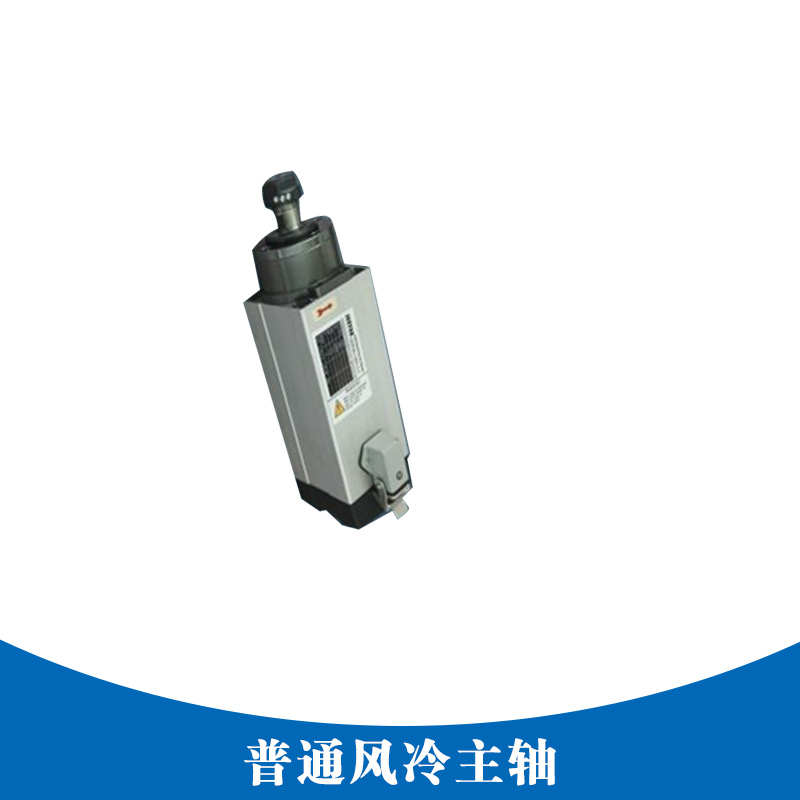

普通風冷主軸 高速風冷主軸電機 風冷主軸 雕刻機風冷主軸

HNSD/翰世達風冷電主軸：
 3.5kw/4.5kw/6.0kw/7.5kw

主軸的使用注意事項：notes on using the spindles
1 嚴格按外形圖指示位置裝夾電主軸：電主軸的裝夾位置應避開軸承位，在前后軸承之間的定子部位夾緊，夾緊力不宜過大，電主軸裝入機座內不得松動。
Please clamping motorized spindle in accordance with the outline drawing indicating location strictly. The clamping ition of spindle should oid bearing , the stator parts which between the front and rear bearing need to be clamped, clamping force should not be too large, spindle should not be loosed when loaded within the frame.
2除頻率及功能匹配外，變頻器的額定輸出電壓要和電主軸匹配，變頻器的額定電流要比電主軸的額定電流略大（一般是1.5-2倍）。嚴格按電主軸V-F曲線設置變頻器各項參數，如設置不正確，會燒毀電主軸。
In addition to matching the frequency and functions, the inverter rated output voltage need to match with electric spindle’s. The rated current of the inverter rated current are slightly larger than the spindle (usually 1.5-2 times). Please set the parameters in strict accordance with the drive spindle VF curve. If the settings are incorrect, it will burn the spindle.
3嚴禁在無冷卻的條件下使用水冷電主軸，冷卻水量按1升/千瓦分鐘計算，冷卻水量流量不小于5升/分鐘，冷卻水管不能有急彎堵塞現象，且水嘴連接必須可靠，不泄露。
Prohibited using water-cooled spindle under the conditions in the absence of water-cooled. If the cooling water is count by at 1 liter / kW minute, the minimum amount of cooling water flow rate is not less than 5 l / min.The cooling water pipe can not have sharp bends clogging, and tap connections must be reliable, not leak .


4冷卻液必須清潔，無油膩，溫度控制在5-3℃。若環境溫度高于30℃，冷卻介質必須強制制冷。精密加工機床要求冷卻液恒溫20±2℃。
Coolant must be clean, non-greasy, and temperature coolled should be at 5-3 ℃. If the ambient temperature is above 30 ℃, the cooling medium must be forced cooling. Precision machine tools required coolant temperature 20 ± 2 ℃.


5主軸通氣必須確保潔凈、干燥?？諌簷C(jī)要經常排水，在使用氣封及其它通氣情況下，氣源須經油水分離器、干燥過濾器方可使用，氣封氣壓在0.2-0.25Mpa，過濾精度5μm，氣缸及換刀除塵氣壓在0.45-0.65Mpa，
否則會造成軸承及氣缸內部元件的損壞。
Ventilation shaft should be clean and dry. The air compressor need to drain often .In the use of ventilation air sealing and other es, the gas supply shall be oil-water separator, filter drier before use. The air sealing pressure should be at 0.2-0.25Mpa, filtering accuracy 5μm, cylinders and dust removal tool pressure in the 0.45-0.65Mpa,
Otherwise it will cause bearings and cylinder damage internal components.
6、電主軸裝夾時，不能使用蠻力，必須將筒夾、壓帽、刀柄、內錐孔及軸端螺紋處清洗干凈，以免影響精度，造成內錐孔及筒夾錐面磨損，轉軸螺紋和壓帽滑扣，插入筒夾必須大于15毫米。
When clamping tool, you can not use brute force. And the collet, pressure cap, handle, bore taper and the threads，all of these need to be cleaned, so as not to affect the accuracy, resulting taper and collet cone wear, slidering shaft thread and pressure cap, and tool insert collet must be greater than 15 mm.


7、主軸壓帽是經過動平衡修正過的零件，請勿隨意更換。主軸運轉前，切削必須被確定鎖緊或鎖用的壓帽必須被取下。
Spindle pressure cap is a corrected part through dynamic balancing .Please do not replace it optionally. Before the spindle running , please be sure that the cutting tool are locked or the pressure cap must be removed


8每天開始工作時，電主軸要從低速到高速運行的原則，逐步升速預熱，當達到所需轉速且空載運轉平穩、溫度冷卻后再進行加工，這樣才能保證較好的加工精度及使用壽命。電主軸在長期保存過程中應至少在一星期內開機低速運行15-30分鐘。
In accordance with the speed operation principle from low to high, spindle need to increases the speed gradually in the aim of making the bearing warm-up when begin to work each time. When achieving the desired speed, smooth no-load operation and temperature, you can carry on the processing , so as to ensure better processing accuracy and the use of life. Spindle in the long-term preservation process should start at low speed for 15-30 minutes a week at least.
9、電主軸必須按指示方向運轉。
The direction of the spindle must be running as instruction.


10、使用工件切削液時，一定要將切削液沖在切削部位，只有這樣才能起到對和工件的冷卻作用，嚴謹將切削液沖在壓帽及以上位置。
Please be sure to punch cutting fluid in cutting tool parts. Only in this way, it can play on the cooling effect of the tool and the workpiece. No cutting fluid splash the pressure cap and the above locations.


11、嚴禁使用刀刃磨損的進行加工。磨損后仍繼續使用，會加大電主軸軸向力，導致軸承受損，而且還會影響雕刻的精度及效果。
Do not use the blade worn tool for processing. Continued to use of tool wear, spindle axial force will be increase, leg to bearing damage, but will also affect the accuracy and effectiveness of engring.


12、卸刀時嚴謹敲打筒夾及刀頭。運輸、保管及使用中嚴謹磕碰、敲擊、撞擊電主軸軸端。
No beating the collet and cutter head in the process of  unlog knife. No bumping, peening, striking the shaft end during the process of transporting, storing and using.


13、使用水（油）冷機進行冷卻的用戶溫度必須控制在22℃-25℃。
The temperature must be coolled during 22 ℃ -25 ℃ when you use water  cooler or oil cooler for cooling.


14、一日12小時以上連續加工，宜讓電主軸停機1小時以上，以便恢復機械疲勞，從而延長使用壽命。
Continuous processing more than 12 hours a day, you should let motorized spindle be in halt mode more than1 hour in order to restore the mechanical fatigue, and prolong service life
15、電主軸在每次使用完畢后，應即時將切削液自自主軸上干凈，并以防銹油擦拭主軸內孔及刀把柄部，以避免生銹。再次使用須防銹油。
After using the spindle each time, cutting fluid should be immediately cleaned from the independent axis, and wipe anti-rust oil on spindle bore and knife handle portion to oid rusting. Clear the anti-rust oil when it is used next time.


16、主軸異常或故障時，應及時與主軸制造商聯系，請勿自行拆解主軸，否則責任自負。
Spindle is abnormal or out of order, you should contact the manufacturer of the spindle promptly. Do not disassemble, otherwise at your own risk.
