瑞士TEXTEST FX3180全自動(dòng)透濕量測(cè)試儀

FX3180全自動(dòng)透濕量測(cè)試儀

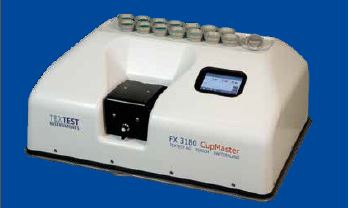

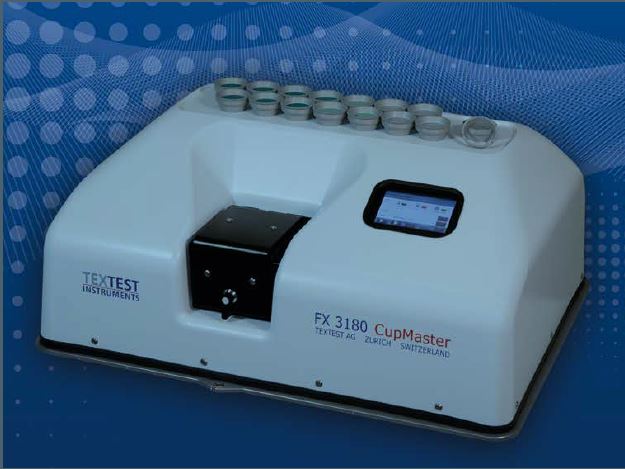

The FX3180 CupMaster determines the Water Vapor Transmission Rate of up to 15 samples
simultaneously and fully automatically, using the grimetric measuring principle. The instrument
complies with ASTM E 96, ASTM D 1653, BS 3424-34, DIN 53122, EN 1931, GB 1037, GB/T
12704, ISO 2528, ISO 12572, JIS L 1099-A, JIS Z 0208, and many other Standard Test Methods.

Technical specifications FX 3180 CupMaster
Test area: Model FX 3180-CM12: 50 cm?
Model FX 3180-CM15: 28.3 or 30 cm?
Number of samples: Model FX 3180-CM12: 12
Model FX 3180-CM15: 15
Maximum sample thickness: 3 mm (thicker samples require special cups)
Measuring range of the weighing module: 0 to 220 g
Resolution of the weighing module: 0.0001 g
Temperature range: 10 °C below ambient to 40 °C
Humidity range: At 23 °C: 40 to 90 % r.h.
At 38 °C: 20 to 90 % r.h.
Air velocity: 0.02 to 4.0 m/s
Measuring accuracy: Temperature: Better than ±0.5 °C
Humidity: Better than ±1.5 % r.h.
Dimensions (w x d x h): 120 x 80 x 60 cm
Compressed air: 5 to 8 bar
Net weight: 109 kg
Power requirements: 230 VAC or 100/115 VAC, 50 - 60 Hz, 1 kW
