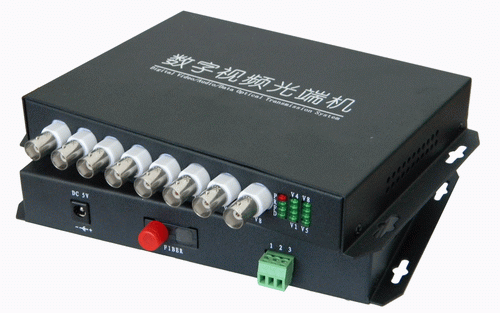

網絡工程MVO-3VAU1 MVO-3HU1 LVO-1PVA1 LVO-1PDA1

VGA視頻光端機VGA Fiber Optical Transmission Instruction Manual

型號例表：

感謝您購買了本公司的產品，我們公司始終以質量和服務拓展市場，以忠誠守信和客戶合作，您的滿意就是我們公司的成功。

為了方便正確地使用本產品，在使用前請仔細閱讀說明書。

產品介紹

本產品由發送器(標有Extender Sender字樣)和接收器（標有Extender

Receiver字樣）組成，能通過單芯/雙芯光纖把計算機主機的音頻，視頻，鍵盤，鼠標，接口延長到遠端，用戶可以在遠端實時收聽到電腦主機的圖像和聲音并使用電腦。同時在電腦主機的近端，也提供了一個VGA接口，用戶也可以在近端使用計算機。本產品系列有16個型號（見例表）。

本產品支持VGA/DVI高清音視頻的實時傳輸，分辨率為：920×1080@60Hz，傳輸距離可達2千米(多模)/20千米(單模)。產品可應用在軍事指揮與控制、 公安指揮與控制、交警交通管理、能源電力供應行業、部門、醫療系統、商業展示、多媒體功能廳、 公用事業等領域。

產品特點

1，支持分辨率高達1920×1080@60Hz。

2，光纖傳輸距離可達2000米(多模)，光纖傳輸距離可達20千米(單模)。

3，單根光纖傳輸，純硬件設計，無需驅動、兼容任何系統，即插即用。

4，設備支持VGA、PS2口、audio、MIC接口。

產品規格

.貨物清單

在您打開產品包裝后，應該清點物品，如有遺失請與經銷商聯系，物品清單如下：

兩條VGA轉DVI延伸線

一條音頻線

一條或兩條2米長光纖測試跳線

一條USB數據線（制帶PS2的光端機）

兩個5V/3A電源適配器

一條MIC線  （可選）

一本使用說明書

光端機發送器

光端機接收器

安裝調試

安裝步驟

請檢查一下線材是否齊全，把主機關閉狀態，光纖是否為SC的接口，然后開始進行安裝調試：

先用VGA轉DVI的線把主機和發送器的視頻接口連接。

用USB線把主機的USB口和發送器的MINI USB口連接。

用音頻線分別把主機上AUDIO端口和發送器的端口連接，注意電腦的音頻輸出接本機的AUDIO IN。

把兩芯光纖頭插入發送器上標有TX和RX的兩個端口里，再把光纖的另一頭交叉插在接收器上RX和TX端口上。

再把接收器和相應的外接設備依次連接，最后把DC 5V電源插上后，打開主機，即可正常使用。

設備支持分辨率

指示燈說明

發送器

Status：點亮閃爍表示數據在正常交換

Power：點亮表示電源正常

TX+RX：點亮表示光纖數據暢通

2，接收器

Status：點亮閃爍表示數據在正常交換

Power：點亮表示電源正常

TX+RX：點亮表示光纖數據暢通

注意事項

發送端的REMOTE COOL撥碼開關用來控制遠端的鍵盤鼠標，在OFF狀態則可以關閉遠端的鍵盤鼠標。

發送端的USB口用來控制鼠標，如果用戶無需鍵盤鼠標則可以不連接此USB線。

發送端的AUDIO IN用來連接聲音源，如果用戶無需聲音，則可以不連此音頻線。

TEST接口用于出廠調試，用戶不可用來使用，請注意。

故障檢修

保修及售后服務

感謝您使用本公司的產品，現在您已擁有本產品終身保用的權利。

1，我們的承諾

一年內屬本產品質量問題，免費保修。

提供終身維修服務。用戶自行拆機，不在本保修范圍內。

使用不當或人為損壞，摔壞等非質量問題造成的損壞，不屬免費保修。

售后注意事項

當本機出現質量問題時，請與各地分銷商聯系維修事宜。

如無法立刻聯系到分銷商，請直接和本公司聯系，我公司將以最快的速度給您處理維修事宜。

請用戶提供已填寫妥當?shù)谋Ｐ蘅ê唾?gòu)買票據，進行維修

保修卡

Item Number list:

Thank you for buying our products! And we always adhere to the principle of “Providing the best product and best service to our customers and your satisfaction is our success!”

And in order to use the product correctly, please make sure you read this instruction clearly.

Product ioduction

This set of Equipment includes a sender and a receiver, and it can extend video, audio, keyboard, mouse through single or dual-core Fiber optical cable at real-time, so that user can use and cool computer far away from host computer. Besides, it provides a VGA port on the sender part, so that user also can use the computer locally. And there are 16 item numbers for user’s selection under this group. Also the sender part can be used as a DVI to VGA converter.

      This equipment supports high resolution transmission at real time, and max at1920×1080@60Hz，and max transmission distance is2KM(multimode)/20KM(single-mode)。

It is widely used in military, Police, transportation, , medical care, commercial presentation, and multimedia fields etc.

Product feature

1，Resolution support max up to 1920×1080@60Hz

2，Max transmission distance is 2000meters (MM)/20KM(SM)

3, Single Fiber optical cable transmission, pure hardware design, no software needed, compatible with any operation system, support plug and play.

4，Support VGA、PS2、audio etc., Support remote switch on/off computer

Product Specification

.Packaging Instruction

When you open the packaging, please check the contents as the list bellow, if there’s anything missing, please contact the reseller directly:

VGA to DVI cable 2 pc

Audio cable 1 pc

Fiber optical testing cable(2m) 1OR2 pc

USB data cable 1 pc

5V/3Apower adaptor 2 pc

MIC cable 1 pc （selective）

Instruction manual

A sender

A receiver

Installation

Installation steps

Make sure all the equipments and cables needed are prepared, and make sure that the PC is power off and fiber cable connector is SC/FC type, and then follow the steps bellow:

connect the computer to sender with VGA/DVI cable

connect the USBportofPCto mini USB port pf sender with USB data cable

connect  Audio output port of computer to Audio input port of sender with Audio cable

Insert one side of the fiber cable into “TX” AND “RX” port separately, then insert the other side of fiber cable into “RX” and “TX” port of receiver separately, note that this is cross insertion, ie “TX” of sender should match “RX” of receiver.

then connect the receiver to the equipments that needed by user, finally, install the power adaptor of sender and receiver, then switch on the PC.

Resolution Support

LED indicator instruction

Sender

Status：LED flashes showing that data is in normal transmission and exchange

Power：lighting on, showing the status of power supply.

TX+RX：means Fiber data transmission is normal

2，Receiver

Status：LED flashes showing that data is in normal transmission and exchange

Power：lighting on, showing the status of power supply.

TX+RX：means Fiber data transmission is normal

Notes:

REMOTE COOL setting button of sender is used to cool the remote keyboard and mouse, can switch off the remote keyboard and mouse when it’s OFF

USB connector pf sender is used to cool mouse, if user does not need the mouse, then no need to connect this USB cable

的AUDIO IN of sender part is used to connect the audio source equipment, if not needed, then do not connect them

 TEST interface is used only for testing by manufacturer only, and user should never use it, please note this!

Trouble Shooting

Warranty and after sale service

Thanks again for buying our product, and the product you bought enjoys lifetime warranty.

1，Our promises:

Provide repair and maintenance service free of charge for 1 year starts from your purchasing date if it is defectiveness of product itself.

Provide lifetime repair service

it is not within this scope if user dismantles the equipment by themselves; If the damage is caused by un-proper use or by man-made reasons which is not quality problem, then it is not within the free repair service

2，Notes:

If you meet quality problem, please contact the reseller for solutions.

If you can not get contact with reseller, please contact with us directly, we will solve the problem as fast as we can.

Please fill the warranty card bellow for repair service

Warranty card
