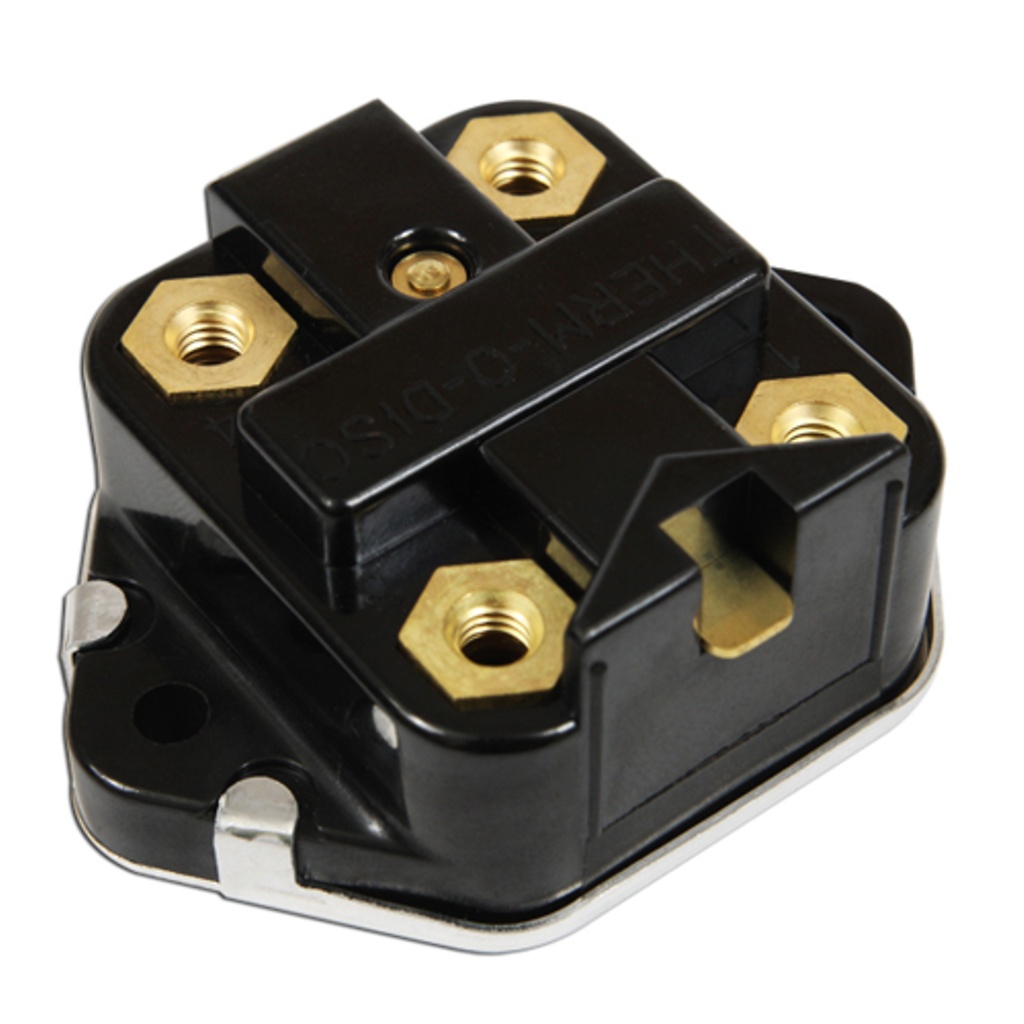

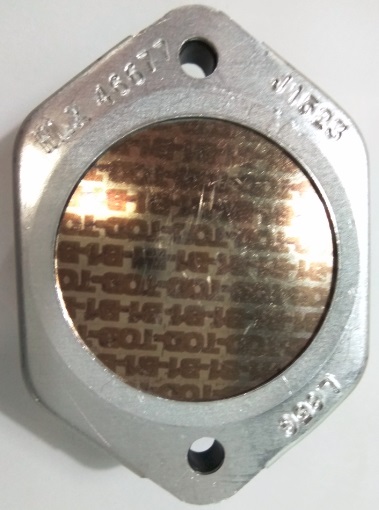

商用電熱鍋爐超溫保護熱切斷器THERM-O-DISC生產的HLX系列

MANUAL RESET LIMIT COOL-HLX（手動復位極限保護溫控器-HLX系列）


The HL series manual reset limit cool from Therm–O–Disc? offers a time – proven, robust manual reset package that is capable of handling electrical loads up to 50 amps at 480VAC. Originally designed as a limit for electric water heating applications,the HL/HLX series carries UL / CSA recognition and is commonly used today in electric heating or specialty applications that require it’:s high current and voltage handling capability.
（HL系列手動重置極限控制從Therm-O-Disc?提供了一個時間,證明,健壯的手動復位方案能夠處理電器負載50安培480 vac。設計作為電加熱水的限制應用程序）


Double-Pole Single Throw(雙刀單擲）
-Accepted industry standard for domestic electric heater overtemperature protection.(滿足電加熱器超溫保護的行業標準）
-U.L and C.S.A recognized(UL和CSA認證）


OPERATING TEMPERATURES-Can be calibrated to operate at any temperature up to 300℉. Normal differentials between opening and closing range  from 40℉ to 70℉,depending  on the top operating temperature.【工作溫度--標定溫度可達300℉（148.8℃）。標準溫差范圍是40℉-70℉】




ELECTRICAL RATINGS（Each Circuit）（電氣負載）
Terminal 1 & 2--Circuit#1
Terminal 3 & 4--Circuit#2


Resistive Load（電阻性負載）:
Maximum calibration temperature（標定溫度） 300°F (148.8°C）
Maximum calibration temperature 480 V/50 amps For calibration up to 300°F (148.8°C)
Maximum CSA agency rating 600/25 amps/6000 cycles For cal. up to 300°F (121°C)


Motor Load(電感性負載）:
4.6 F.L.A.at 115 volts AC
2.3 F.L.A.at 230 volts AC


Pilot Duty:
125 volt-amperes at 115/230VAC


APPLICATIONS（應用）
Electric Water Heaters(電熱水器）
Portable Electric Heaters(便攜式電熱器）
Industrial Electric Heaters(工業電加熱器）
Hot and Cold Vending Machines（熱冷飲自動售貨機）
Miscellaneous Applications(各種應用）
