供應電動車電池組合點焊機氣動點焊

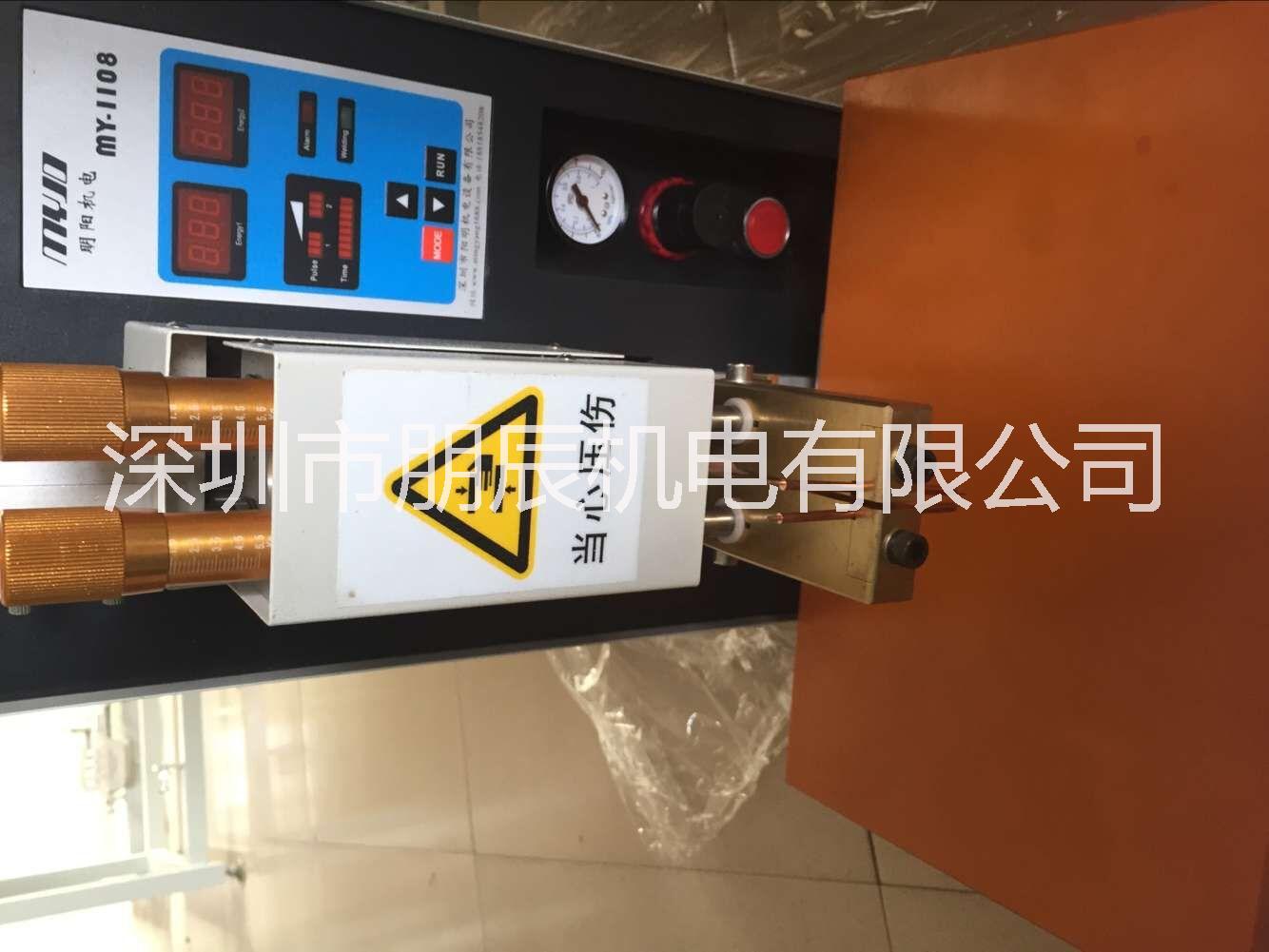

MY-1108微電腦雙脈沖精密點焊機參數與性能

MY-1108microcomputer double pulse parameters and the performance of precision spot welder

輸出功率 18KVA

Output powerOutput power:18KVA

輸出瞬間電流 2800A

The output instantaneous current:2800A

放電時間最長20ms

Discharge for the longest time:20ms

焊接次數 約280次/分

Welding times about;280BPM

焊接控制 補充式

Welding cool supplement type

預焊脈沖數（） 0-3波

The number of pre pulse welding (max) 0-3 we

焊接脈沖數（） 0-3波

Welding pulses (max) 0-3 we

焊接能量調節 0-999

Regulation of 0-999 welding energy

自動焊接補償率 +40v、-50v

Welding compensation rate +40v、-50v

二級加壓時間 0.秒*10

后加壓時間 0.01-0.99秒

After the pressure of time 0.01-0.99 seconds

焊接形程                  30mm  焊接高度隨意可調

The welding process of 30mm shape welding height can be adjusted

整機重量                  48KG

The whole weight of 48KG

外形尺寸                  500×240×400mm氣動機型尺寸

Dimensions 500 x 240 x 400mm pneumatic type size

適用焊接范圍              適用于0.03 mm～0.5 mm的五金焊接絲片。

Suitable for welding range for 0.03 mm ~ 0.5 mm metal welding wire plate.
