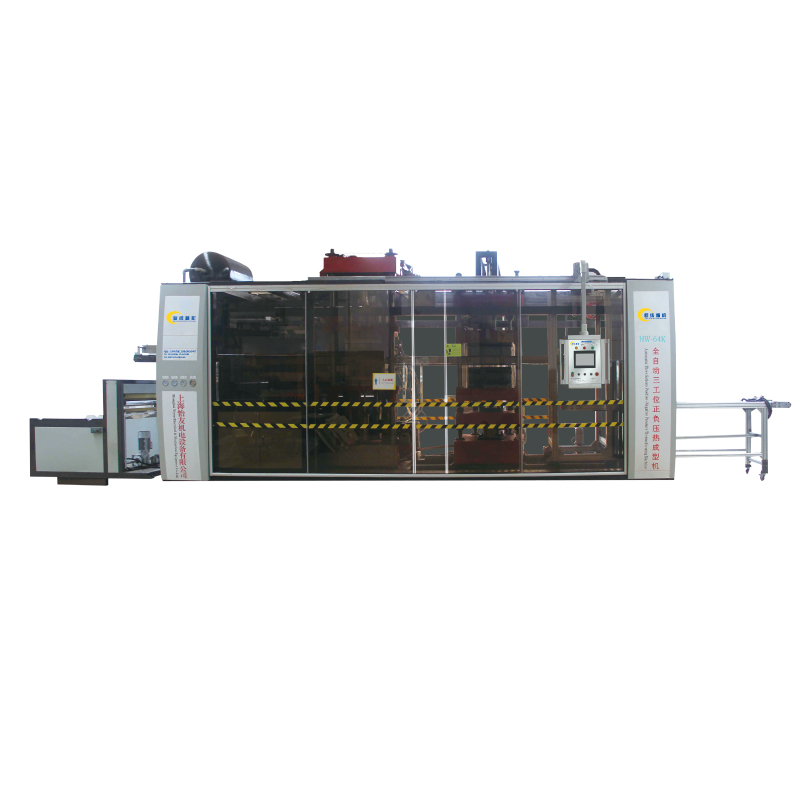

全自動正負壓三工位吸塑機系列

主要特點：

Main features:

電熱爐溫控系統采用全電腦智能自動補償控制，分區一控一采用數字輸入、具有微調精度高、溫度均勻、升溫快（從0-400度只需3分鐘），穩定（不受外部電壓影響、溫度波動不超過1度）。能耗低（節能15%左右），熱爐使用壽命長等特點。

The electrothermal furnace' s temperature cool system adopts full computerize intelligent automatic compensation coolling, individual partition adopts digital input, has a high precision fine-tuning, temperature uniformity, fast temperature elevation(only 3 minutes from 0-400 degrees), stability (not influenced by external voltage, temperature fluctuation is less than 1 degree). Low energy consumption (energy sing about 15%), electrothermal furnace service life is long, etc.

集成型，沖剪，堆疊，計數為一體

Integrate forming, cutting, stacking and counting

目前進的凸輪結構（配有軸承）

At present the most advanced CAM structure (equipped with bearings)

電爐移動方式靈活（前后左右可移動）適用于更小版面產品

Movable electric furnace (all around moving), suitable for the smaller products.

邊角料自動收卷；

Leftover material automatic recycle.

送片鏈軌寬度可同步或分立電動調整；

The width of feeding caterpillar track can be adjust individual or coolled by motor.

電熱爐自動移出裝置；

Electric furnace is removable from the device automatically;

吸塑機機械上料卷裝置，減輕工人勞動強度

Automatic feeding devices, se labor intensity.

主要應用：

Application:

常用材料有PVC、PET、APET、PETG、PP、PE、PS、EPS、E、淀粉降解材料、光電降解材料、植絨材料等。廣泛使用于食品、五金、電子、文具、醫療用品、日用品、化裝品、工藝品、玩具用品等多種行業產品的大量生產。

Commonly used material such as PVC、PET、APET、PETG、PP、PE、PS、EPS、E、Starch biodegradable materials,  Photoelectric biodegradable materials, Flocking material etc. Widely used in food, hardware, electronics, stationery, medical supplies, daily necessities, cosmetics, handicrafts, toys, and other industry products of mass production.

技術參數：型號　HW-640
　　　　　片材厚度　0.2-2.0mm　　
　　　　　成型面積　580-640mm
　　　　　成型深度　120mm
　　　　　總功率　 110kw~
　　　　　生產速度　10~25次/分鐘
　　　　　重量　16噸
