   佛山市銀志機械有限公司陶瓷鋁液過濾系統介紹：

   陶瓷鋁液過濾系統包括鋁液過濾流槽以及鋁液過濾箱，二者均由中耐1號耐高溫保溫陶瓷制作而成。

流槽及過濾箱，鑄造模內的分流盤，套管材料為“中耐一號”。流槽及過濾箱外殼為鋼結構，內襯為“中耐一號”預制件，過濾箱尺寸為20英寸。(根據平臺大小決定)

Material of launder, filter box, distributor inside ting model, thimble are “ZHONGNAI NO 1”. Outer side of launder and filter box are made of steel; inside lining is made of “ ZHONGNAI NO 1” preformed unit; filter box size is 20 inch.

結構描述：

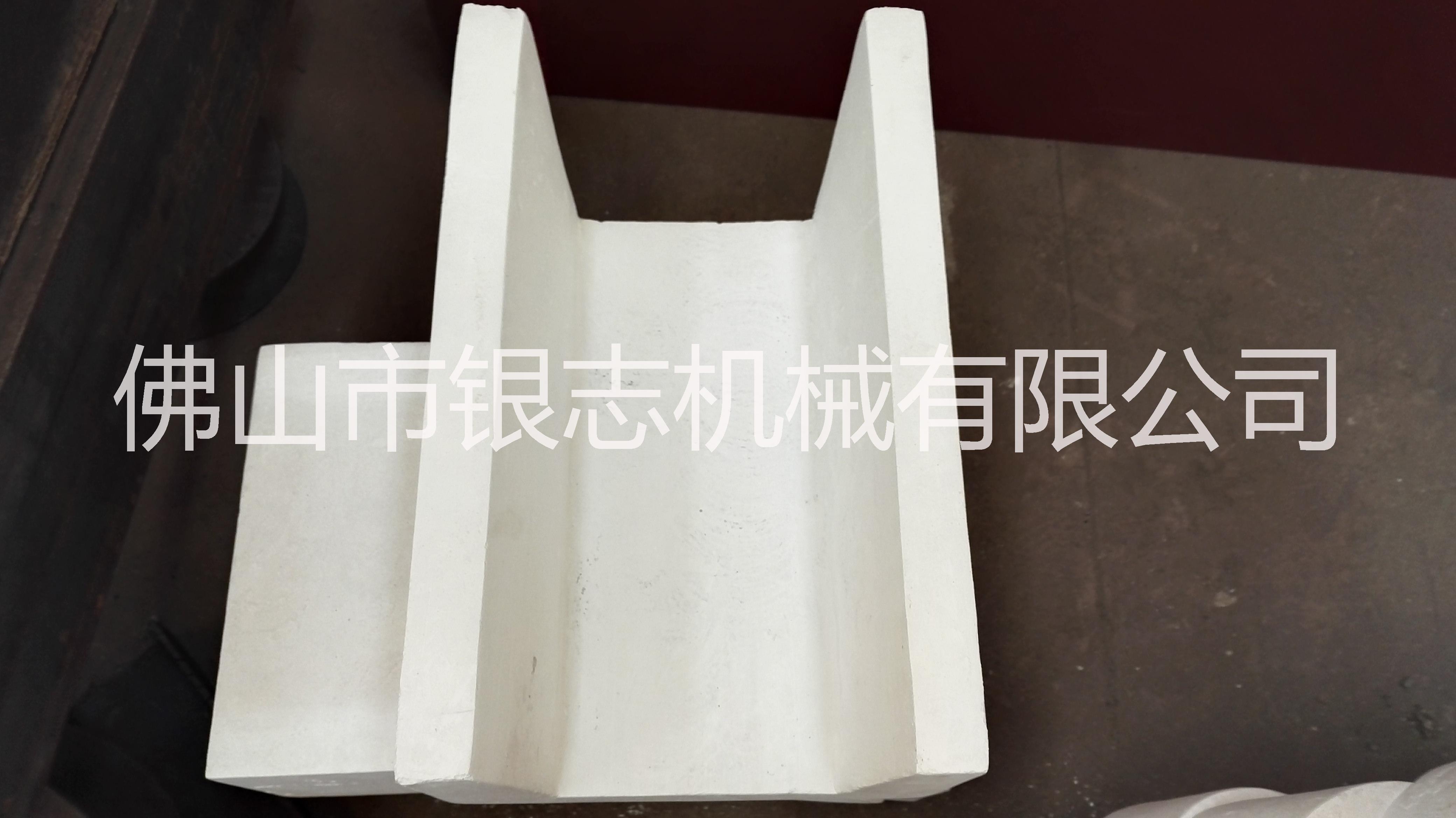

流槽：流槽外用型鋼及A3鋼板焊制，內為“中耐一號”預制件，中間為保溫用硅酸棉，鋁液從保溫爐流出來后，經此流槽進入過濾箱。

Launder: outer side of launder is made of profile bar and A3 steel sheet, inter side is made of “ZHONGNAI NO 1” preformed unit; interlayer adopt silicate cotton for heat-holding. Aluminum liquid flows out of holding furnace, and pass through this launder to enter into on-line degassing system.

過濾箱：陶瓷過濾箱外用型鋼及鋼板焊制，內用“中耐一號”預制件，中間為保溫用硅酸棉，預制件內安裝陶瓷過濾板，鋁液流進來后被過濾，再流進鑄造模。

Filter box: outside of porcelain filter box adopt profile and steel sheet; inside adopt “ZHONGNAI NO 1” preformed unit; interlayer adopt heat preservation silicate cotton; porcelain filter is installed in preformed unit so that aluminum liquid firstly filtered, then enter into ting mold.
