無熱再生吸附式壓縮空氣干燥機

吸附式干燥機

Adsorption Air Dryer

1.無熱再生吸附式壓縮空氣干燥機工藝流程

Heatless Purge Desiccant Air Dryer

A、B吸附塔  Absorption twoer

1、2、3、4切換閥 Switch valve

5、消聲器 Silencer

6、7 止回閥 Check valve

8 節流閥 Throttle

9 程序控制器 Program cooller

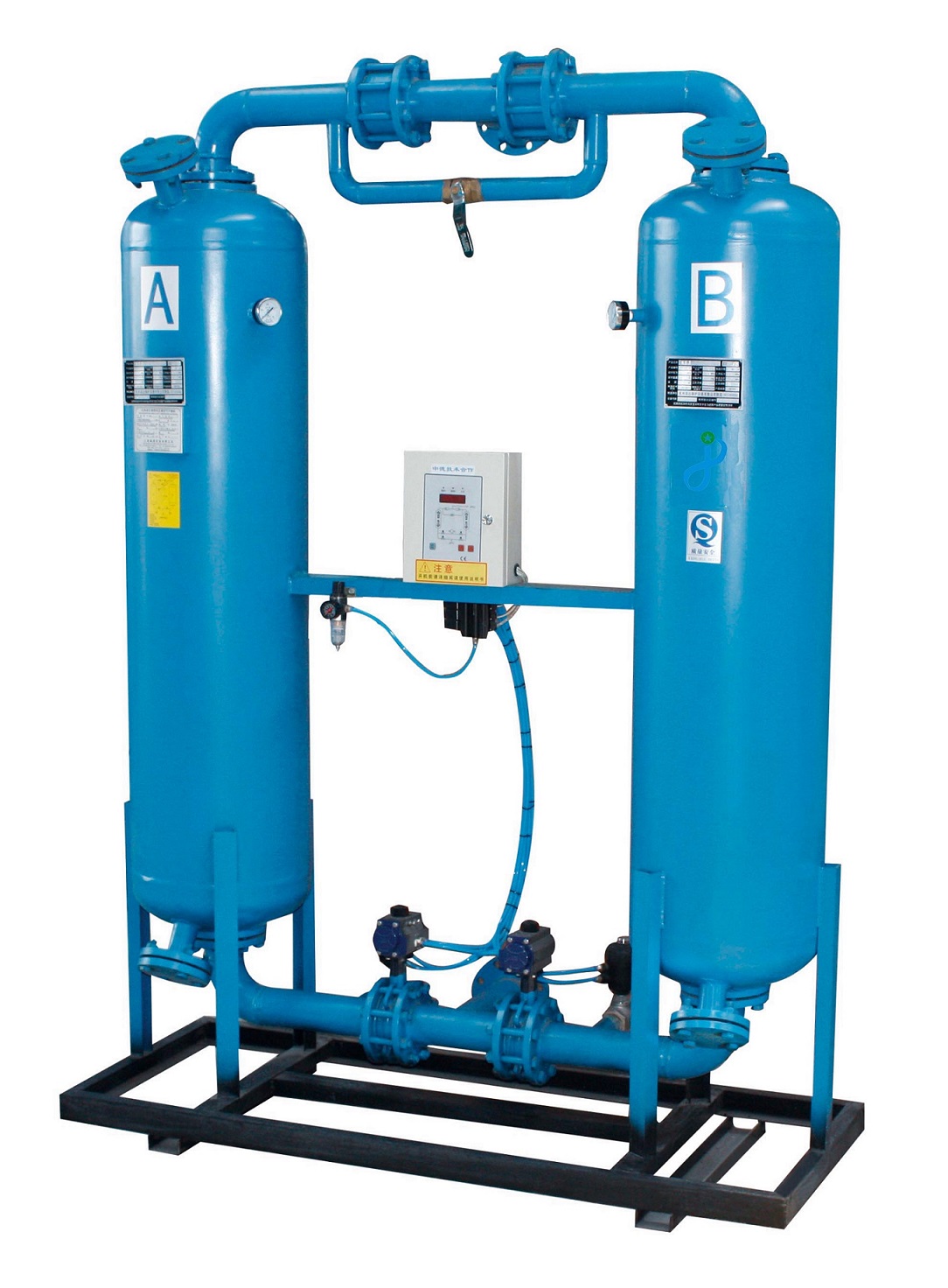

卓穎無熱再生吸附式壓縮空氣干燥機

無熱再生吸附式壓縮空氣干燥機是利用干燥劑材料本身所特有的微孔，根據毛細作用吸附空氣中的水分子，同時根據卸壓脫附和吸附余熱升溫來脫去所吸附的水分，設備一般制成形式，在程序控制器的控制下，兩筒交替工作，一筒吸附水分，另一筒解吸再生，如此連續循環地工作。

According to the principal of PSA (Pressure Swing Adsorption), the moisture in the compressed air will be adsorbed and compressed with the special appetency of the sorbent on the steam. The machine is of two-tower structure. Under the cool of PLC, the two towers will run alternately. One tower adsorb the moisture under high pressure air and another tower complete the desorption of steam with the dry air produced by itself, thus keeping running circularly.

Externally Heated Purge Desiccant Air Dryer

A、B吸附塔  Absorption tower

A1、A2、B1、B2切換閥 Switch valve

5、消聲器 Silencer

3、4、6、7 止回閥 Check valve

8 節流閥 Throttle

9 程序控制器 Program cooller

10 電加熱器 Heating element
