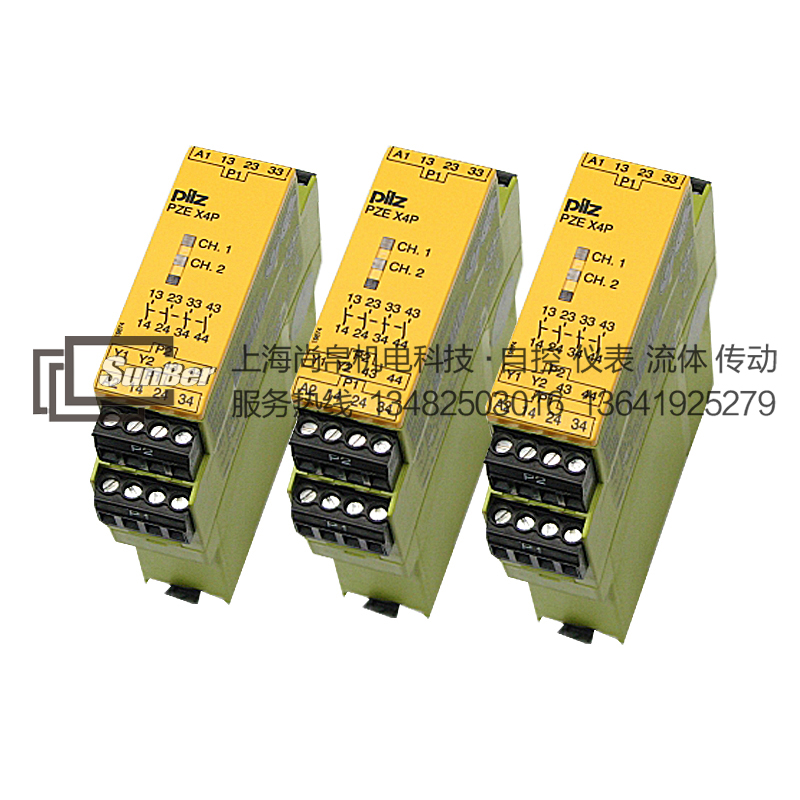

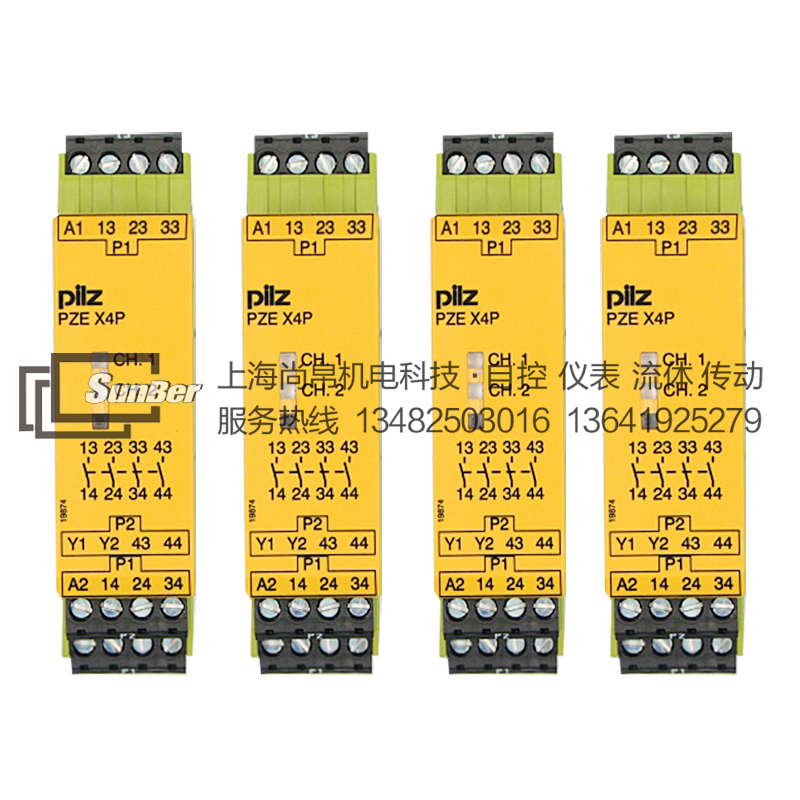

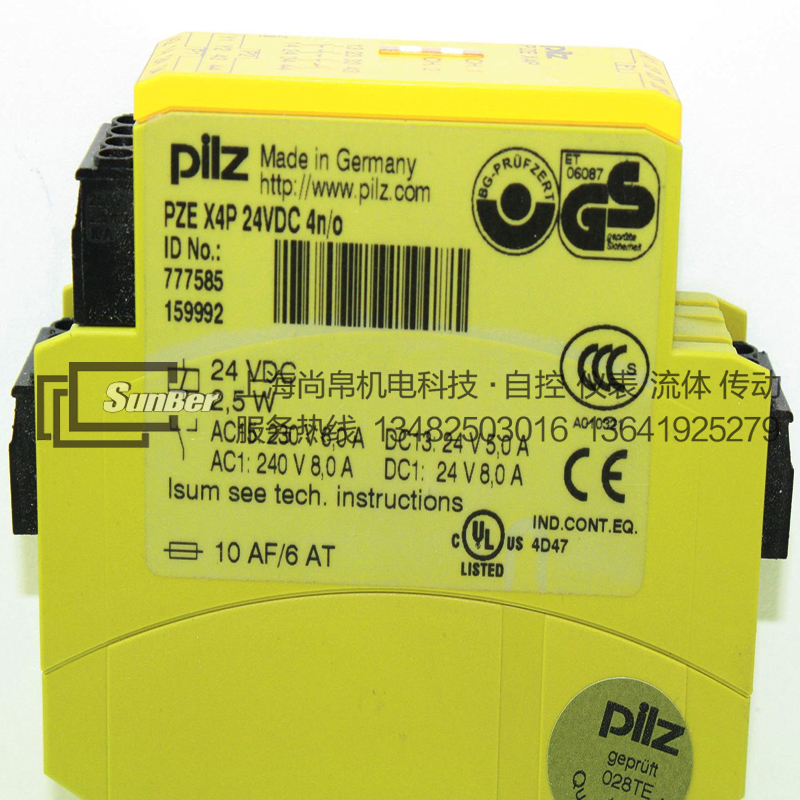

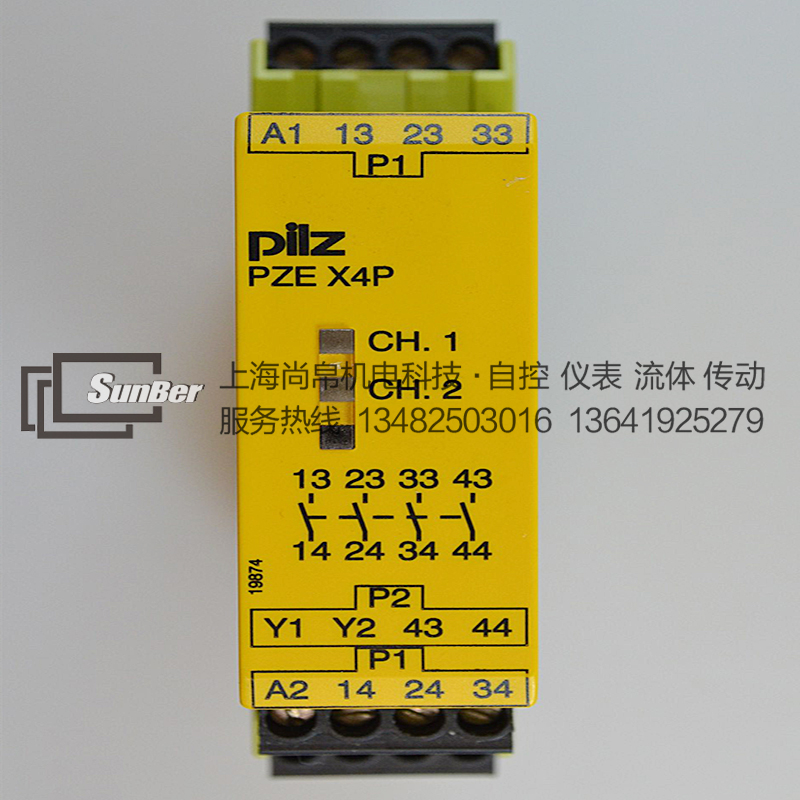

供應皮爾磁@繼電器PZE X4 24VDC 4no@安全繼電器

訂貨號：777585

含稅單價：1.00 元/個 準確價格歡迎來電來郵，13482503016@163.com   56200 506

技術參數(shù)

批準: CE, cULus 認證, T?V, CCC
應用選項: 瞬時觸點擴展
操作模式: 單通道, 不檢測觸點間短路
標準: EN 60204-1, EN 62061, EN ISO 13849-1, VDE 0113-1
供電電壓 (V): 24,0
*源*型: DC
終端型: 插件
終端類型: 螺絲端子
瞬時安全觸點數(shù)量: 4
在DC13處的電流I (6個循環(huán)/最小): 5.0 A
在AC1處的電壓5: 230 V
寬度尺寸: 22.5 mm
高度尺寸: 94.0 mm
深度尺寸: 121.0 mm
總重: 180 g
凈重: 170 g
以攝氏度一表示的環(huán)境溫度: -10 - 55 °C

其他訂貨號
774580 PZE X4V 0,5/24VDC 4n/o fix
774581 PZE X4V 1/24VDC 4n/o fix
774582 PZE X4V 2/24VDC 4n/o fix
774583 PZE X4V 3/24VDC 4n/o fix
774584 PZE X4V 8/24VDC 4n/o
774585 PZE X4 24VDC 4n/o
774586 PZE X4V 0,7/24VDC 4n/o fix
774590 PZE X5V 3/48VDC 5n/o fix
774592 PZE X5V 1.5/24VDC 5n/o fix
774593 PZE X5V 3/24VDC 5n/o fix
774595 PZE X5 24VDC 5n/o
774600 PNOZ XM1 24VDC 4n/o 1n/c 2so
774601 PNOZ X9 42VAC 24VDC 7n/o 2n/c 2so
774605 PNOZ X9 100-120VAC 24VDC 7n/o 2n/c 2so
774606 PNOZ X9 200-230VAC 24VDC 7n/o 2n/c 2so
774607 PNOZ X2.2 24VAC/DC 2n/o
774609 PNOZ X9 24VAC 24VDC 7n/o 2 n/c 2so
774610 PNOZ XV3.1 30/24-240VACDC 3no 1nc 2no t
774612 PNOZ XV3.1 3/24-240VACDC 3no 1nc 2no t
774618 PNOZ XV3.1 300/24-240VACDC 3no 1nc 2no t
774620 PNOZ XE1 24VDC
774621 PNOZ XE2 24VDC
774700 PNOZ X10 24VAC 6n/o 4n/c 3LED
774701 PNOZ X10 42VAC 6n/o 4n/c 3LED
774703 PNOZ X10 110-120VAC 6n/o 4n/c 3LED
774706 PNOZ X10 230-240VAC 6n/o 4n/c 3LED
774709 PNOZ X10 24VDC 6n/o 4n/c 3LED
774721 PNOZ X6 42VAC 3n/o
774725 PNOZ X6 110-120VAC 3n/o
774726 PNOZ X6 230-240VAC 3n/o
774729 PNOZ X6 24VAC 24VDC 3n/o
774730 PNOZ X4 24VDC 3n/o 1n/c
774731 PNOZ X4 24VAC 3n/o 1n/c
774732 PNOZ X4 24VDC 3n/o 1n/c white box
774734 PNOZ X4 110VAC 3n/o 1n/c
774735 PNOZ X4 115VAC 3n/o 1n/c
774736 PNOZ X4 120VAC 3n/o 1n/c
774738 PNOZ X4 230VAC 3n/o 1n/c
774739 PNOZ X4 240VAC 3n/o 1n/c
774740 PNOZ X10.1 24 VAC 6n/o 4n/c 6LED
774741 PNOZ X10.1 42 VAC 6n/o 4n/c 6LED
774745 PNOZ X10.1 110-120VAC 6n/o 4n/c 6LED
774746 PNOZ X10.1 230-240VAC 6n/o 4n/c 6LED
774749 PNOZ X10.1 24VDC 6n/o 4n/c 6LED
774789 PNOZ V 3s 24VDC  3n/o 1n/c 1n/o (t)
774790 PNOZ V 30s 24VDC  3n/o 1n/c 1n/o (t)
774791 PNOZ V 300s 24VDC  3n/o 1n/c 1n/o (t)
775505 PU3Z 120-240VAC 3n/o 1n/c 6so
775510 PU3Z 24VDC 3n/o 1n/c 6so
775600 PNOZ 1 24VAC  3n/o 1n/c
775620 PNOZ 1 48VAC  3n/o 1n/c
775630 PNOZ 1 110-120VAC  3n/o 1n/c
775650 PNOZ 1 230-240VAC  3n/o 1n/c
775695 PNOZ 1 24VDC  3n/o 1n/c
777053 PNOZ X7P 110-120VAC 2n/o
777056 PNOZ X7P 230-240VAC 2n/o
777059 PNOZ X7P 24VAC/DC 2n/o
777070 PNOZ 16SP 24VAC 24VDC 2n/o
777071 PNOZ 16SP 42VAC 24VDC 2n/o
777072 PNOZ 16SP 48VAC 24VDC 2n/o
777073 PNOZ 16SP 110VAC 24VDC 2n/o
777074 PNOZ 16SP 115VAC 24VDC 2n/o
777075 PNOZ 16SP 120VAC 24VDC 2n/o
777076 PNOZ 16SP 230VAC 24VDC 2n/o
777077 PNOZ 16SP 240VAC 24VDC 2n/o
777080 PNOZ X11P 24VAC 24VDC 7n/o 1n/c 2so
777083 PNOZ X11P 110-120VAC 24VDC 7n/o 1n/c 2so
777086 PNOZ X11P 230-240VAC 24VDC 7n/o 1n/c 2so
777100 PNOZ X1P 24VDC 3n/o 1n/c
777140 PZE 9P 24VACDC 8n/o 1n/c
777148 PZE 9P 24VACDC 100-240VACDC 8n/o 1n/c
777150 PZE X5P 24VDC 5n/o 2so
777300 PNOZ X2.9P 24VDC 3n/o 1n/c
777301 PNOZ X2.8P 24VACDC 3n/o 1n/c
777302 PNOZ X2.8P 24-240VAC/DC 3n/o 1n/c
777303 PNOZ X2P 24VACDC 2n/o
777304 PNOZ X2.3P 24VACDC 3n/o
777305 PNOZ X2.7P 24VACDC 3n/o 1n/c
777306 PNOZ X2.7P 24-240VAC/DC 3n/o 1n/c
777307 PNOZ X2P 48-240VACDC 2n/o
777308 PNOZ X2.5P 24VDC 2n/o 1so
777310 PNOZ X3P 24VDC 24VAC 3n/o 1n/c 1so
777313 PNOZ X3P  24-240VACDC 3n/o 1n/c 1so
777314 PNOZ X3.10P  24VACDC 3n/o 1n/c 1so
777330 P2HZ X1P 24VAC 3n/o 1n/c 2so
777331 P2HZ X1P 42VAC 3n/o 1n/c 2so
777332 P2HZ X1P 48VAC 3n/o 1n/c 2so
777340 P2HZ X1P 24VDC 3n/o 1n/c 2so
777341 P2HZ X1.10P 24VDC 3n/o 1n/c 2so
777354 P2HZ X4P 24VAC 3n/o 1n/c
777355 P2HZ X4P 24VDC 3n/o 1n/c
777434 P2HZ X1P 110VAC 3n/o 1n/c 2so
777435 P2HZ X1P 115VAC 3n/o 1n/c 2so
777436 P2HZ X1P 120VAC 3n/o 1n/c 2so
777438 P2HZ X1P 230VAC 3n/o 1n/c 2so
777439 P2HZ X1P 240VAC 3n/o 1n/c 2so
777500 PNOZ XV2P 30/24VDC 2n/o 2n/o t
777502 PNOZ XV2P 3/24VDC 2n/o 2n/o t
777503 PNOZ XV2P 1/24VDC 2n/o 2n/o fix
777504 PNOZ XV2P 0.5/24VDC 2n/o 2n/o fix
777510 PNOZ XV3P 30/24 VDC 3n/o 2n/o t
777511 PNOZ XV3.3P 30/24VDC 3n/o 2n/o t
777512 PNOZ XV3P 3/24 VDC 3n/o 2n/o t
777514 PNOZ XV3P 0.5/24VDC 3n/o 2n/o t fix
777515 PNOZ XV3P 3/24VDC 3n/o 2n/o t fix
777517 PNOZ XV3P 10/24VDC 3n/o 2n/o t fix
777518 PNOZ XV3P 300/24VDC 3n/o 2n/o t
777520 PNOZ XV3.1P 30/24VDC 3n/o 1n/c 2n/o t
777522 PNOZ XV3.1P 3/24VDC 3n/o 1n/c 2n/o t
777525 PNOZ XV3.1P 3/24VDC 3n/o 1n/c 2n/o t fix
777530 PNOZ XV3.1P 30/24-240VACDC 3no 1nc 2no t
777532 PNOZ XV3.1P 3/24-240VACDC 3no 1nc 2no t
777538 PNOZ XV3.1P 300/24-240VACDC 3no 1nc 2no
777540 PNOZ XV2.1P 30/24-240VACDC 2n/o 2n/o t
777542 PNOZ XV2.1P 3/24-240VACDC 2n/o 2n/o t
777544 PNOZ XV2.1P 0.5/24-240VACDC 2n/o 2n/o fi
777545 PNOZ XV2.1P 3/24-240VACDC 2n/o 2n/o fix
777547 PNOZ XV2.1P 10/24-240VACDC 2n/o 2n/o fix
777548 PNOZ XV2.1P 300/24-240VACDC 2n/o 2n/o t
777580 PZE X4VP 0,5/24VDC 4n/o fix
777581 PZE X4VP 1/24VDC 4n/o fix
777582 PZE X4VP 2/24VDC 4n/o fix
777583 PZE X4VP 3/24VDC 4n/o fix
777584 PZE X4VP8 24VDC 4n/o
777585 PZE X4P 24VDC 4n/o
777586 PZE X4VP4 24VDC 4n/o
777587 PZE X4.1P 24VDC 4n/o
777588 PZE X4.1P 24-240VAC/DC 4n/o
777600 PNOZ X2.1VP 0.75/24VDC 1so  2n/o fix
777601 PNOZ XV1P 3/24VDC 2n/o 1n/o t
777602 PNOZ XV1P 30/24VDC 2n/o 1n/o t
777606 PNOZ X9P 24VDC 100-240VACDC 7no 2nc 2so
777607 PNOZ X9P 12VDC 7n/o 2n/c 2so
777608 PNOZ X9P 230 VAC  - 777 606
777609 PNOZ X9P 24VDC 7n/o 2n/c 2so
777750 PNOZ X10.11P 24VDC 6n/o 4n/c 6LED
777760 PNOZ X8P 24 VDC 3n/o 2n/c 2so
777764 PNOZ X8P 110VAC 3n/o 2n/c 2so
777765 PNOZ X8P 115VAC 3n/o 2n/c 2so
777766 PNOZ X8P 120VAC 3n/o 2n/c 2so
777768 PNOZ X8P 230VAC 3n/o 2n/c 2so
777770 PNOZ X8P 24VAC 3n/o 2n/c 2so
777949 PSWZ X1P 0,5V /24-240VACDC 2n/o 1n/c 2so
777950 PSWZ X1P 3V /24-240VACDC 2n/o 1n/c 2so
777951 PSWZ X1P 0,0075-0,5V/24-240VACDC
784130 PNOZ e1p C 24VDC 2so
784131 PNOZ e1vp C 10/24VDC 1so 1so t
784132 PNOZ e1vp C 300/24VDC 1so 1so t
784133 PNOZ e1.1p C 24VDC 2so
784135 PNOZ e2.2p C 24VDC 2so
784136 PNOZ e2.1p C 24VDC 2so
784137 PNOZ e3vp C 10/24VDC 1so 1so t
784138 PNOZ e3vp C 300/24VDC 1so 1so t
784139 PNOZ e3.1p C 24VDC 2so
784180 PNOZ e4.1p C 24VDC 2so
784181 PNOZ e4vp C 10/24VDC 1so 1so t
784190 PNOZ e5.11p C 24VDC 2so
784191 PNOZ e5.13p C 24VDC 2so
784192 PNOZ e6.1p C 24VDC 4n/o 2so
784193 PNOZ e6vp C 24VDC 4n/o 1so 1so t
787053 PNOZ X7P C 110-120VAC 2n/o
787056 PNOZ X7P C 230-240VAC 2n/o
787059 PNOZ X7P C 24VAC/DC 2n/o
787070 PNOZ 16SP C 24VAC 24VDC 2n/o
787071 PNOZ 16SP C 42VAC 24VDC 2n/o
787072 PNOZ 16SP C 48VAC 24VDC 2n/o
787073 PNOZ 16SP C 110VAC 24VDC 2n/o
787074 PNOZ 16SP C 115VAC 24VDC 2n/o
787075 PNOZ 16SP C 120VAC 24VDC 2n/o
787076 PNOZ 16SP C 230VAC 24VDC 2n/o
787077 PNOZ 16SP C 240VAC 24VDC 2n/o
787080 PNOZ X11P C 24VAC 24VDC 7n/o 1n/c 2so
787083 PNOZ X11P C 110-120VAC 7n/o 1n/c 2so
787086 PNOZ X11P C 230-240VAC 7n/o 1n/c 2so
787100 PNOZ X1P C 24VDC 3n/o 1n/c
787140 PZE 9P C 24VACDC 8n/o 1n/c
787148 PZE 9P C 24VACDC 100-240VACDC 8n/o 1n/c
787150 PZE X5P C 24VDC 5n/o 2so
