誤碼分析儀 100G 誤碼儀

    CA9808 四通道24.5～29Gb/s可調諧誤碼儀主要用于 100G TOSA/ROSA器件的誤碼測試，同時可以方便地用于不同速率器件的測量；CA9808 具有高精度、高性價比和操作使用簡單方便等特點，目前在光通訊制造業生產線、高校及科研機構等領域得到了廣泛的應用；
    CA9808誤碼儀集成內部參考時鐘、圖形信號發生器、時鐘恢復電路及誤碼分析等功能于一體，同時提供光電界面、和USB數據通信接口，每個通道的速率高達29Gb/s。

產品特點：
1. Bit rates from 24.5～29Gb/s; 4 Channels;
2. PRBS:27-1, 29-1, 211-1, 215-1, 223-1, 231-1, 258-1;
3. PPG:Uer defined pattern , and 8, 16, 32, 64bit definable;
4. Pre-emphasis output signal functionality;

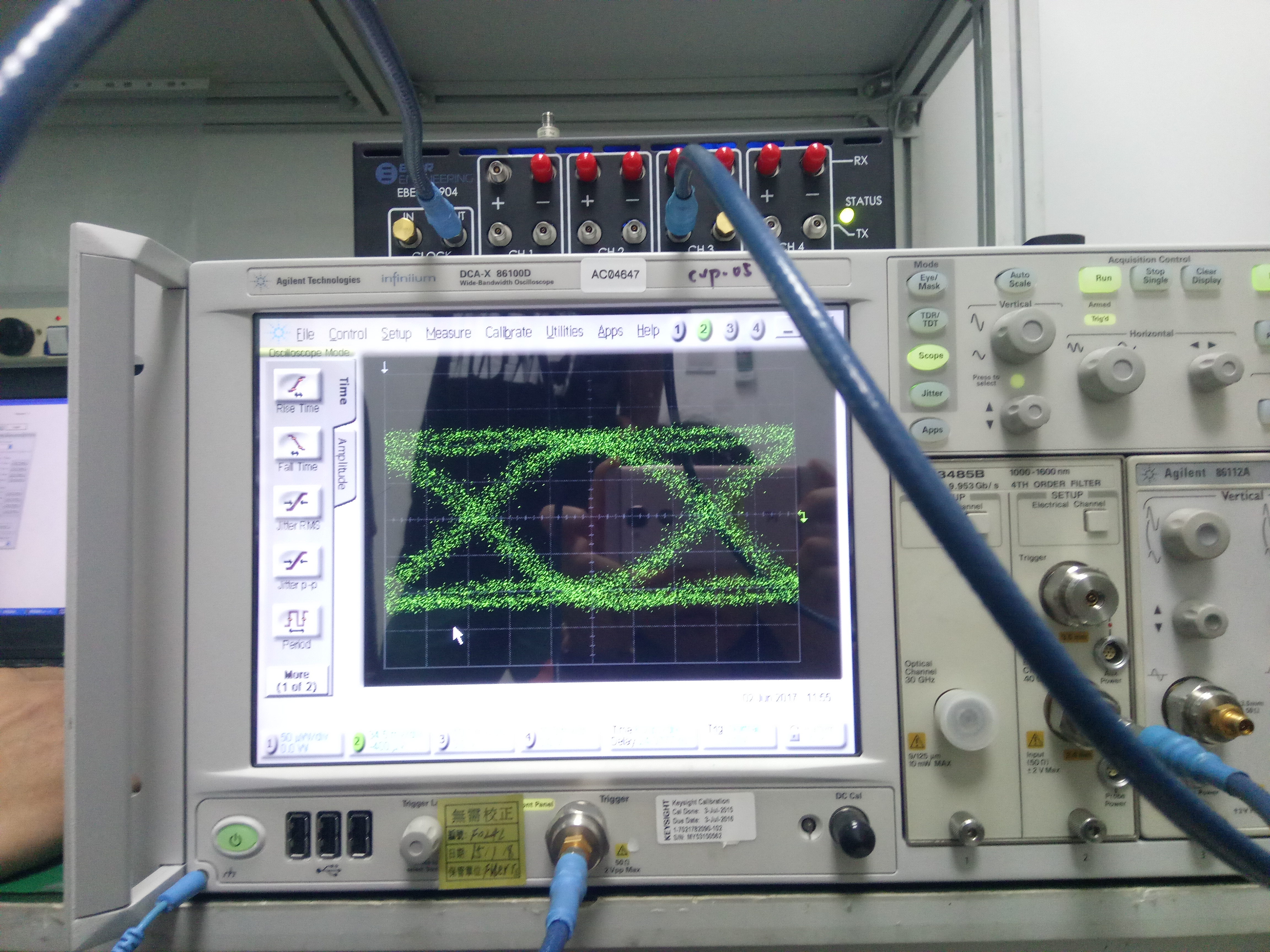

5. Buld-in Eye Diagram Testing Function;
6. 4 CH PPG and 4 CH Error-Rate Detector were integrated in one;
7. Computer cool via USB;
8. Compact Size, Cost effective solution for production.
應用范圍：
1. Testing of optical transceiver modules (CFP2, CFP4, QSFP28 ,
  SFP+, XFP, X2, Xenpak, XPAK), transponders,  linecards, and
  subsystems;
2. Testing of opto-electronic components and devices (TOSA,
  ROSA, lasers, etc…);
3. Testing of Gb/s ICs, , electronic modules, subsystems,
  and systems
4. Serial bus and high-speed backplane design;
5. Installation testing and troubleshooting in optical transport networks.
