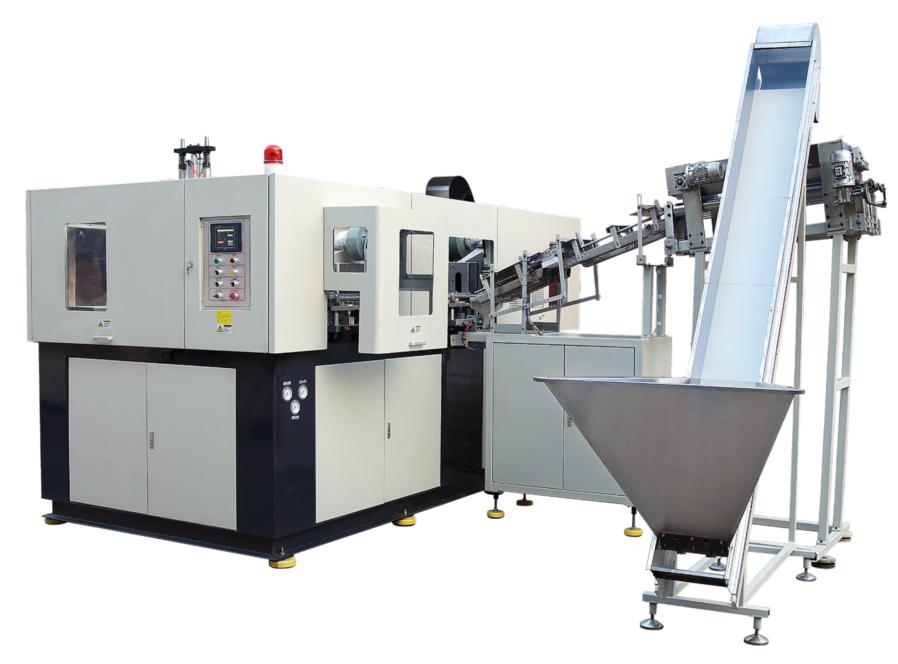

HQ系列 兩腔全自動吹瓶機

HQ SERIES 2 CITIES FULL AUTOMATIC BOTTLE BLOW MOLDING MACHINE

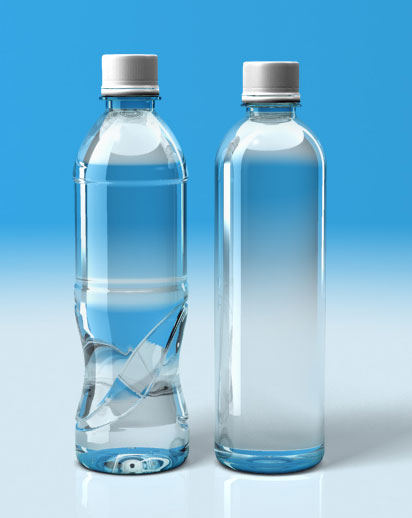

適用于吹制以PET為原料的任何形狀的礦泉水瓶，

碳酸飲料瓶，化妝品瓶，瓶，醫藥瓶等多種塑料包裝容器

Suitable for blowing of PET bottles of mineral water as raw material of any shape,

Carbonated beverage bottles, cosmetic bottles, pesticide, medicine bottles and other plastic packing containers.

型號MODEL

項目ITEM

單位UNIT

HQ-800-2

HQ-1500-2

HQ-2000-2

HQ-3000-2

制品規格

Product

specs

容量Volume

L

≤0.8

≤1.5

≤2

≤3

模腔數Mold city

pcs

2

2

2

2

瓶子直徑Bottle DIA

mm

73

93

103

135

瓶子高度Bottle height

mm

250

340

340

340

瓶頸直徑Neck DIA

mm

Ф15 -Ф60

Ф15 -Ф60

Ф15 -Ф60

Ф15 -Ф60

產量Output

BPH

2600

2000

1800

1800

機器規格

Machine

specs

開模行程Opening stroke

mm

115

125

125

175

模具厚度Mold thickness

mm

180

180

200

220

總功率Total Power

kw

24

27

33

50

實際使用功率Actual use power

kw

12

15

15

20

外形尺寸（長×寬×高）Size(L×W×H)

m

2.5×1.5×1.8

2.5×1.5×1.8

2.6×1.6×2.0

2.7×1.6×2.0

重量Weight

kg

2200

2500

2500

2600

空壓機規格

Air pressure

specs

工作壓力working pressure

Mpa

0.8-1.0

0.8-1.0

0.8-1.0

0.8-1.0

低壓耗氣量Low pressure gas consumption

m?/min

1.2

1.6

1.6

1.6

吹瓶壓力Blowing pressure

Mpa

2.5-3.0

2.5-3.0

2.5-3.0

2.5-3.0

高壓耗氣量High pressure gas consumption

m?／min

1.6

1.6

2.4

2.4

冷水機規格

Chiller

specs

制冷能力Cooling capacity

Kcal/Hr

7150

7150

11900

11900

溫度范圍Temperature range

℃

5-10

5-10

5-10

5-10

壓縮力Compressing force

HP

3

3

5

5

上料機

Feeder specs

外形尺寸Size

m

20*1.1*2.2

20*1.1*2.2

20*1.1*2.2

20*1.1*2.2

重量Weight

kg

250

250

250

250
