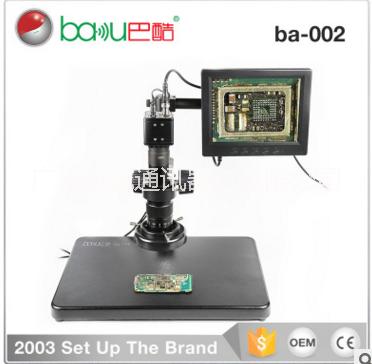

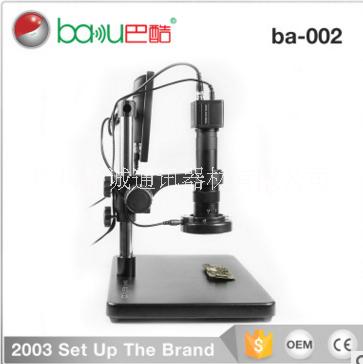

BAKU ba-002 Video Electronic Repair Microscope with VGA Digital Television Can Be Inverted Microscope
| Model | ba-002 |
| Connector | |
| Output mode | BNC, interface; USB interface,VGA interface for choice |
| Color | Black |
| Appearance | Alloy shell, the standard C interface |
| working temperature | - 10 - 60 degrees |
| Total magnification | 7-150X |
| Objective | 0.7-4.5 X |
| Zoom eyepiece | 0.5X |
| Lifting range | 270mm |
| Handwheel focusing range | 65mm |
| Center distance | Column diameter |
| Lens interface diameter | 50mm |
| Total height bracket | 355mm |
| Product features | The magnification of the microscope can be maximum 600 times, the observed area can reach more than 30mm |
| The product configuration | Microscope, CCD, microscope around lamp, the data line, driving disc |
Usages:
1.Widely use for micro-electronics,mould,power metallurgy,precision machinery and jewelry etc.
2.Especially for observe the surface microstructure of large objective.
