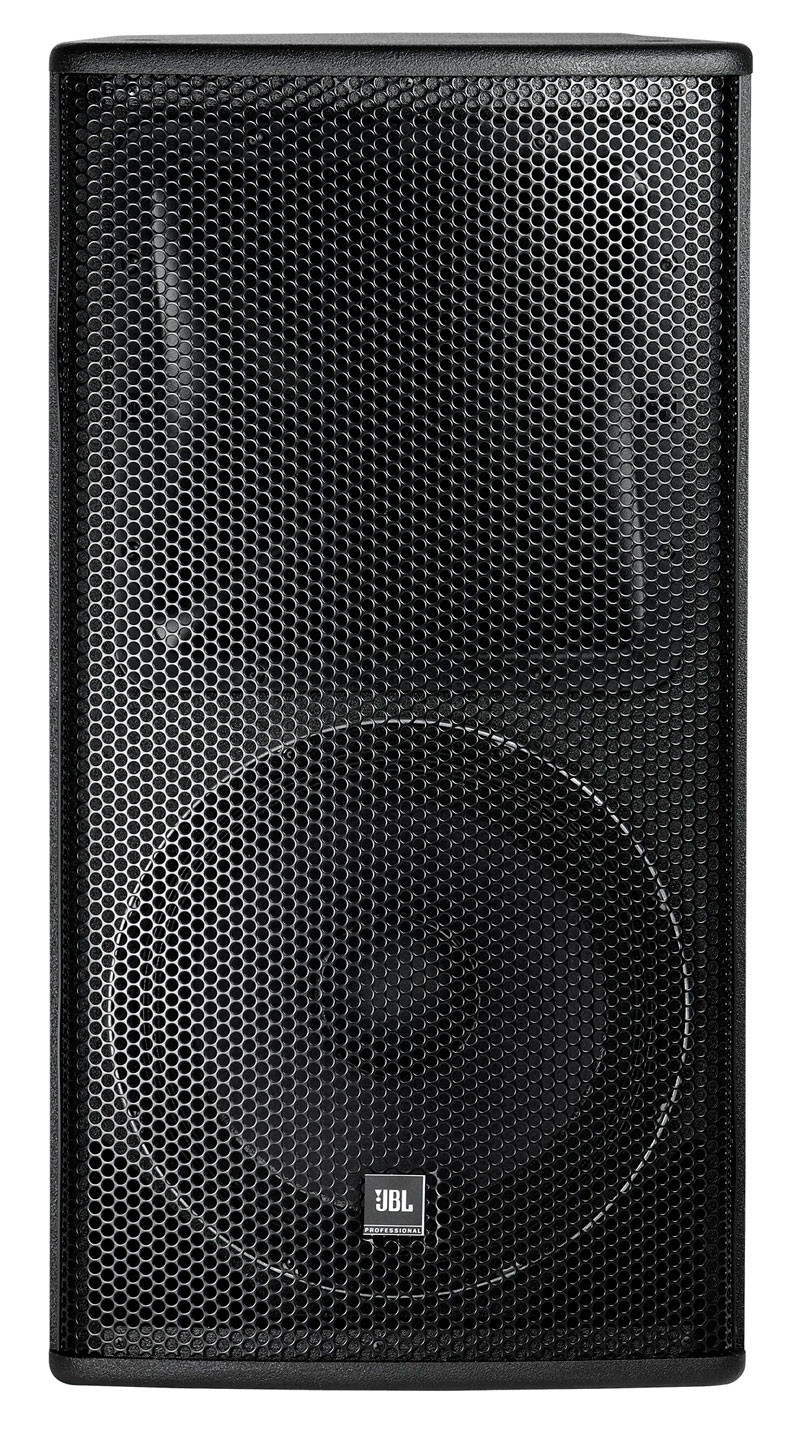

JBL MD52專業迪廳會所音箱 慢搖吧迪廳娛樂音箱/12寸專業壁掛音箱 婚慶 KTV全頻音箱



北京聲海創新科技有限公司是一家綜合性機構。始終致力于為成功人士量身打造生活方式的服務供應商，專業從事高中低檔專業音箱、家庭影院、KTV卡拉OK系統、Hi-Fi音箱等批發銷售設計及安裝，同時又以專業音視頻綜合布線系統，會議系統，專業舞臺燈光音響系統技術。



 這就是聲海創新帶給大家“JBL MD52 音箱”的介紹。如果想了解更多的話可以點擊查看更多的案例或者來電咨詢我們。



 24小時服務熱線：13146744100,13141244200



JBL擁有近70年的音響類產品開發和制造經驗，在中國推出的各系列揚聲器產品，滿足各類娛樂場所的需求，包括慢搖吧，迪廳，KTV，高端音樂會所，，俱樂部，練歌房，演藝廳，酒吧和咖啡館等。

Marquis Dance Club

Marquis系列揚聲器是專為迪吧、慢搖吧、音樂會所等場所開發的系列娛樂音箱。全系列共8個產品，完全模塊化設計使您可以隨需靈活運用，既可以在相對狹小的場所堆疊使用，也可以在一些層高滿足的情況下吊掛安裝。

主要特點：

JBL 265H-1 2”雙音圈——雙磁隙Differential Drive? 低音音箱

JBL 2408H-1 1.5”音膜，1”壓縮單元

90° x 50° PT? 漸進式波導

帶有安裝支架用的插孔，滿足便攜式應用

應用：

酒吧擴聲應用

流動舞臺擴聲應用

現場演出應用



系統：

頻率范圍(-10 dB): 39 Hz – 20 kHz

頻率響應(±3 dB): 51 Hz – 19 kHz

覆蓋角度: 90° x 50°，可旋轉波導

擇向性因素(Q): 11.6

指向性指數(DI): 10.6 dB

交叉頻率: 1.8 kHz

系統功率(IEC)1: 550 W (2200 W峰值) 2小時

長時間運行系統功率(IEC)2: 350 W (1400 W峰值) 100小時

SPL3: 125 dB-SPL cont g (131 dB 峰值)

系統靈敏度4: 98 dB-SPL, 2.83V (1W)@1m (3.3 ft)

系統阻抗: 8 ohms



傳聲器：

低頻單元: 1 x JBL 265H-1 380mm (15 in) Differential Drive低頻單 元，50.8mm (2 in)雙音圈

高頻單元: 1 x JBL 2408H-1 25.4mm (1 in) 壓縮單元，38mm (1.5 in)音圈

波導: PT-H95HF-1漸進式波導



外型：

外觀: 7.5度和45度角梯形，16 mm (5/8 in)11層芬蘭樺木夾板

懸吊工具: 10 x M10點（上下左右和背面各2個），35 mm支撐座

噴漆: 采用Duraflex?黑色噴漆處理

外網: 粉末涂層孔網

輸入接口: Neutrik Speakon? NL4(2 個并行連接)和CE兼容的有蓋阻隔 端子。阻隔端子支持5.2 sq mm(10 AGW) 電纜或最寬9 mm (.375 in)平接線片。NL4’s +1/-1 與(+2/-2 loop through)阻 隔端子并行。

外型尺寸(H x W x D): 781.1 mm x 419.8 mm x 457.7 mm (30.8 英寸 x 16.5 英寸 x 18 英寸)

凈重: 23.8 Kg (52.5 *)

可選附件: M10 x 35 mm帶墊圈電鍍螺栓

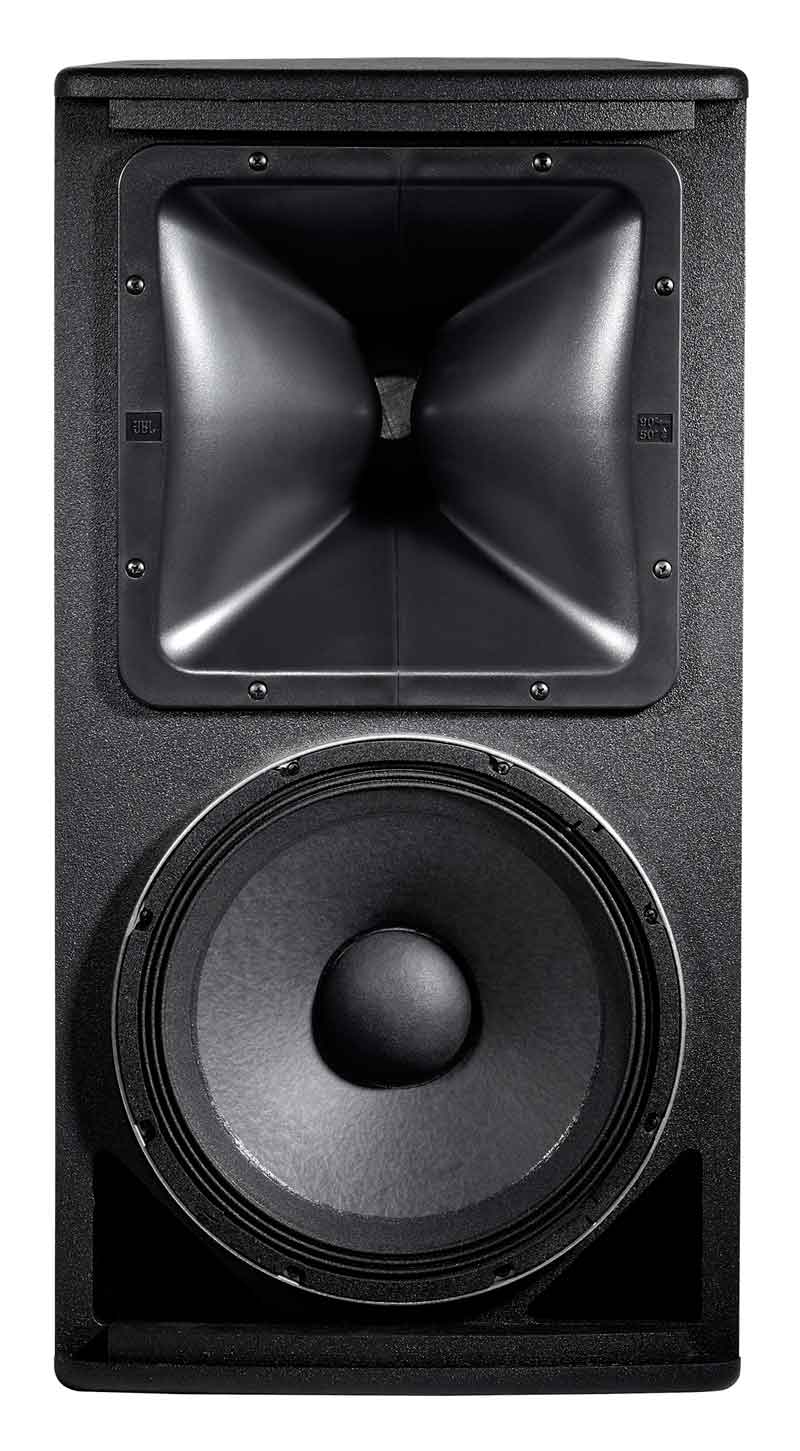

2-Way Full-Range Loudspeaker System with 1 x 12" LF

JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market. The MD52 is also designed for the mobile DJ requiring a light weight, high fidelity portable system. The multiangle enclosure features a 45° angle on one side for use as a floor monitor in the horizontal orientation and is fitted handles, a pole mount cup on the bottom panel. MD52 is a medium-power 90° x 50°, 12" 2-way fully passive full-range system utilizing a 262H Differential Drive transducers and a 2408H-1 compression driver with a 1.5" diaphragm for smooth low distortion high-frequency response. All of the Marquis Series loudspeakers offer unprecedented fidelity, clarity, and breathtaking purity.



FEATURES

• JBL 262H 2” dual voice coil – dual magnetic gap Differential Drive? woofers

• JBL 2408H-1 1.5" diaphragm, 1" exit compression driver

• 90° x 50° rotatable PT? Progressive Transition weguide

• Pole mount socket for portable applications

APPLICATIONS

• Sophisticated dance clubs

• Mobile DJ

• Live sound reinforcement

SPECIFICATIONS

	Frequency Range (-10 dB)	39 Hz – 20 kHz
	Power Rating	550 W (2200 W peak) 2 hrs
	Coverage Pattern	90° x 50°, rotatable weguide
	Frequency Response (±3 dB)	53 Hz – 19 kHz
	Directivity Factor (Q)	11.0
	Directivity Index (DI)	10.4 dB
	Passive Crossover Frequency	1.4 kHz
	Long-Term System Power Rating (IEC)	300 W (1200 W peak), 100 hrs
	Maximum SPL	123 dB-SPL cont g (129 dB peak)
	System Sensitivity	96 dB SPL, 2.83V (1W) @ 1m (3.3 ft)
	Low Frequency Driver	1 x JBL 262H-1 300 mm (12 in ) Differential Drive woofer with dual 50.8 mm (2 in) voice coil
	High Frequency Driver	JBL 2408H-1, 25.4 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
	Weguide	PT-H95HF-1 Progressive Transition Weguide
	Enclosure	Trapezoidal with 7.5° and 45° side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
	Suspension Attachment	10 x M10 attachment points (2 top, 2 bottom, 2 each side, 2 rear), 4 x M8 (rear panel) for OmniMount? 60.0 35 mm pole mount socket
	Finish	Black DuraFlex? finish.
	Grille	Powder coated 14 gauge perforated steel
	Input Connectors	Neutrik Speakon? NL4 (2 wired in parallel), plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AGW) wire or max width 9 mm (.375 in) spade lugs. NL4’s +1/-1 in parallel with barrier strip (+2/-2 loop-through).
	Dimensions (H x W x D in vertical cabinet orientation):	711.2 x 371.4 x 400.6 mm (28 x 14.6 x 15.8 in)
	Net Weight	20.6 kg (45.5 lb)
	Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers
