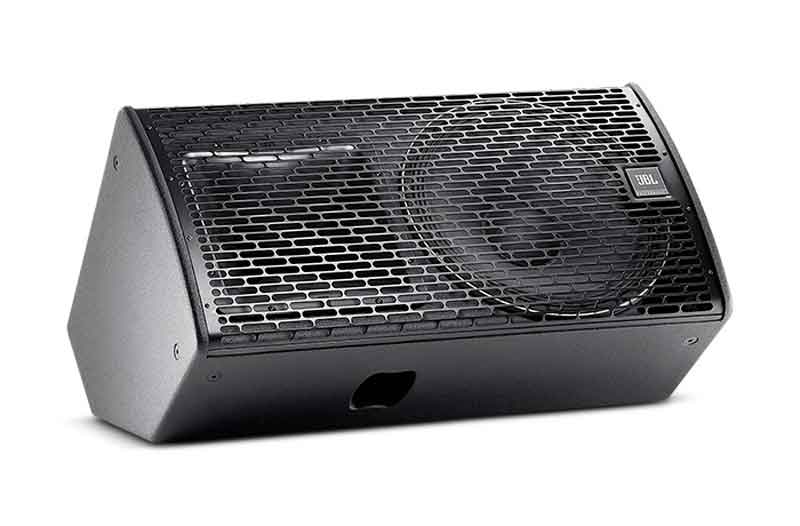

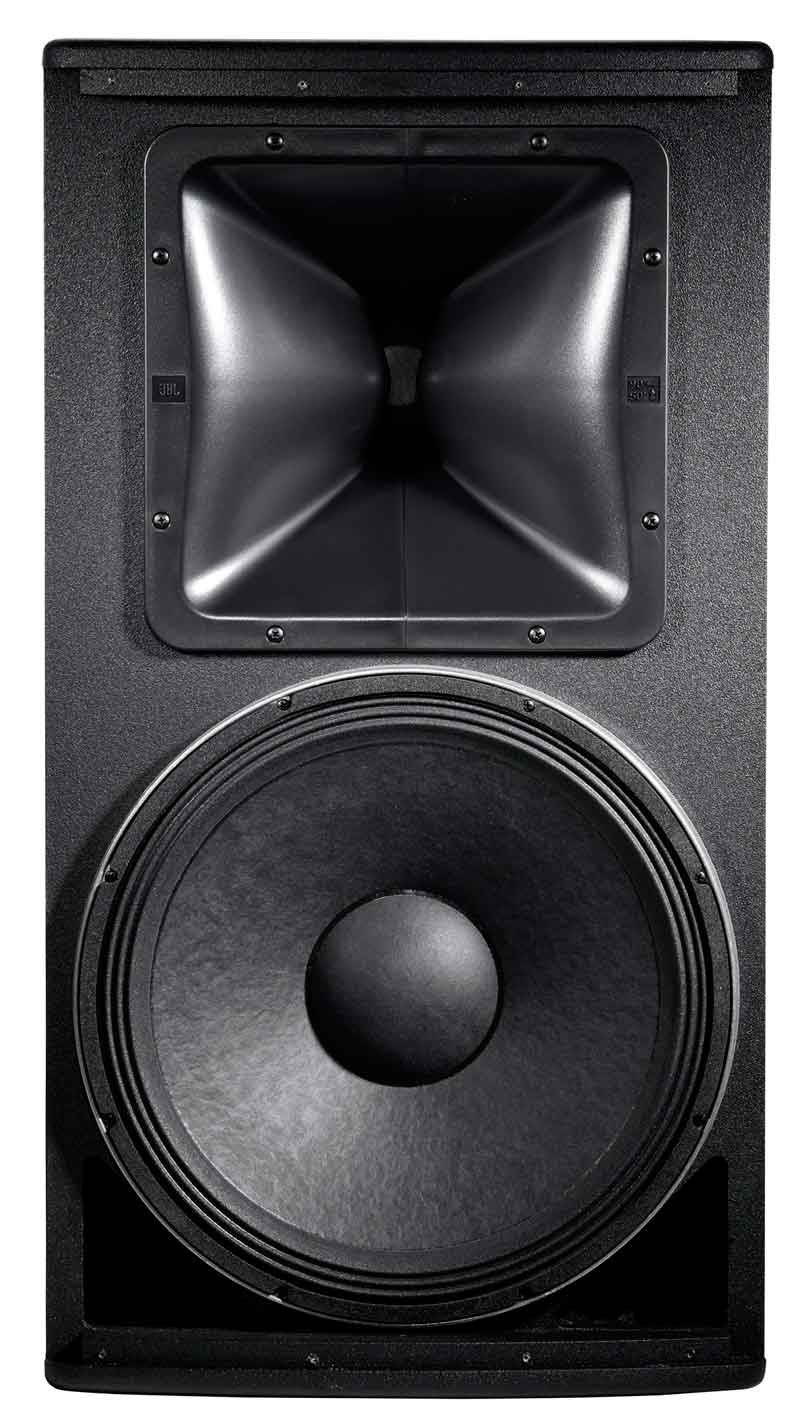

JBL MD55 專業迪廳KTV音箱 慢搖吧迪廳娛樂音箱/15寸專業壁掛音箱 婚慶 會所全頻音箱



聲海創新是一家綜合性機構。始終致力于為成功人士量身打造生活方式的服務供應商，專業從事高中低檔專業音箱、家庭影院、KTV卡拉OK系統、Hi-Fi音箱等批發銷售設計及安裝，同時又以專業音視頻綜合布線系統，會議系統，專業舞臺燈光音響系統技術。



     這就是聲海創新帶給大家“JBL MD55音箱”的介紹。如果想了解更多的話可以點擊查看更多的案例或者來電咨詢我們。

 ?

        24小時服務熱線：13146744100,13141244200

JBL擁有近70年的音響類產品開發和制造經驗，在中國推出的各系列揚聲器產品，滿足各類娛樂場所的需求，包括慢搖吧，迪廳，KTV，高端音樂會所，，俱樂部，練歌房，演藝廳，酒吧和咖啡館等。



Marquis Dance Club

Marquis系列揚聲器是專為迪吧、慢搖吧、音樂會所等場所開發的系列娛樂音箱。全系列共8個產品，完全模塊化設計使您可以隨需靈活運用，既可以在相對狹小的場所堆疊使用，也可以在一些層高滿足的情況下吊掛安裝。

主要特點：

JBL 265H-1 2”雙音圈——雙磁隙Differential Drive? 低音音箱

JBL 2408H-1 1.5”音膜，1”壓縮單元

90° x 50° PT? 漸進式波導

帶有安裝支架用的插孔，滿足便攜式應用

應用：

酒吧擴聲應用

流動舞臺擴聲應用

現場演出應用



系統：

頻率范圍(-10 dB): 39 Hz – 20 kHz

頻率響應(±3 dB): 51 Hz – 19 kHz

覆蓋角度: 90° x 50°，可旋轉波導

擇向性因素(Q): 11.6

指向性指數(DI): 10.6 dB

交叉頻率: 1.8 kHz

系統功率(IEC)1: 550 W (2200 W峰值) 2小時

長時間運行系統功率(IEC)2: 350 W (1400 W峰值) 100小時

SPL3: 125 dB-SPL cont g (131 dB 峰值)

系統靈敏度4: 98 dB-SPL, 2.83V (1W)@1m (3.3 ft)

系統阻抗: 8 ohms



傳聲器：

低頻單元: 1 x JBL 265H-1 380mm (15 in) Differential Drive低頻單 元，50.8mm (2 in)雙音圈

高頻單元: 1 x JBL 2408H-1 25.4mm (1 in) 壓縮單元，38mm (1.5 in)音圈

波導: PT-H95HF-1漸進式波導



外型：

外觀: 7.5度和45度角梯形，16 mm (5/8 in)11層芬蘭樺木夾板

懸吊工具: 10 x M10點（上下左右和背面各2個），35 mm支撐座

噴漆: 采用Duraflex?黑色噴漆處理

外網: 粉末涂層孔網

輸入接口: Neutrik Speakon? NL4(2 個并行連接)和CE兼容的有蓋阻隔 端子。阻隔端子支持5.2 sq mm(10 AGW) 電纜或最寬9 mm (.375 in)平接線片。NL4’s +1/-1 與(+2/-2 loop through)阻 隔端子并行。

外型尺寸(H x W x D): 781.1 mm x 419.8 mm x 457.7 mm (30.8 英寸 x 16.5 英寸 x 18 英寸)

凈重: 23.8 Kg (52.5 *)

可選附件: M10 x 35 mm帶墊圈電鍍螺栓



2-Way Full-Range Loudspeaker System with 1 x 15" LF

JBL’s Marquis Dance Club Series is a state-of-the-art family of loudspeaker systems designed specifically for the Dance Club Market. The MD55 is also designed for the mobile DJ requiring a light weight, high fidelity portable system. The multiangle enclosure features a 45° angle on one side for use as a floor monitor in the horizontal orientation and is fitted handles, a pole mount cup on the bottom panel. MD55 is a medium-power 90° x 50°,
15" 2-way fully passive full-range system utilizing a 265H Differential Drive transducers and a 2408H-1 compression driver with a 1.5" diaphragm for smooth low distortion high-frequency response. All of the Marquis Series loudspeakers offer unprecedented fidelity, clarity, and breathtaking purity.



FEATURES

• JBL 265H 2" dual voice coil – dual magnetic gap Differential Drive? woofers

• JBL 2408H-1 1.5" diaphragm, 1" exit compression driver

• 90° x 50° rotatable PT? Progressive Transition weguide

• Pole mount socket for portable applications

APPLICATIONS

• Sophisticated dance clubs

• Mobile DJ

• Live sound reinforcement

SPECIFICATIONS

	Frequency Range (-10 dB)	39 Hz – 20 kHz
	Power Rating	550 W (2200 W peak) 2 hrs
	Coverage Pattern	90° x 50°, rotatable weguide
	Frequency Response (±3 dB)	51 Hz – 19 kHz
	Directivity Factor (Q)	11.6
	Directivity Index (DI)	10.6 dB
	Passive Crossover Frequency	1.8 kHz
	Long-Term System Power Rating (IEC)	350 W (1400 W peak), 100 hrs
	Maximum SPL	125 dB-SPL cont g (131 dB peak)
	System Sensitivity	98 dB SPL, 2.83V (1W) @ 1m (3.3 ft)
	System Impedance	8 ohms
	Low Frequency Driver	1 x JBL 265H-1 380 mm (15 in ) Differential Drive woofer with dual 50.8 mm (2 in) voice coil
	High Frequency Driver	1 x JBL 2408H-1, 25.4 mm (1 in) exit compression driver, 38 mm (1.5 in) voice coil
	Weguide	PT-H95HF-1 Progressive Transition Weguide
	Enclosure	Trapezoidal with 7.5° and 45° side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
	Suspension Attachment	10 points (2 top, 2 bottom, 2 each side, 2 rear), M10 threaded hardware, 35 mm pole mount socket
	Finish	Black DuraFlex? finish.
	Grille	Powder coated 14 gauge perforated steel
	Input Connector	Neutrik Speakons NL4 (2 wired in parallel), plus CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AGW) wire or max width 9 mm (.375 in) spade lugs. NL4’s +1/-1 in parallel with barrier strip (+2/-2 loop through).
	Environmental Specifications	Mil-Std 810; IP-x3 per IEC529
	Dimensions (H x W x D in vertical cabinet orientation)	781.1 x 419.8 x 457.7 mm (30.8 x 16.5 x 18.0 in)
	Net Weight	23.8 kg (52.5 lb)
	Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers
