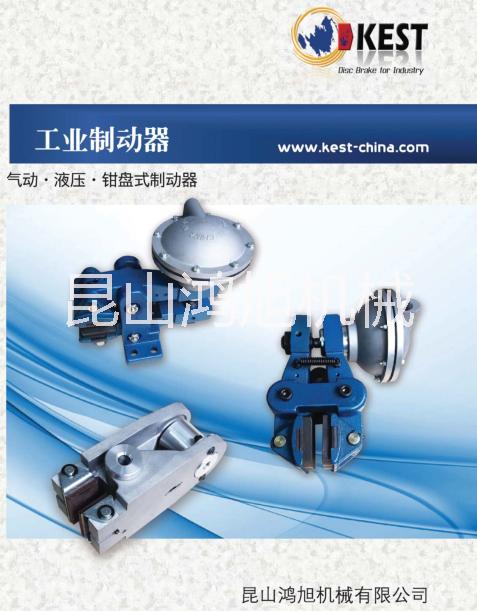

KEST制動器空壓碟式剎車

昆山鴻旭KB系列氣動空氣驅動制動器：

KB1氣動驅動制動器

技術數據

制動力F：

KB1-1 556N 6bar

KB1-2 1516N 6bar

KB1-3 3888N 6bar

加速力矩

=F·[制動盤半徑-0.024]=Nm

總磨損: 6 mm

新摩擦片厚度: 5 mm

持續滑動時的熱容量Qc:1 kW

Technical data

Braking force F:

KB1-1 556 N at 6 bar

KB1-2 1516 N at 6 bar

KB1-3 3888 N at 6 bar

Dynamic torque

= F.(disc radius in m - 0.024) = Nm

Max total wear: 6 mm

Thickness of new lining: 5 mm

Continuousthermal capacity Qc: 1 kW

KB2氣動驅動制動器

厚度為25.4mm的制動盤同樣適用, 產品代號不同

ailable also for disc thickness 25,4 mm.

技術數據

制動力F：

KB2-1 1730 N 6bar

KB2-2 4100 N 6bar

KB2-3 8000 N 6bar

KB2-4 13700N 6bar

動態力矩

=F·[制動盤半徑- 0.03) = Nm

總磨損：16 mm

新摩擦片厚度：16 mm

持續滑動時的熱容量

Qc: 1.7 kW

雙倍制動墊型持續滑動時的熱容量

Qc: 2.7 kW

Technical data

Braking force F:

KB2-1 1730 N at 6 bar

KB2-2 4100 N at 6 bar

KB2-3 8000 N at 6 bar

KB2-4 13700 N at 6 bar

Dynamic torque

= F.(disc radius in m - 0.03) = Nm

Max total wear: 16 mm

Thickness of new lining: 16 mm

Continuous thermal capacity

Qc: 1.7 kW

Continuous thermal capacity

for double pad version Qc: 2.7 kW

KB3氣動驅動制動器

技術數據

制動力F：

KB3-1 670 N 6bar

KB3-2 1800 N 6bar

KB3-3 3550 N 6bar

加速力矩

=F·[制動盤半徑-0.032]=Nm

總磨損: 14 mm

新摩擦片厚度: 16 mm

持續滑動時的熱容量Qc: 1.7 kW

雙倍制動墊型持續滑動時的熱容量

Qc: 2.7 kW

Technical data

Braking force F:

KB3-1 670 N at 6 bar

KB3-2 1800 N at 6 bar

KB3-1 3550 N at 6 bar

Dynamic torque

= F.(disc radius in m - 0.032) = Nm

Max total wear: 14 mm

Thickness of new lining: 16 mm

Continuous thermal capacity

Qc: 1.7 kW

Continuous thermal capacity

for double pad version Qc: 2.7 kW

KB4氣動驅動制動器

技術數據

制動力F：

KB4-1 1600 N 6bar

KB4-2 3800 N 6bar

KB4-3 7500 N 6bar

KB4-4 12700 N 6bar

動態力矩

=F·[制動盤半徑-0.033]=Nm

總磨損：12 mm

新摩擦片厚度：11 mm

持續滑動時的熱容量Qc: 3.4 kW

Technical data

Braking force F:

KB4-1 1600 N at 6 bar

KB4-2 3800 N at 6 bar

KB4-3 7500 N at 6 bar

KB4-4 12700 N at 6 bar

Dynamic torque

= F.(disc radius in m - 0.033) = Nm

Max total wear: 12 mm

Thickness of new lining: 11 mm

Continuous thermal capacity Qc: 3.4 kW

KB5氣動驅動制動器

厚度為25.4-30-40mm的制動盤同樣適用。

ailable also for disc thickness 25.4-30-40mm.

技術數據

制動力F:

KB5-1 6bar時制動力為1600N

KB5-2 6bar時制動力為3800N

KB5-3 6bar時制動力為7500N

KB5-4 6bar時制動力為12700N

加速力矩

=F [制動盤半徑-0.033]=Nm

一對摩擦片總磨損：12mm

新單片摩擦片厚度：11mm

持續散熱功率

Qc：3.4KW

Technical data

Braking force F:

KB5-1 1600 N at 6 bar

KB5-2 3800 N at 6 bar

KB5-3 7500 N at 6 bar

KB5-4 12700 N at 6 bar

Dynamic torque

= F.(disc radius in m-0.033)=Nm

Max total wear: 12 mm

Thickness of new lining: 11 mm

Continuous thermal capacity

Qc: 3.4kW

KB6氣動驅動制動器

技術數據

制動力F:

KB6-1 6bar時制動力為3610N

KB6-2 6bar時制動力為7200N

KB6-3 6bar時制動力為12500N

KB6-4 6bar時制動力為19000N

加速力矩

=F.[制動盤半徑-0.062]=Nm

一對摩擦片總磨損：10mm

新單片摩擦片厚度：8mm

持續散熱功率

Qc：14KW

Technical data

Braking force F:

KB6-1 3610 N at 6 bar

KB6-2 7200 N at 6 bar

KB6-3 12500 N at 6 bar

KB6-4 19000 N at 6 bar

Dynamic torque

= F.(disc radius in m-0.062)=Nm

Max total wear: 10 mm

Thickness of new lining: 8 mm

Continuous thermal capacity

Qc: 14kW

KB7氣動驅動制動器

技術數據

制動力F：

KB7-1 20180 N 6bar

KB7-2 36600 N 6bar

動態力矩

=F·[制動盤半徑-0.065]=Nm

總磨損: 12 mm

新摩擦片厚度: 13 mm

持續滑動時的熱容量Qc: 20 kW

Technical data

Braking force F:

KB7-1 20180 N at 6 bar

KB7-2 36600 N at 6 bar

Dynamic torque

= F.(disc radius in m - 0.065) = Nm

Max total wear: 12 mm

Thickness of new lining: 13 mm

Continuous thermal capacity Qc: 20 kW

KB8氣動驅動制動器

技術數據

制動力F：

KB8-1 20180 N 6bar

KB8-2 36600 N 6bar

動態力矩

=F·[制動盤半徑-0.065]=Nm

總磨損: 12 mm

新摩擦片厚度: 13 mm

持續滑動時的熱容量Qc: 20 kW

Technical data

Braking force F:

KB8-1 20180 N at 6 bar

KB8-2 36600 N at 6 bar

Dynamic torque

= F.(disc radius in m - 0.065) = Nm

Max total wear: 12 mm

Thickness of new lining: 13 mm

Continuous thermal capacity Qc: 20 kW
