盤頭梅花螺絲 鍍鋅螺絲 鍍鋅盤頭梅花螺絲 McMaster-carr-99512A210

盤頭梅花螺絲 鍍鋅螺絲 鍍鋅盤頭梅花螺絲 McMaster-carr-99512A210

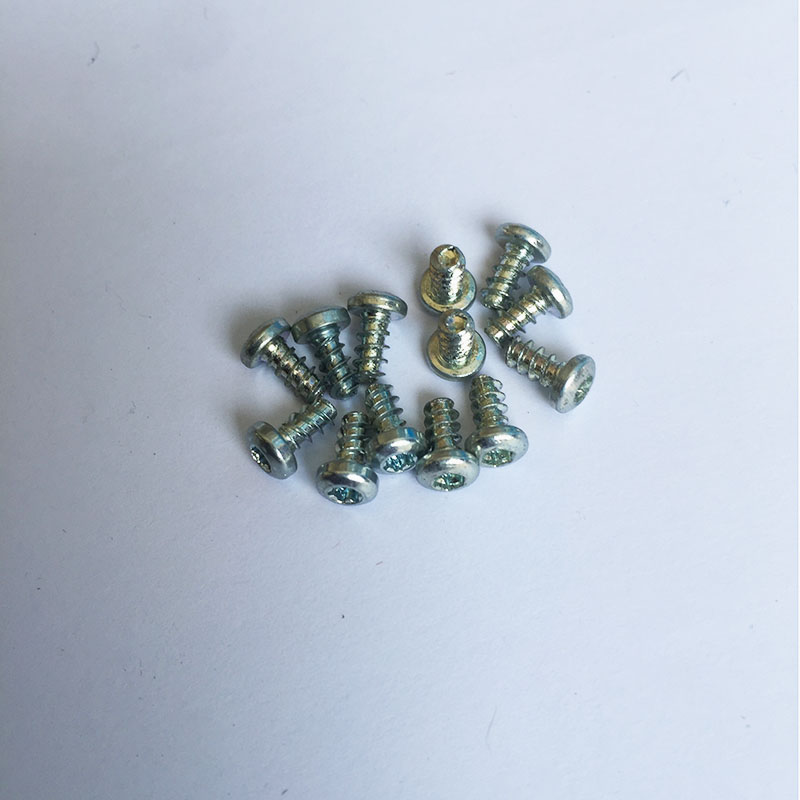

These steel screws are zinc plated to resist corrosion in wet environments. A Torx drive provides more points of contact than a Phillips drive, allowing you to apply extra force with less slippage or damage to the recess. Also known as Plastite screws, they have a triangular shank that presses tightly against formable plastic such as polypropylene to resist loosening. Length is measured from under the head.


這些鋼螺絲鍍鋅以抵御潮濕環境中的腐蝕。 Torx驅動器比Phillips驅動器提供更多的接觸點，使您可以施加更小的滑動或損壞凹槽的力量。 也稱為Plastite螺絲釘，它們有一個三角形柄，可以緊緊壓在聚丙烯等可塑性塑料上以防止松動。 長度是從頭部下方測量的。

公司座機：0510-68799745
傳真：0510-85730629
移動電話：15306198755
Q      Q：1356711655
郵    箱：sales8@amda.cn
公司主頁：www.amdachina.com

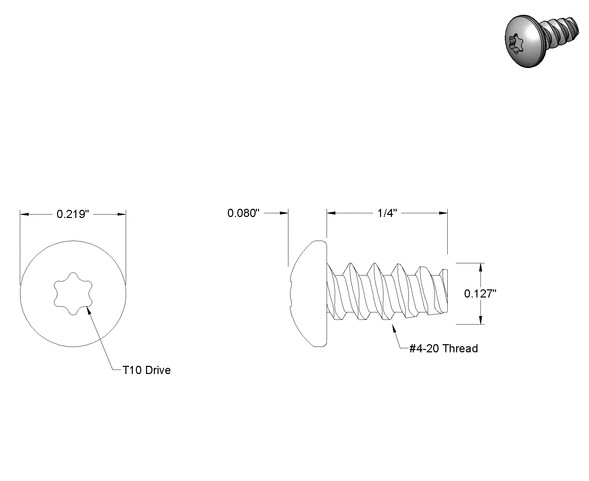

Material Zinc-Plated Steel
Screw Size No. 4
Screw Size Decimal Equivalent 0.112
Length 1/4"
Head
Diameter 0.219
Height 0.08
Drive Size T10
Drive Style Torx
Drill Bit Size No. 44
Drill Bit Size Decimal Equivalent 0.086
Approximate Threads per Inch 20
Thread Direction Right Hand
Threg Fully Threaded
Tapping Method Thread Forming
Tapping Screw Type TRS
Head Type Rounded
Rounded Head Profile Standard
Rounded Head Style Pan
Tip Type Blunt
Shank Cross Section Tri-Lobe
System of Measurement Inch
For Use In Plastic
RoHS Compliant




材料鍍鋅鋼
螺桿尺寸4號
螺桿尺寸小數等效0.112
長度1/4"
頭
直徑0.219
身高0.08
驅動器大小T10
驅動器風格梅花
鉆頭尺寸44號
鉆頭尺寸十進制等效0.086
每英寸近似螺紋20
線程方向右手
螺紋完全螺紋
攻絲方紋成形
自攻螺絲型TRS
頭型圓形
圓頭標準
圓頭樣式平底鍋
提示輸入Blunt
三瓣柄橫截面


測量系統英寸
適用于塑料
符合RoHS





18-8 Stainless Steel—Inch
18-8不銹鋼 - 英寸

Lg. Dia.（直徑） Ht. Drive Drill Bit Approximate Pkg.
Size Size Threads per Inch Qty.
No. 00
3/32" 0.09" 0.038" T3 No. 60 51 25 96001A050
1/8" 0.09" 0.038" T3 No. 60 51 25 96001A053
3/16" 0.09" 0.038" T3 No. 60 51 25 96001A056
1/4" 0.09" 0.038" T3 No. 60 51 25 96001A059
No. 0
1/8" 0.116" 0.039" T5 No. 56 42 50 96001A098
3/16" 0.116" 0.039" T5 No. 56 42 50 96001A101
1/4" 0.116" 0.039" T5 No. 56 42 50 96001A103
3/8" 0.116" 0.039" T5 No. 56 42 50 96001A107
No. 1
1/8" 0.142" 0.046" T6 No. 53 32 50 96001A121
1/4" 0.142" 0.046" T6 No. 53 32 50 96001A124
3/8" 0.142" 0.046" T6 No. 53 32 50 96001A127
No. 2
3/16" 0.167" 0.062" T7 No. 48 28 50 96001A149
1/4" 0.167" 0.062" T7 No. 48 28 50 96001A152
3/8" 0.167" 0.062" T7 No. 48 28 50 96001A156
1/2" 0.167" 0.062" T7 No. 48 28 50 96001A160
3/4" 0.167" 0.062" T7 No. 48 28 50 96001A164
No. 4
1/4" 0.219" 0.08" T10 No. 44 20 50 96001A202
3/8" 0.219" 0.08" T10 No. 44 20 50 96001A206
1/2" 0.219" 0.08" T10 No. 44 20 50 96001A210
3/4" 0.219" 0.08" T10 No. 44 20 50 96001A214
7/8" 0.219" 0.08" T10 No. 44 20 50 96001A217
1" 0.219" 0.08" T10 No. 44 20 50 96001A220
No. 6
1/4" 0.27" 0.097" T15 No. 32 19 50 96001A256
3/8" 0.27" 0.097" T15 No. 32 19 50 96001A260
1/2" 0.27" 0.097" T15 No. 32 19 50 96001A264
3/4" 0.27" 0.097" T15 No. 32 19 50 96001A268
7/8" 0.27" 0.097" T15 No. 32 19 50 96001A271
1" 0.27" 0.097" T15 No. 32 19 50 96001A274
No. 8
3/8" 0.322" 0.115" T20 No. 29 16 50 96001A318
1/2" 0.322" 0.115" T20 No. 29 16 50 96001A322
3/4" 0.322" 0.115" T20 No. 29 16 50 96001A326

1" 0.322" 0.115" T20 No. 29 16 50 96001A329
