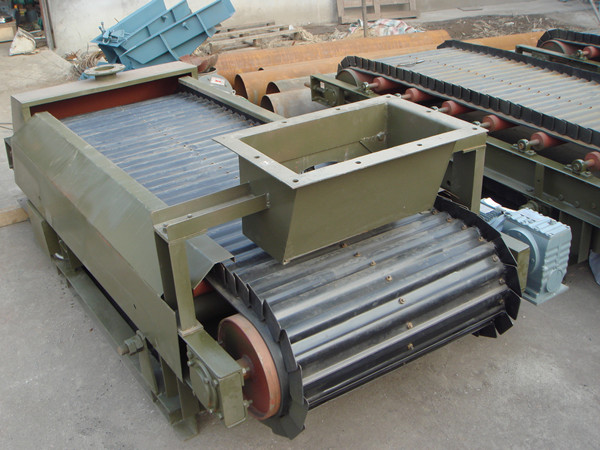

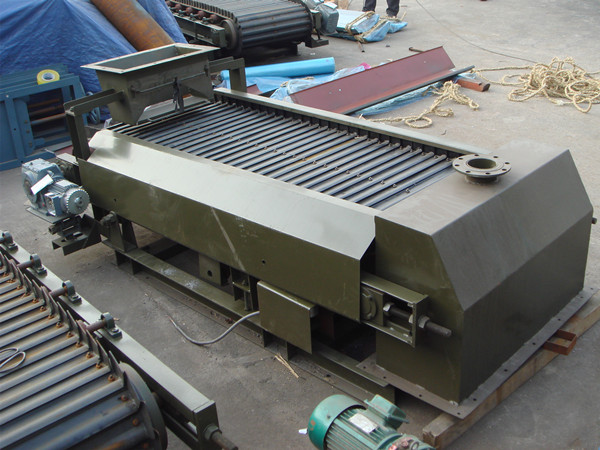

LBL(M)系列高溫鏈板稱重給料機

LBL (M) series high temperature chain plate weighing feeder

一、產品概述Product Ioduction

       LBL(M)系列高溫鏈板稱重給料機是對高溫、高硬度物料（如水泥熟料，各種礦石）實行連續稱重，批次稱重、配料的專項使用計量設備。廣泛應用于建材、水泥、火某炭、礦山、陶瓷、玻璃、冶煉、鋼鐵、電力、焦化等行業。

LBL (M) series high temperature chain plate weighing feeder is fit for high temperature, high hardness materials (such as cement clinker, various ores) implements continuous weighing, batch weighing, mixing meterials special metering equipment. Widely used in building materials, cement, coal, mine, ceramics, glass, metallurgy, electric power, iron and steel, coking industry.

二、 工作原理 work principle

來自鏈板上物料的重量信號和鏈板運行的速度信號一同傳送到微處理控制器，自動計算出物料的瞬時流量。通過連續不斷的比較設定流量與實際物料的瞬時流量，從而調.節鏈板運行的速度，使實際物料流量保持在設定流量值上。

The weight signal and speed signal belt running from the Chain plate material to transfer to the micro processing cooller, automatically calculate the instantaneous flow of materials. The transient flow through the continuous setting flow and the actual material, to adjust the chaine plate running speed, so that the actual material flow is maintained in the set value of flow.

計量精度：≤ ±1%

給料輸送能力：0.01－1000T/H

鏈板寬度：500-1600mm

計量方式：調速、恒速

流量調.節范圍：1：10

工作方式：連續或批次

Measurement precision：≤ ±1%

Transport capacity of feeding：0.01－1000T/H

Chain plate width：500-1600mm

Metering mode：Variable speed, Ctant speed

Flow regulation scope：1：10

Wong mode：Continuous or Batch

四、性能特點Performance characteristics

1、鏈板采用高錳鋼板，一次壓膜成型，堅固耐用不變形。

2、全懸浮式直接稱重結構 ，有效的提高了計量精度。

3、特殊的耐高溫稱重結構，解決了高溫物料對計量的影響。

4、采用高精度的數字稱重模塊，數字傳輸技術，具有線路簡單、無調.節部件、分辨率高、信號無衰減、抗干擾強。

5、控制器采用觸摸顯示技術，中英文圖形化顯示，向?qū)Р僮鞣绞?，操作簡單，無需記憶。

6、可接485通訊，CAN通訊，DCS,PLC等接口。

7、采用GPRS無線數傳功能，可以報表、遠程診斷、校秤等功能。

1、Chain plate adopts high manganese steel plate, a film forming, not durable deformation.

2、Suspended direct weighing structure , effectively improve the measuring accuracy.

3、High temperature resistant unique weighing structure eliminates the influence of high temperature materials on measurement.

4、High temperature resistant unique weighing structure eliminates the influence of high temperature materials on measurement.

5、The cooller uses touch display technology，Chinese- English graphical display, guide mode of operation, operation simple, without memory.

6、It can connect 485 communicati CAN communication, DCS, PLC etc. interface.

7、Using the GPRS wireless data transmission function, can SMS report, remote diagnosis, remote cool scales and other functi

五、選型表Selection sheet

注:以上型號為標準規格，主從滾筒中.心距標準還有2500、3000、3500、4000等標準長度。非標型號可根據用戶要求定制。

Note: Above models are standard, standard master-sle roller center distance also have 2500, 3000, 3500, 4000 standard length. Non standard models can be customized according to user requirements.
