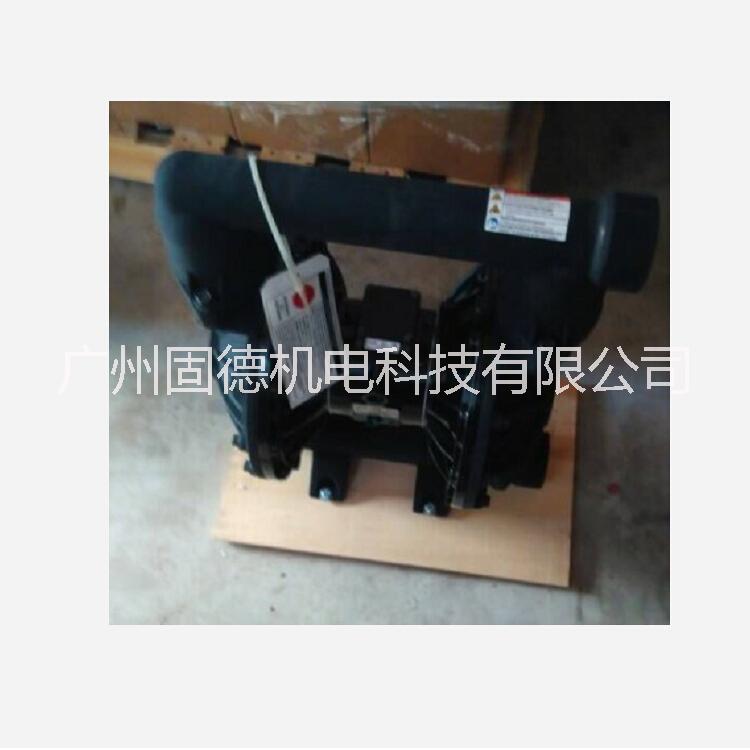

美國固瑞克Graco一級代理銷售husky 2150隔膜泵|鋁合金隔膜泵|污泥泵

graco一級代理商供應固瑞克2150氣動隔膜泵HUSKY隔膜泵

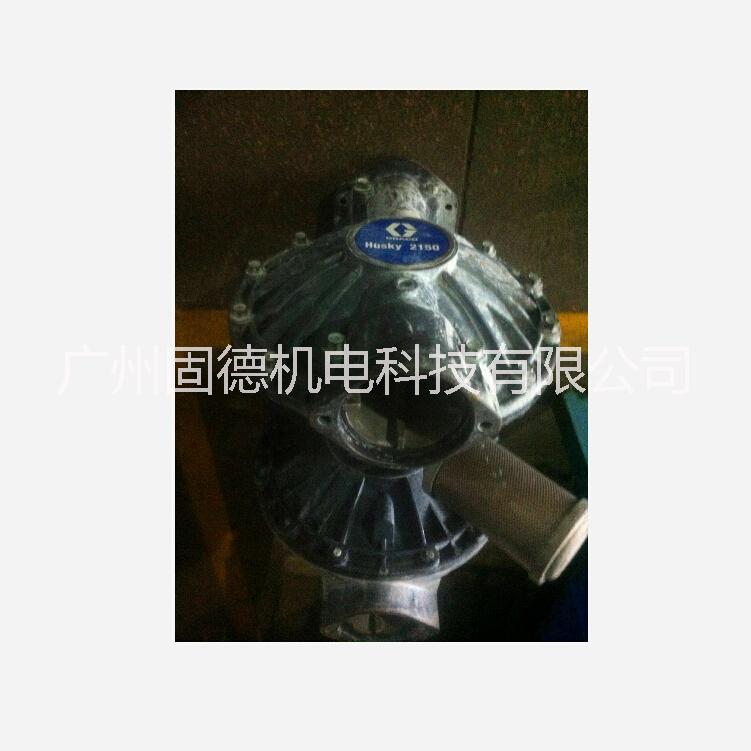

Husky 2150金屬泵

效能，物超所值

?流體壓力可達120psi

?的空氣閥，可在線維修，并無需打開內腔

?環氧涂層可抵御惡劣的工作環境

技術規格

工作流體壓力................................................................ 120 psi (8.4 bar,0.84 MPa)

工作空氣壓力范圍.............................................20-120 psi (1.4-8.4 bar，0.14-0.84 Mpa)

空氣消耗量.............................................................175 scfm (4.9 m3/min)

在70psi/60gpm情況下的空氣消耗量.........................................60 scfm (1.7 m3/min)

自由流量.................................................................. 568 l/min (34.08 m3/h)

往復速度....................................................................................145 cpm

每往復流量..............................................................................1.03 gal(3.90 liter)

自吸高度干抽DF3666 ........................................................................ 20 ft.(6.1 m)

根據閥座，球和隔膜的不同組合而變化

 輸送固體顆粒............................................................................. 1/4 in.(6.3 mm)

空氣進口尺寸....................................................................................... 1/2 in.npt(f)

流體進出口尺寸鋁，不銹鋼和鑄鐵..........................................................2 in.npt(f)

重量鋁...................................................................... 58 lbs.(26.3 kg)

不銹鋼........................................................................ 127 lbs.(57.6 kg)

鑄鐵............................................................................ 130 lbs.(59 kg

尺寸鋁,不銹鋼和鑄鐵..............................................17.5 in. W x 23.0 in. H* x 12.5 in. D(443.2 mm W x 584.2 mm H x 317.5 mm D)

安裝孔布局............................................. 6 in. (152.4 mm)x 6 in. (152.4 mm)
