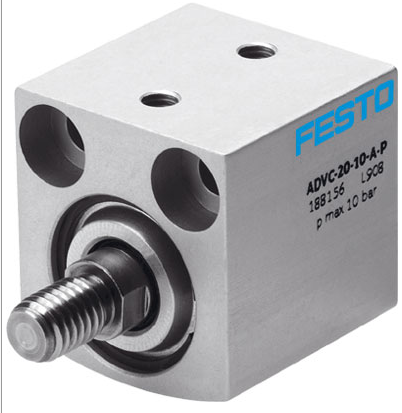

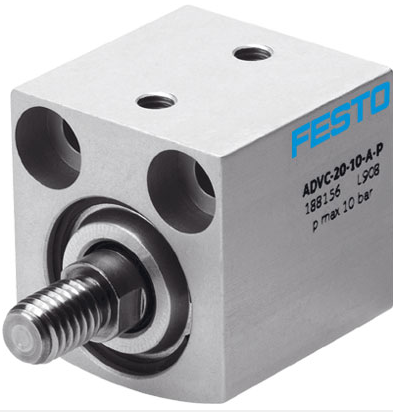

德國FESTO費斯托ADVC-25-10-A-P短行程氣缸 ADVC系列短行程氣缸

行程：10mm

活塞直徑：25mm

緩沖：P兩端帶彈性緩沖環/板

裝配位置：任意

工作模式：雙作用

設計結構：活塞、活塞桿

工作壓力：1.........10bar

工作介質：壓縮空氣符合ISO8573-1:2010 [7:4:4]

關于工作和先導介質的說明 ：可以使用經過潤滑的壓縮空氣 (一旦使用后要求一直使用經過潤滑的壓縮空氣)

耐腐蝕等級 CRC ：1

環境溫度 ：-20 ... 80 °C

6 bar時的理論作用力，回復行程：247N

6 bar時的理論作用力，進程 ：295N

移動質量：30g

產品重量：150g

安裝類型：可選帶通孔、帶附件

氣動連接：m5

材料備注：不含有黃銅和PTFE

蓋子的材料信息：鍛造鋁合金 陽極氧化處理

密封件材料信息：NBR TPE-U(PU)

外殼材料信息：鍛造鋁合金 陽極氧化處理

活塞桿的材料信息：高合金鋼

其他型號如下：

ADVC-4-2,5-A-P
ADVC-4-5-A-P
ADVC-6-5-A-P
ADVC-6-10-A-P
ADVC-10-5-A-P
ADVC-10-10-A-P
ADVC-12-5-A-P
ADVC-12-10-A-P
ADVC-16-5-A-P
ADVC-16-10-A-P
ADVC-16-15-A-P
ADVC-16-20-A-P
ADVC-16-25-A-P
ADVC-20-5-A-P
ADVC-20-10-A-P
ADVC-20-15-A-P
ADVC-20-20-A-P
ADVC-20-25-A-P
ADVC-25-5-A-P
ADVC-25-10-A-P
ADVC-25-15-A-P
ADVC-25-20-A-P
ADVC-25-25-A-P
ADVC-12-5-I-P
ADVC-12-10-I-P
ADVC-16-5-I-P
ADVC-16-10-I-P
ADVC-16-15-I-P
ADVC-16-20-I-P
ADVC-16-25-I-P
ADVC-20-5-I-P
ADVC-20-10-I-P
ADVC-20-15-I-P
ADVC-20-20-I-P
ADVC-20-25-I-P
ADVC-25-5-I-P
ADVC-25-10-I-P
ADVC-25-15-I-P
ADVC-25-20-I-P
ADVC-25-25-I-P
ADVC-4-2,5-P
ADVC-4-5-P
ADVC-6-5-P
ADVC-6-10-P
ADVC-10-5-P
ADVC-10-10-P
ADVC-12-5-P
ADVC-12-10-P
ADVC-32-5-A-P
ADVC-32-10-A-P
ADVC-32-15-A-P
ADVC-32-20-A-P
ADVC-32-25-A-P
ADVC-40-5-A-P
ADVC-40-10-A-P
ADVC-40-15-A-P
ADVC-40-20-A-P
ADVC-40-25-A-P
ADVC-50-10-A-P
ADVC-50-15-A-P
ADVC-50-20-A-P
ADVC-50-25-A-P
ADVC-63-10-A-P
ADVC-63-15-A-P
ADVC-63-20-A-P
ADVC-63-25-A-P
ADVC-80-10-A-P
ADVC-80-15-A-P
ADVC-80-20-A-P
ADVC-80-25-A-P
ADVC-100-10-A-P
ADVC-100-15-A-P
ADVC-100-20-A-P
ADVC-100-25-A-P
ADVC-32-5-I-P
ADVC-32-10-I-P
ADVC-32-15-I-P
ADVC-32-20-I-P
ADVC-32-25-I-P
ADVC-40-5-I-P
ADVC-40-10-I-P
ADVC-40-15-I-P
ADVC-40-20-I-P
ADVC-40-25-I-P
ADVC-50-10-I-P
ADVC-50-15-I-P
ADVC-50-20-I-P
ADVC-50-25-I-P
ADVC-63-10-I-P
ADVC-63-15-I-P
ADVC-63-20-I-P
ADVC-63-25-I-P
ADVC-80-10-I-P
ADVC-80-15-I-P
ADVC-80-20-I-P
ADVC-80-25-I-P
ADVC-100-10-I-P
ADVC-100-15-I-P
ADVC-100-20-I-P
ADVC-100-25-I-P
ADVC-6-5-A-P-A
ADVC-6-10-A-P-A
ADVC-10-5-A-P-A
ADVC-10-10-A-P-A
ADVC-12-5-A-P-A
ADVC-12-10-A-P-A
ADVC-16-5-A-P-A
ADVC-16-10-A-P-A
ADVC-16-15-A-P-A
ADVC-16-20-A-P-A
ADVC-16-25-A-P-A
ADVC-20-5-A-P-A
ADVC-20-10-A-P-A
ADVC-20-15-A-P-A
ADVC-20-20-A-P-A
ADVC-20-25-A-P-A
ADVC-25-5-A-P-A
ADVC-25-10-A-P-A
ADVC-25-15-A-P-A
ADVC-25-20-A-P-A
ADVC-25-25-A-P-A
ADVC-12-5-I-P-A
ADVC-12-10-I-P-A
ADVC-16-5-I-P-A
ADVC-16-10-I-P-A
ADVC-16-15-I-P-A
ADVC-16-20-I-P-A
ADVC-16-25-I-P-A
ADVC-20-5-I-P-A
ADVC-20-10-I-P-A
ADVC-20-15-I-P-A
ADVC-20-20-I-P-A
ADVC-20-25-I-P-A
ADVC-25-5-I-P-A

德國FESTO費斯托氣缸ADVC-80-10-I-P

ADVC-25-10-I-P-A
ADVC-25-15-I-P-A
ADVC-25-20-I-P-A
ADVC-25-25-I-P-A
ADVC-6-5-P-A
ADVC-6-10-P-A
ADVC-10-5-P-A
ADVC-10-10-P-A
ADVC-12-5-P-A
ADVC-12-10-P-A
