PEMS

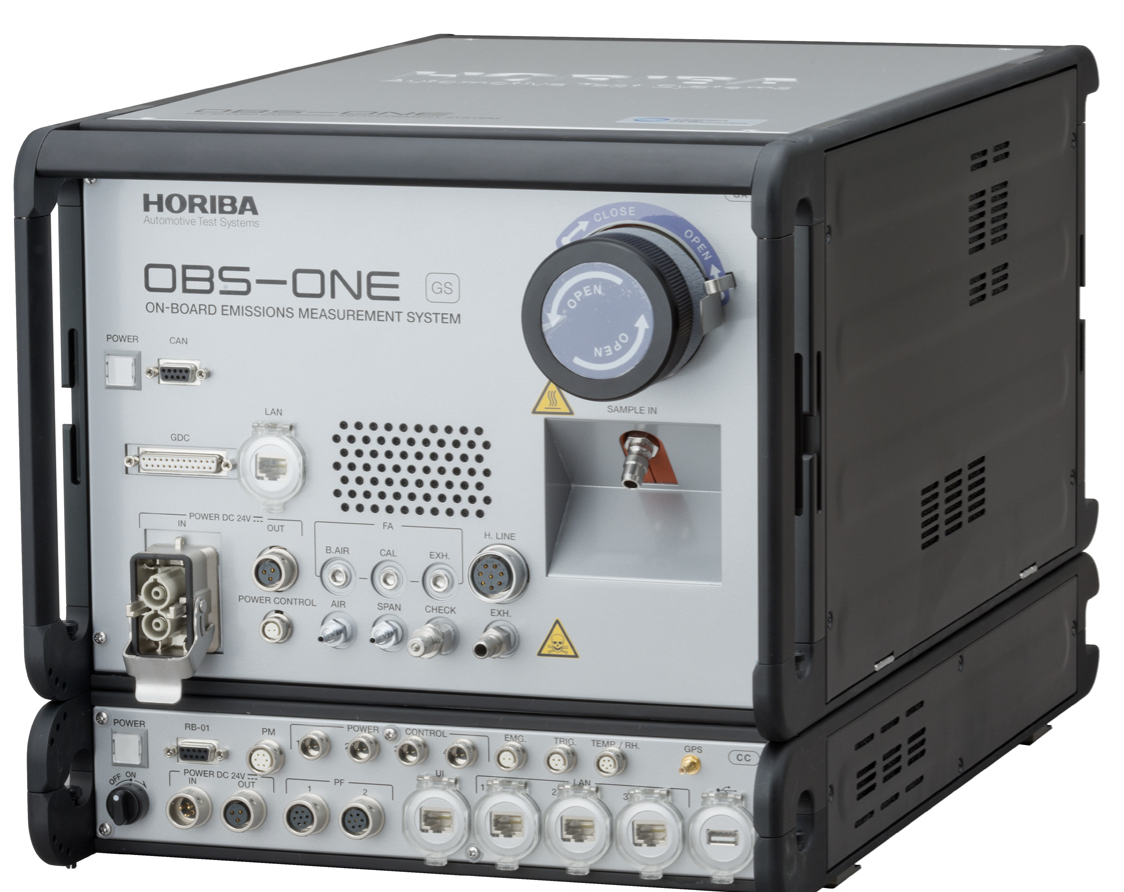

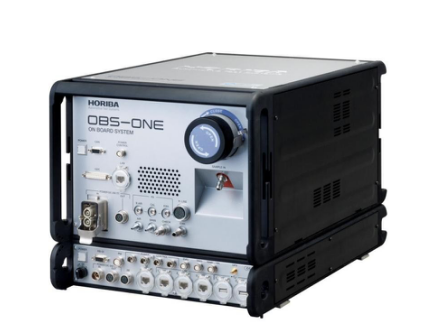

Exhaust gas measurement OBS-ONE-GS12

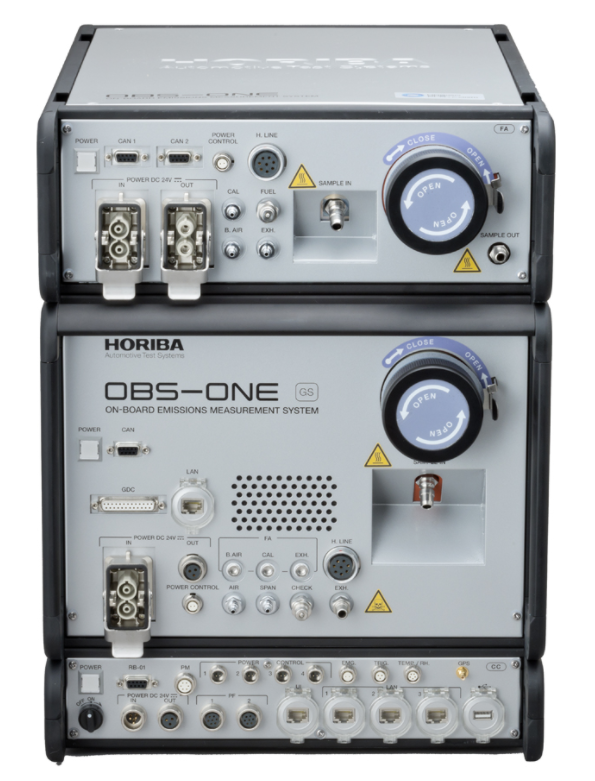

OBS-ONE-PN

2. SCOPE OF SUPPLY 供貨范圍

車載排放分析系統

Others 其 他

GENERAL 概述

Unique salling points 特點

? Since more than 60 years HORIBA provides his own analyzers and boards and guarantees the ailability of spare parts at least 10 years after discontinuation.

擁有超過 60 年歷史的 HORIBA，所有分析單元均為 HORIBA 生產制造，可以保證分析

儀及其零部件的供應，完全有能力保證在設備停產后至少 10 年的備件供應

? Using many common parts of MEXA-ONE, MEXA-7000 and OBS-2000. No need to re-acquire parts for OBS-ONE. This means lower operating costs.

與 MEXA-ONE, MEXA-7000 和 OBS-2000 很多零件可以共用，從而降低使用成本。

? Pitot pressure method of measuring the volume flow. By means of very rapid pressure sensors of flow, especially at idle, is exactly measured and calculated (HORIBA patent).

采用 HORIBA 技術的新型皮托管壓力法測量汽車排氣流量

，怠速時排氣流量的測

量精度也可以得到保證。

? No cooler, therefore shorter response times.

沒有冷凝器，可以縮短響應時間。

? Semi-vacuum-type analyzers. Reduction of the heated zones by means of a cold and lighter pump and. Power consumption 200W (LDV) and thus longer run time with one battery charge.

半真空式分析儀。通過降低了加熱區域， 使得動力消耗更節省， 功率小于 200W

（LDV）。電池一次充電后可以設備運行時間更長。

? Hot and wet measurement of components (HORIBA patent). Direct water correction by simultaneous measurement of water.

所有分析單元采用加熱濕式分析單元（HORIBA ）。并且測量出排氣中的水的濃度，

用于修正 CO/CO2/th

/NOx 的測量結果，使測量結果更準確，精度更高。

? A CLD is very good in the low conceation range (ppb) and conform to regulation. Direct compensation of the CO2 and H2O conceations. Without cooler no loss of N2O. Required ozone is generated from the ambient air.

HORIBA CLD 在低濃度時也有非常好的測試精度，并且采用 CO2 和 H2O 濃度

進行修正。由于沒有冷凝器，因此對于 N2O 也沒有損失。測量過程中所需要的 O3 由

設備采用空氣生成，因此無需額外配備 O2 氣體

所有后處理的數據可以儲存在 OBS-ONE 主機中，即便控制電腦丟失或損壞，數據依然

得到保護。
