標題:光伏組件的太陽能電池接線盒4平方線帶MC4連接器

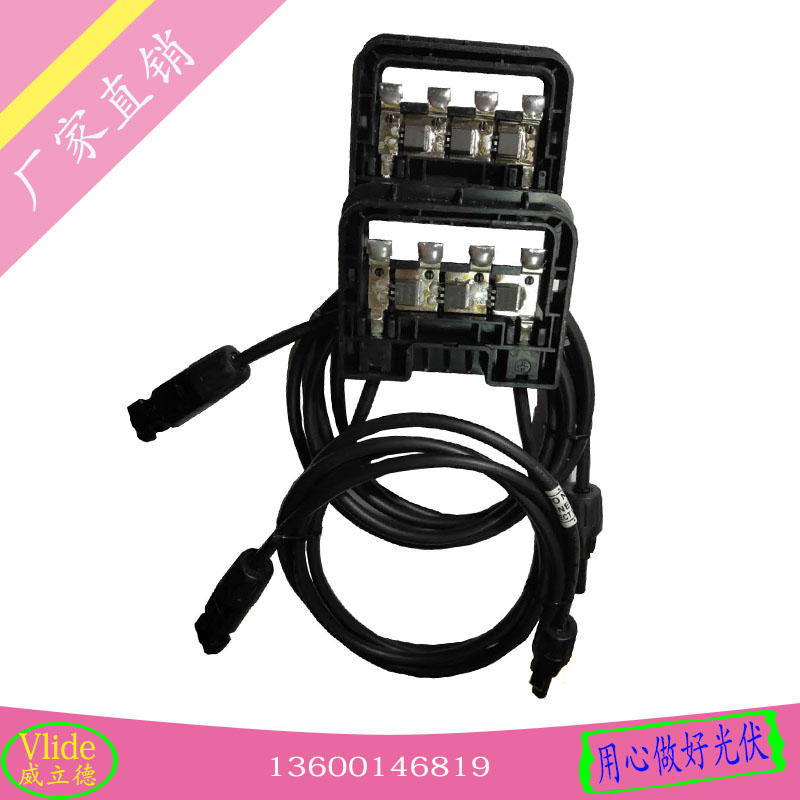

光伏組件的太陽能電池接線盒4平方線帶MC4連接器
?盒蓋背后平坦部分用于膠水的粘貼,盒蓋必須要使用工具才能打開(螺絲刀);
Rear side plane for adhesive mounting,housing not to be opened without tool(screw driver);
?高電流承截能力;
High current carrying capacity;
?良好的熱平衡性;
Good thermal balance;
?此產品具有抗紫外線和高等級接觸保護的能力;
Due to highly robustness,UV-resistance,the touch protection a high grade connection is guaranteed for many years;
?可提供2~4軌輸入連接;
Privide the input connector of 2~4 Rail;
Technical Data 技術數據:
Rated current額定電流 10A~15A
Rated voltage額定電壓 DC1000V(T?V ), DC600V(UL)
Number of bypass diodes二極管個數 3
Connection cross-section線纜截面 4m(T?V) AWG10~14 (UL)
Temperature range溫度范圍 -40℃ up to +110℃
Protetion degree防護等級 IP65
uitable connector 適配連接器規格 MC3 or MC4
Flame class 阻燃等級 UL94-V0
Contact material 接線盒導軌材料 Copper,Tin plated銅,鍍錫
Insulation material 接線盒絕緣材料 PPO
Safety class 安全型 ║
