Machine I/O

DS60 Series
The Machine I/O, RS OEMax DS60 Series are distributed IO for optimizing system connection
The DS60 Series are distributed I/O products with the defacto global standard, the DeviceNet
specifications. The DS60 Series allow simple configuration of open type cool systems that
allows easy integration of multiple systems including PC, PLC and HMI devices.
Configure upgraded open type distributed I/O system
- Reduce wirings through single wiring.
- Fast and convenient installation and maintenance
- Multiple vendor compatibility that allows wider range of product selection
- Proven reliability through application in semiconductor/FPD equipment
Optimized solution for device cool
- Compact size minimizes installation space
- Flexible expandability up to 64 nodes with maximum of 80 points per node
- Diverse I/O types (DC/AC input, Relay, TR, SSR output and Analog I/O)
- Select between T/B terminal and D-SUB connector
All products are certified to international specifications

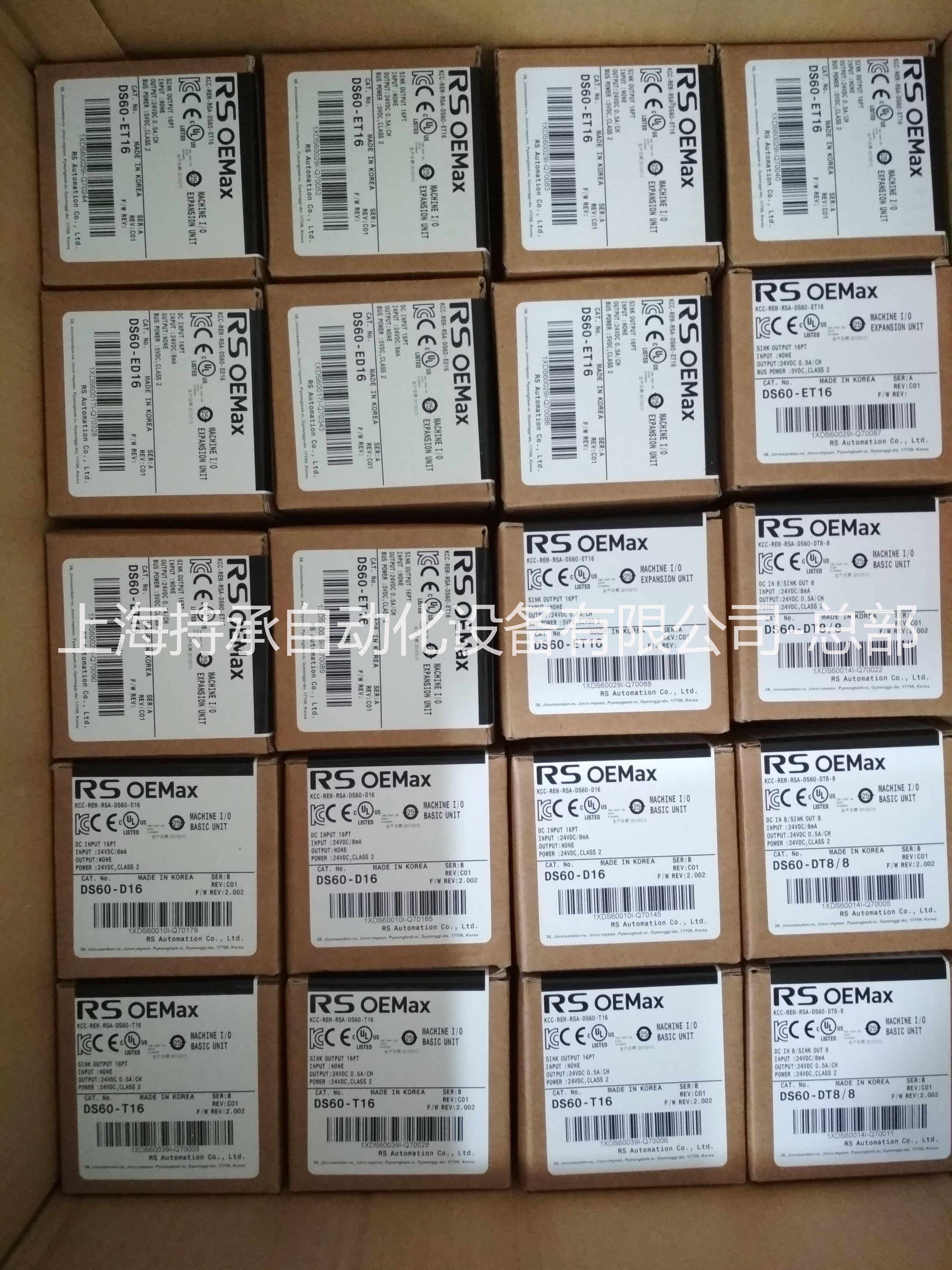

DS60 Series Product List
D32 Basic, Input Module, DC24V IN 32 Points, RTB
T32 Basic, Output Module, TR (NPN) OUT 32 Points, RTB
R16 Basic, Output Module, Relay OUT 16 Points, RTB
DT16/16 Basic, Mixed Module, DC24V IN 16 Points, TR (NPN) 16 Points, RTB
D16(D) Basic, Input Module, DC24V IN 16 Points
T16(D) Basic, Output Module, TR (NPN) OUT 16 Points
P16(D) Basic, Output Module, TR (PNP) OUT 16 Points
DT8/8(D) Basic, Mixed Module, DC24V IN 8 Points, TR (NPN) 8 Points
DP8/8(D) Basic, Mixed Module, DC24V IN 8 Points, TR (PNP) 8 Points
I Basic, Analog Voltage IN 4CH
ACI Basic, Analog Current IN 4CH
O Basic, Analog Voltage OUT 2CH
ACO Basic, Analog Current OUT 2CH
RT4 Basic, RTD IN 4CH
TC4 Basic, TC IN, 4CH
ED16(D) Expanded, Input Module, DC24V IN 16 Points
ET16(D) Expanded, Output Module, TR (NPN) OUT 16 Points
EP16(D) Expanded, Output Module, TR (PNP) 16 Points
ER8(D) Expanded, Output Module, Relay 8 Points
EDT8/8 Expanded, Mixed Module, DC IN 8 Points, TR (NPN) 8 Points

EDP8/8 Expanded, Mixed Module, DC IN 8 Points, TR (PNP) 8 Points

DeviceNet Specifications
Network Protocol I/O Sle messaging
Poll Strobe, Cyclic, COS Command
Network Length 500m @ 125Kbps
250m @ 250Kbps
100m @ 500Kbps
Network Node 64 Node
Isolation I/O and inside : Photocoupler
DeviceNet and inside : Non-isolation
Power Rated voltage:24Vdc nominal
Voltage range : 11 - 28.8 VDC
Power consumption : Max 1.5W
Authorization CE (Europe), UL (USA), RCM (Australia)
ODVA Conformance Certification
Machine I/O
EC60 Series
The EC60 Series are I/O products which cool the EtherCAT. The EC60 Series allow easy
configuration of various solutions cool of PC, PLC, and Stand-Alone cooller.
Designed for field work environment
- Din-rail and Panel mounting
- Excellent self-diagnostic function such as status diagnosis of input/output and network
- Easy of Use (Built-in I/O protection circuit, Cabling convenience by removable terminal
block)
Optimized solution for device cool
- Compact size that minimizes installation space requirement
- Flexible I/O configuration
- Diverse I/O types
- Various user actions can be set according to the fault
- All products will be certified to international specifications
- Extended functions(Max. 64 Points)
EC60 Series Product List
D16 Base, Input Module, DC 24 IN 16 Points, RTB
T16 Base, Output Module, TR(NPN) output 16 Points, RTB
DT8/8 Base, Combo Module, DC24V IN 8 Points, TR(NPN) output 8 Points, RTB
I8 Base, Analog Voltage IN 8CH, RTB
ACI8 Base, Analog Current IN 8CH, RTB
RT4 Base, RTD IN 4CH, RTB
TC4 Base, TC IN 4CH, RTB
AO4 Base, Analog Voltage/Current Output 4CH, RTB
DNM_PCIx Series
DNM_PCIx Series, the DeviceNet Master Card for Easier Network Machine Cool.
- Provide the Peer-to-Peer Explicit Messaging
- Support the standard velocity of DeviceNet
· 124Kbps / 500m
· 250Kbps / 250m
· 500Kbps / 100m
- Provide the Variable Messaging Mode for Efficient Data Exchange
· Change-of-state(COS)
· Cyclic
· Polling

· Bit/Strobe

ECM_PCIx Series
ECM_PCIx Series, the EtherCAT Master Card for Easier Network Machine Cool.
- Provide the Peer-to-Peer Explicit Messaging
- Support Self-diagnostic of EtherCAT Function
· Check the information of Master Card
· Check the status of device and network
· Check the error occurrence and error code
· Transfer the sle status, I/O data and messaging data
- Support Manual Setting of Data Size for Efficient Data Utilization
AnyTouch V9+ Series
Inherit the AnyTouch V8+ and it is the best performance premium Touch Panel which exists and
was born through the redesign of the system.
Depend on the changes and trends in the worldwide paradigm, enhanced the connectivity with
Network features and Mobiles.
It boasts Massive information output, data transaction, and sophisticated of user GUI which
never seen in previous unit.
- Powerful Performance (Screen Memory 64M, Backup Memory 800KB)
- Network and Security (Support Dual LAN Port, Wireless, functions)
- Connectivity with Mobiles (Data share through VNC function
- Massive information output (4 times larger screen data output)
- User GUI (Beautiful screen transaction and convenience features)
- Progress development and operating environment (Enlarge overlap such as Pinch
In/Out, Scroll operating)
- Simple Data Log and Viewer
- Diversification of Touch Sensor (Support of Capacitive Sensing and Analog resistance
film)
AnyTouch V8+ Series
Full-color and graphics accelerators of the V8 + series enables realistic 3D representation.
The V8 + series comes standard with Ethernet from 15 inches to 12, 10, 8, and 6 inches. It is
also divided into standard V8 + series and high-end V8i + series with display video and play
audio. It defines the new criteria for touch screen by providing the high quality network
solution which networking the production data across the factory plant.
Outstanding features of AnyTouch V8+ Series
- Realistic display of photos and illustrations in full color
- Support more than 150 PLC Driver such as Ethernet, Internet, and Field network
communication, etc. and more than 300 Driver for Temperature cooller and Inverter
(First in Industry)
- 8-way communication
- Se various data with Compact Flash(CF) card
- Optimal solution from 5.7 inch to 15 inch display with QVGA, VGA, SVGA, VGA resolution
- V-SFT Plus, screen editing software that maximizes user convenience
- Easy to create high quality animation
AnyTouch W8+ Series
AnyTouch W8+ Series with Precise Cool and Convenient Monitoring
Economical Price and High Performance
- High resolution display of 65,536 colors without blinks
- Display of 30fps video image in 16milion colors
- Memory : Flash ROM 10.5MB(2.5MB※) / SRAM 128KB(215KB※)
※ Different Memory Size for W806+ Series
Expandability
- 8 Way Communication
- USB 2 Ports (MasterA/SleB)
- 100Base-TX Ethernet Port (W806iCD+, W807iCD+, W810iCD+)
- Support network camera (W806iCD+, W807iCD+, W810iCD+)
- 16 grade securities
- Ladder diagram read/write on PC through W8+ (USB or Ethernet)
- Support 16 languages
- Remote Desktop (W806iCD+, W807iCD+, W810iCD+)
Cat. No Power Supply Digital InPut Digital OutPut
X8-M32DDT 24VDC DC 16pts Sink out 16pts
X8-M16DDR 24VDC DC 8pts Relay 8pts
X8-M14DDT 24VDC DC 8pts Sink out 6pts
NX7R-28ADR AC100/220V DC 16pts Relay 12pts - -
NX7R-28ADT AC100/220V DC 16pts TR(Sink) 12pts
MOSCON-F50
The MOSCON-F50 Series feature 32-bit micro processors and the latest sensorless vector cool
that outputs high torque and high performance with multiple function cools.
It is equipped with essential peripheral devices and standard communication features, constant
groups for each function, and various status monitoring features. It allows easy system

configuration and operation and its compact and light design simplifies installation,

maintenance and changing parts.
- High performance and multiple cool functions through 32-bit RISC micro processor
- Optimal performance through sensorless vector cool and auto tuning
- Optimal acceleration/deceleration cool through fully automated torque
compensation and stall prevention for preventing motor stall
- Reduce system configuration cost and improve convenience with built-in dynamic
braking device
 This model is discontinued, so please contact Customer Center (1588-5298) for
further information.
