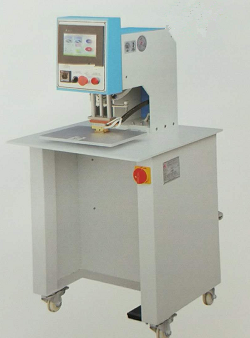

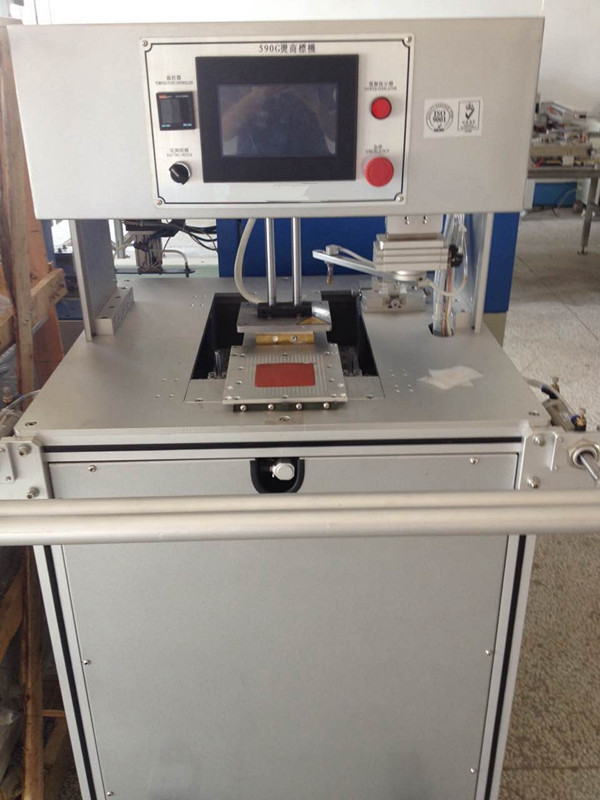

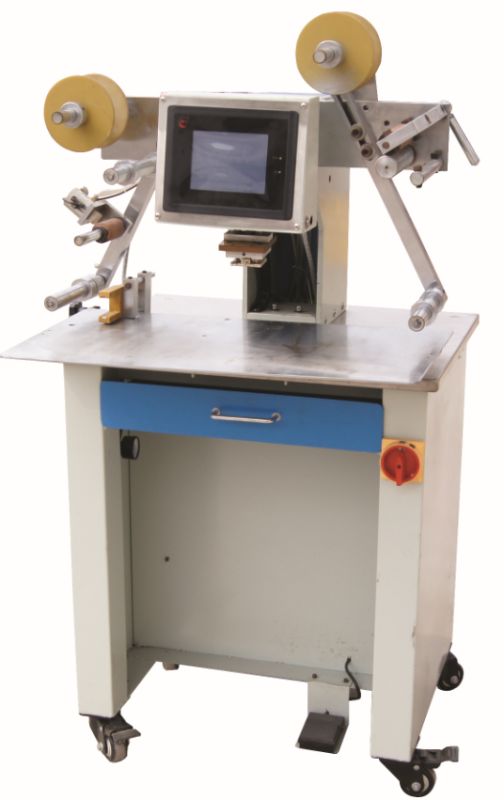

半自動燙商標機鞋機設備制鞋鞋機TPU印標機

一、機器特點(Product features)：

1、人機界面智能化，操作簡便；

1、intelligent man-machine interface.easy to operate;

2、自動辨色、定位精度高：采用德國勞易測色標傳感器定位，可自動分辨7種顏色，定位準確，，誤差在±0.02mm之內；

2、automatic color.high itioning accuracy:the German Leuze color sensor itioning,automatic Resolution of 7 colors.accurate itioning.within the error of 0.02mm;

3、獨特誤燙功能：在無料的情況下，壓燙模會自動停止壓燙；

3、unique features:in the absence of material.the press will automatically stop pressing hot;

4、運行穩定：采用日本靈通步進馬達，圈標、送標穩定可靠；

4、stable operation:Japan informed the stepping motor and the ring standard.the feeding is stable and reliable;

5、工頻隨意調節、噪音?。翰捎盟欧R達送料，準確噪音小，送料準確、誤差在±0.02mm之內，無級調速，送料速度可隨意調節。

5、power frequency random ad justment.noise is small:the use of servo motor feeding.accurate noise is small.feeding The error is within +0.02mm.stepless speed regulation.feeding speed can be ad justed freely.

二、機器參數(Equipment parameters)：

機型（Model）:ZT-590C

熱轉印溫度(Heat transfer temperature)：100-180±3?C        電壓(Voltage)：AC220V50HZ

加熱輸出功率(Heating output power)：0.5KW              總功率(Total plwer)：1KW

生產能力(Throughput)：900-1200片/小時                     氣源壓力(Air pressure)：0.4-0.6mpa

機械凈重(Machine weight)：155kg                            外形尺寸(Outline dimensions)：890*670*1480mm

三、產能對比：

采用590C機臺，一人操作一臺設備，光線定位，定位精準效率快。是傳統工藝的2倍效益（可節省裁剪商標的工序）。按每月人工成本2500元計算，那么一年的人工成本是2500*12=30000.使用590C機臺按每臺設備至少可節省2人，則一年能省2*30000=60000元。

Coast:the use of 590C machine.one person operating a device.lightitioning.itioning precision Fast efficiency.is the traditional process of 2 times the efficiency(can se the cutting mark of the process).Monthly labor Cost 2500yuan calculation.then a year of labor cost is 2500*12=30000. the use of 590C Taiwan according to each device can se at least 2 people.then a year can se 2*30000=60000yuan.
