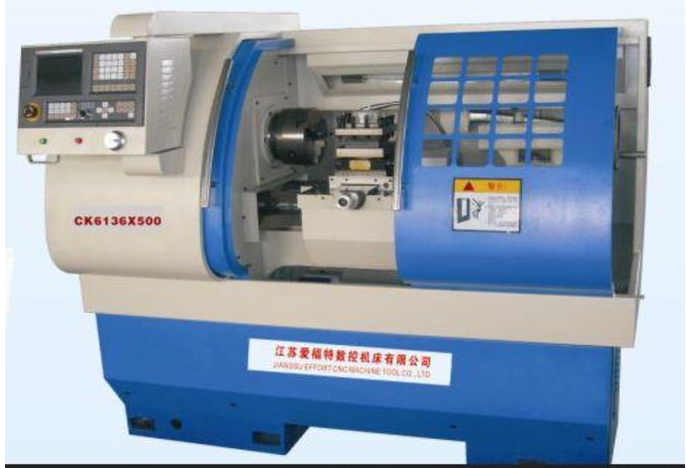

本機床是用數控系統控制的兩坐標數控車床，適用于軸類及盤套類零件的加工，可以切削內外圓柱面、端面、任意錐面、圓弧面等各類幾何表面，根據用戶需要加裝編碼器還可進行螺紋切削，還可以進行切槽、鉆孔、擴孔、鉸孔及鏜孔等加工。能自動完成對零件的外圓、端面、倒角、切槽等工序的連續加工，尤以加工臺階或帶錐度及圓弧等復雜表面的零件，更能顯示其優越性。

本機床主運動為變頻器主電機無級變速，進給運動為交流伺服或五相步進電機控制，根據需要可選配4，6工位刀架及排刀。

本機床設計合理，性能優良，加工效率高，精度穩定性好，操作方便，使用安*，是現代工業理想的加工設備。

主要技術參數

1. 床身上大工件回轉直徑      ·······························  360mm

2.滑板上大工件回轉直徑       ·······························  200mm

3.大車削長度                 ·······························  500mm

4.主軸箱

⑴ 主軸轉速級數            ·······························  無級

⑵ 主軸轉速范圍            ·······························  200～2500r/min

⑶ 主軸頭形式              ·······························  6號  A2型

⑷ 主軸定心軸項錐度        ·······························  1：4

⑸ 主軸錐孔                ·······························  莫氏6＃

⑹ 主軸通孔直徑            ·······························  φ60mm

⑺ 主軸中心高              ·······························  188mm

5. 進給及脈沖當量

⑴ X向移動速度            ·······························  0～6000mm/min

⑵ Z向移動速度            ·······························  0～8000mm/min

⑶ X向脈沖當量            ·······························  0.001mm/脈沖

⑷ Z向脈沖當量            ·······························  0.001mm/脈沖

6. 卡盤

驅動方式                   ·······························  手動（液壓或氣動）

7. 刀架

    ⑴ 工位數                  ·······························  4或6

    ⑵ 主軸中心線至

刀*支撐面距離          ·······························  20 mm

    ⑶ 刀*截面尺寸            ·······························  20?20 mm /25×25mm

8. 主電機

    ⑴ 型號                    ·······························  YP-50-5,5-4-B5

    ⑵ 功率                    ·······························  4KW

    ⑶ 轉速                    ·······························  1500r-min

9. X向⑴ 步距角               ····························   0.72。

 ⑵ 功率                ·······························1KW

⑶ 大靜轉距           ······························ 10N.M

10. 冷卻泵

⑴ 型號                ·······························  AB－25

⑵ 功率                ·······························  90W

⑶流量                  ······························  25

         11. 主傳動帶

⑴ 型號                 ·······························  B-2000

⑵ 根數                 ·······························  3

         12. 機床外形

長X寬X高   ·········  1855mmX1250mmX1466mm

         13. 重量

機床凈重              ·······························  1500kg

         14. 尾架

⑴ 尾架套筒直徑        ·······························  55mm

⑵ 尾架套筒大行程    ·······························  120mm

⑶ 尾架套筒錐孔        ·······························  莫氏4號
