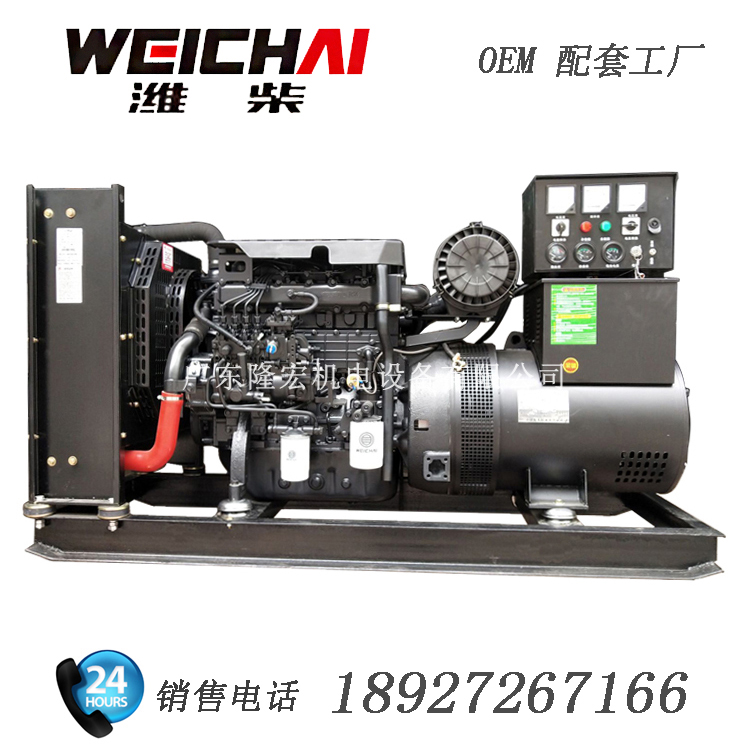

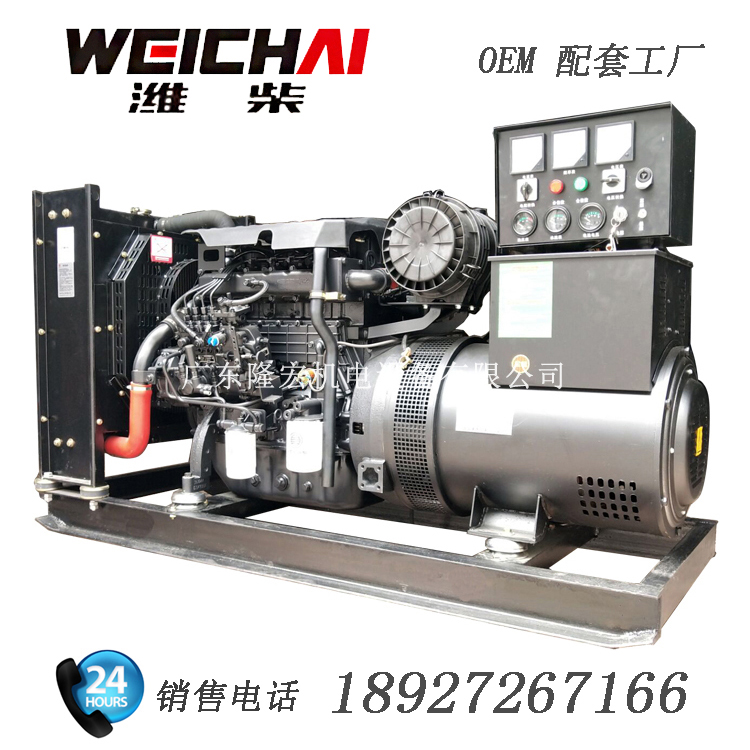

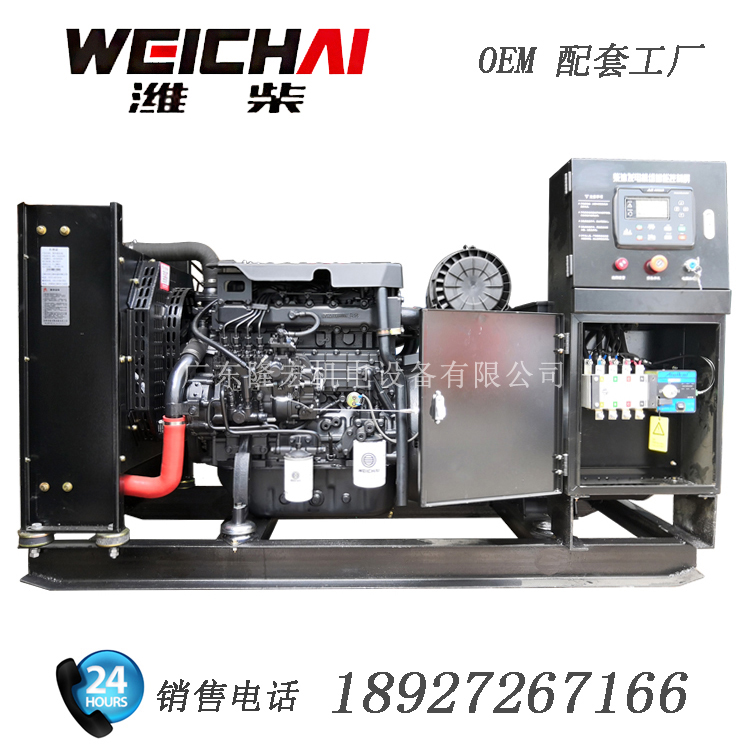

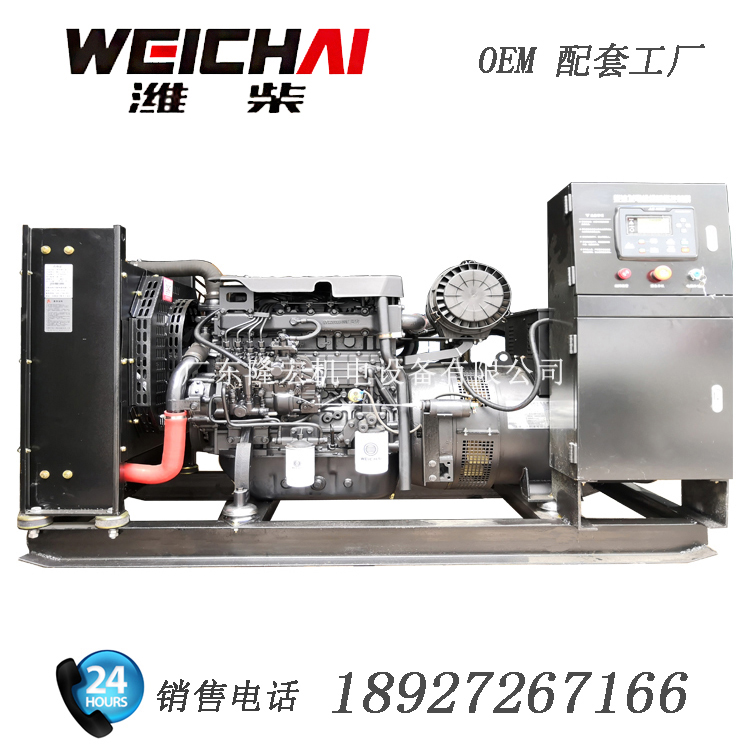

| 50KW(62.5KVA)濰柴動力柴油發電機組技術參數 WP4.1D66E200 | |
| 50kw (62.5KVA) weichai power generator set technical WP4.1D66E200 | |
| 發電機組參數(Generating set data): | |
| 發電機組制造商: | 廣東隆宏機電設備有限公司 |
| Generator factory: | Guangdong LongHong Electrical Equipment Co., |
| 發電機組型號: | GF-50 |
| Generating set number: | |
| 機組額定功率: | 50KW |
| The unit power: | |
| 機組額定容量: | 62.5KVA |
| Unit capacity: | |
| 機組額定電流: | 90A |
| The unit of current: | |
| 機組額定電壓: | 400V/230V(可生產不同的電壓) |
| The unit of voltage: | 400V/230V (We can do different voltage) |
| 額定頻率: | 50Hz |
| The unit of frequency: | |
| 額定轉速: | 1500rpm |
| The unit of revolution: | |
| 功率因素: | 0.8 滯后 |
| Power factor: | 0.8 lagging |
| 燃油消耗率: | ≤205g/kW·h |
| The rate of fuel consumption: | |
| 調試方式: | 機械調速 |
| Debugging techniques: | Mechanical |
| 機組尺寸: | 1950×750×1200(mm) |
| The unit size: | |
| 機組重量: | 880KG |
| The unit weight: | |
| 發動機參數(Engine data): | |
| 發動機品牌: | 濰柴動力/濰柴動力股份有限公司 |
| Engine plant: | weichaipower / Weichai Power Co Lt |
| 發動機型號: | WP4.1D66E200 |
| Engine type: | |
| 發動機功率: | 66KW |
| Thepoweroftheengine: | |
| 氣缸型式: | 4缸L列、4沖程 |
| Number of cylinders form: | 4 L, 4 stroke |
| 缸徑*行程: | 105×118(mm) |
| Bore*stroke: | |
| 吸氣方式: | 渦輪增壓 |
| Aspiration | Turbo |
| 調試方式: | 機械調速 |
| Speed way: | Mechanical |
| 額定轉速 | 1500rpm |
| revolutions: | |
| 燃油消耗率: | ≤205g/kW·h |
| Fuelconsumptionrate: | |
| 排量: | 4.088L |
| Displacement: | |
| 冷卻方式: | 強制水冷 |
| Water,: | Water/air cooling |
| 調試穩定性: | ≤5% |
| Debuggingstability | |
| 啟動方式: | DC24V |
| Start the way: | |
| 發電機參數(The generator data): | |
| 發電機品牌: | 隆宏發電機/廣東 |
| The generator manufacturer: | Long macro generator/guangdong |
| 發電機型號: | TFW2-50-4 |
| The generator data: | |
| 額定功率: | 50KW |
| power: | |
| 額定電壓: | 400V/230V |
| Voltage: | |
| 額定電流: | 90A |
| Current: | |
| 額定頻率: | 50Hz |
| Frequency: | |
| 額定轉速: | 1500rpm |
| Speed: | |
| 勵磁方式: | 全銅線無刷 |
| Excitation method: | The copper wire brushless |
| 電壓調整范圍: | ≥5% |
| Voltage regulation range | |
| 電壓波動范圍: | ≤±5% |
| Voltage fluctuation range: | |
| 絕緣等級: | H |
| Insulation series: | |
| 防護等級: | IP21 |
| Protection level: | |
| 機組電氣性能: | |
| 穩定電壓調整率 | ≤2.5 |
| 瞬態電壓調整率 | ≤(-15~+20) |
| 電壓穩定時間 | ≤1S |
| 電壓波動率 | ≤0.5 |
| 穩態頻率調整率 | ≤10 |
| 瞬態頻率調整率 | ≤(-7~+10) |
| 頻率恢復時間 | ≤3S |
