全自動線材調直機 線材自動調直機

SC系列鐵線調直切斷機

SC Series Automatic Wire Straightening and Cutting Machine

主要功能與應用

1． 該設備主要用于將圓或扁的鐵線，不銹鋼線，鍍鋅線，鋁線，銅線等自動調直，按照設定長度自動切斷。

2． 有傳統機械式和數控液壓式兩種。

3． 傳統機械式鐵線調直切斷機，手動設定調直切斷長度，操作和維護都比較簡單，主要用于調直切斷直徑小于10mm的鐵線。

4． 數控液壓鐵線調直切斷機，加工性能較強，自動化程度高，數控 設定調直長度，并設有安全裝置，自動計數停機系統。主要用于調直切斷建筑用螺紋鋼筋及圓鋼等。

Main Features and Applications

The equipment is mainly used for automatically straighten round or flat wire, stainless steel wire, galvanized wire, aluminum wire, copper wire, and cut automatically according to the preset length.

There are two kinds of models:Traditional Mechanical Model and Numerical Cool Hydraulic Model

“Traditional Mechanical Model Automatica Wire Straightening and Cutting Machine”,need to set the straightening and cutting length manually,then the machine wil do that automatically.

Operation and maintenance are simple.It is mainly used tor straightening and cutting the wire with diameter less than 10mm

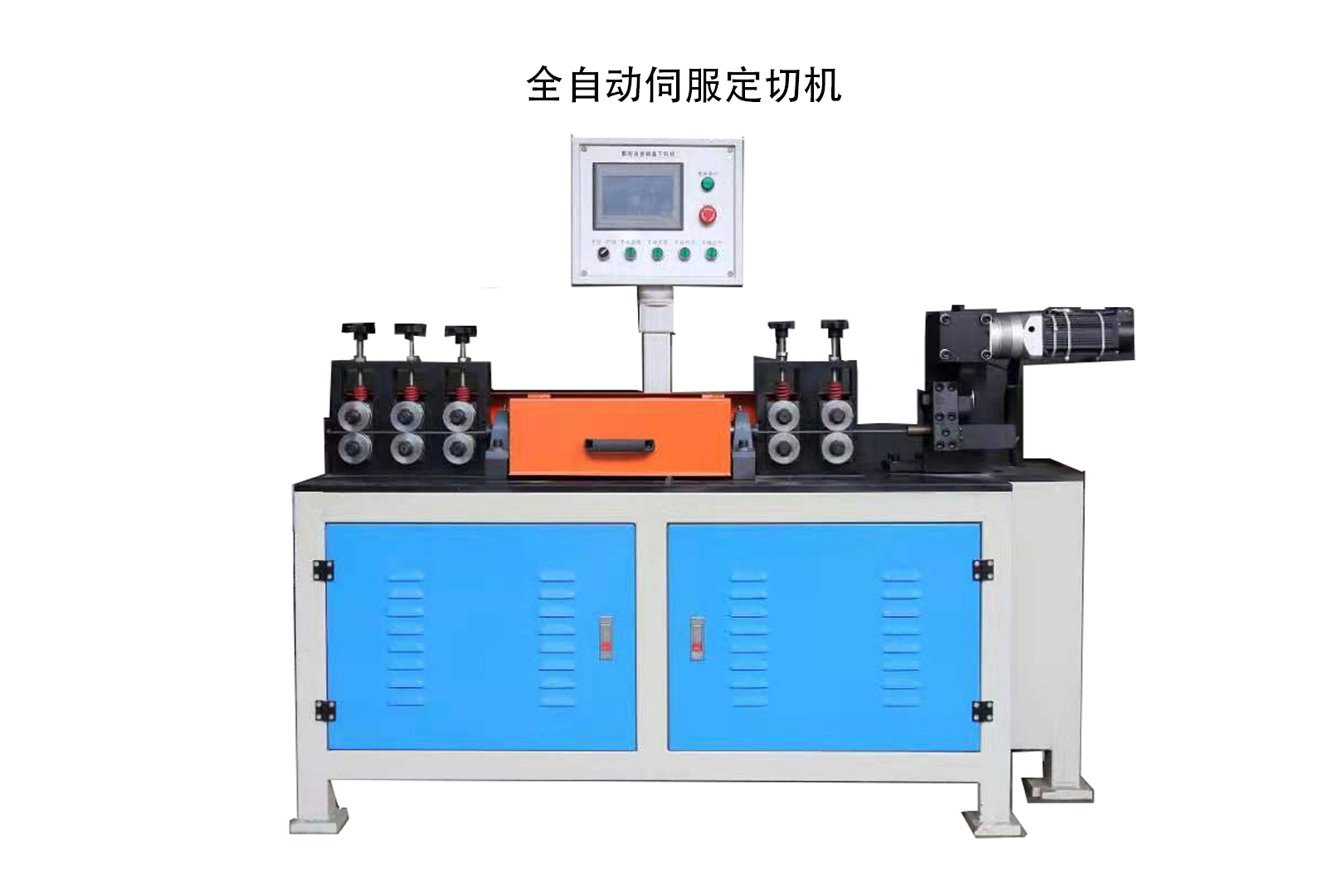

“Numerical Cool Hydraulic Model Automatica Wire Straightening and Cutting machine”,

processing performance is strong, any length of wire,high degree of automation,

automatically set straightening and cutting length, adopted with the safety device and automatic counting& stop system, Mainly used for straightening and cutting building cold-rolled steel wire and rebar, hot=rolled stee wire, hot-rolled round steel wire and cold-rolled steel bar etc.

主要技術參數Main Technical Parameter
