醇沉罐攪伴罐 不銹鋼醇沉罐 乙 醇醇沉淀攪拌罐 酒精沉淀罐

酒精沉淀罐-醇沉罐Alcohol Settling Tank - Alcohol Settling Tank

用途Purp o se

      本設備適用于中藥、口服液、食品、保 健 品、化工等的酒精沉淀，酒精沉淀罐系醇沉(亦稱換溶或醇桿)舊工藝開發的專 用設備，主要用于中藥水煎液濃縮后進行冷凍酒精沉淀的操作，也可用于中藥濃縮液進行水沉淀的操作。

This equipment is suitable for alcohol precipitation of traditional Chinese medicine, oral liquid, food, health products, chemical industry, etc. the alcohol precipitation tank is a special equipment developed by the old process of alcohol precipitation (also known as solution exchange or alcohol rod). It is mainly used for freezing alcohol precipitation after the concen t ration of Chinese medicine decoction, and can also be used for water precipitation of Chinese medicine concen t rate.

設備特點Equipment Characteristics

本設備是由內罐體、夾套、橢圓封頭、錐形底封頭、攪拌系統以及特殊的微調旋轉出液管等組裝而成。

中藥水煎濃縮液酒精配成一定醇度的液體，然后常溫或低溫冷凍沉降進行液固分離，以提高中藥提取液的純度及澄明度。

本設備全部選用不銹鋼SUS304制造，配有高壓水自動噴淋清洗系統，夾套中可通低溫冷卻水，傳動部位采用機械密封、防爆電機確保生產安全，符合GMP醫藥標準，設備表面鏡面或亞光處理。

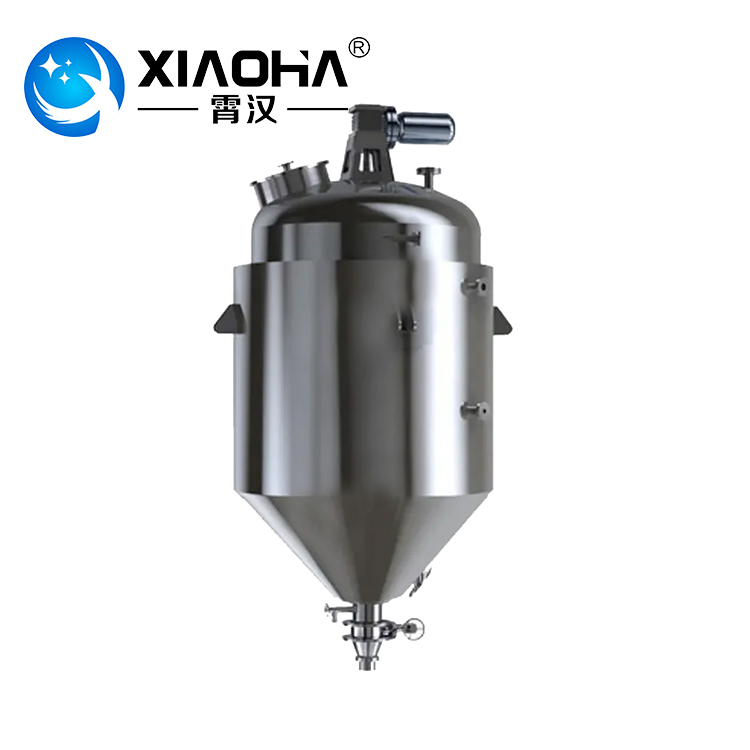

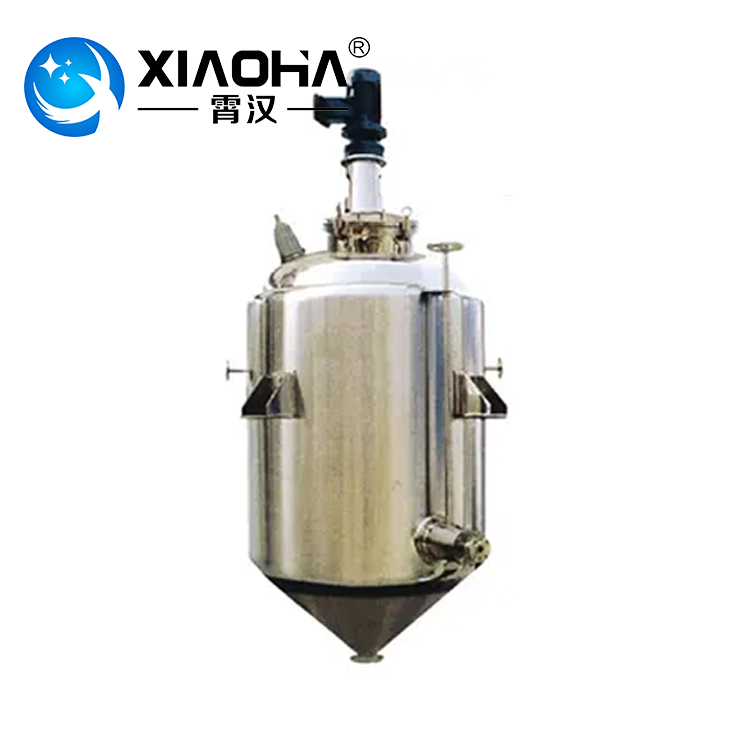

The equipment is com p o sed of inner tank, jacket, elliptical head, conical bottom head, mixing system and special fine-tuning rotating liquid outlet pipe.

The concen t rated decoction of traditional Chinese medicine is made into a liquid with a certain alcohol degree, and then frozen and settled at room temperature or low temperature for liquid-solid separation, so as to improve the purity and clarity of the extract of traditional Chinese medicine.

The equipment is made of stainless steel SUS304 and equipped with high-pressure water automatic spray cleaning system. The jacket can be filled with low-temperature cooling water. The transmission part adopts mechanical seal and explosion-proof motor to ensure production safety and meet GMP medical standards. The surface of the equipment is treated with mirror or matte.

技術參數Technical Parameter
