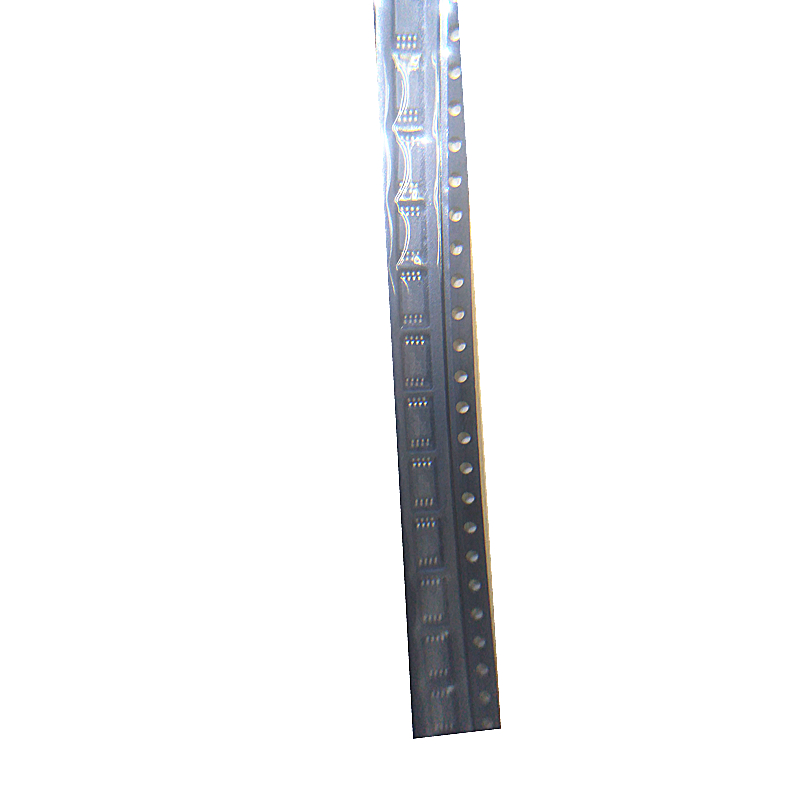

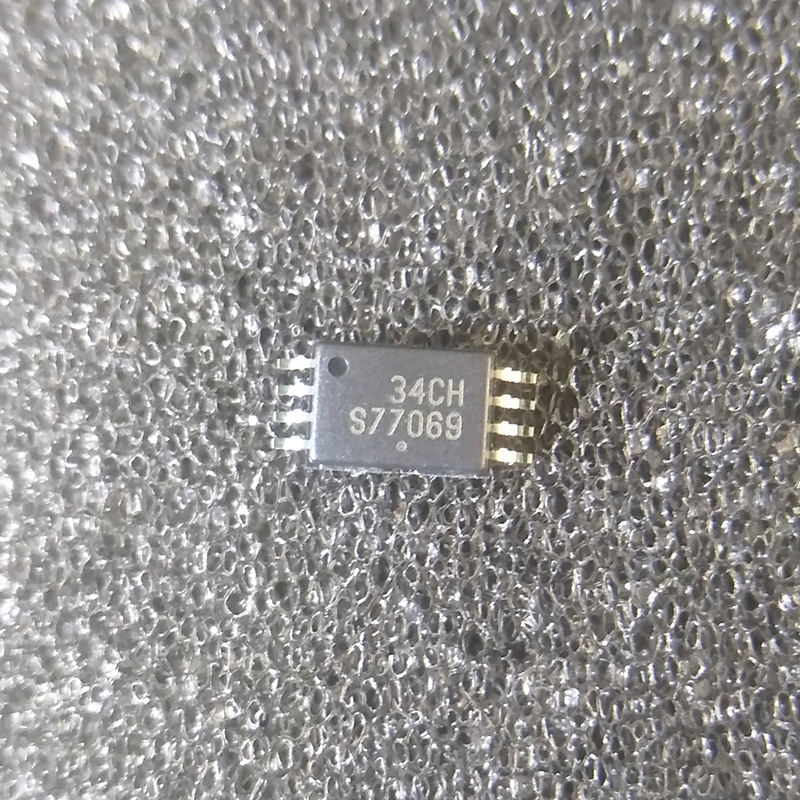

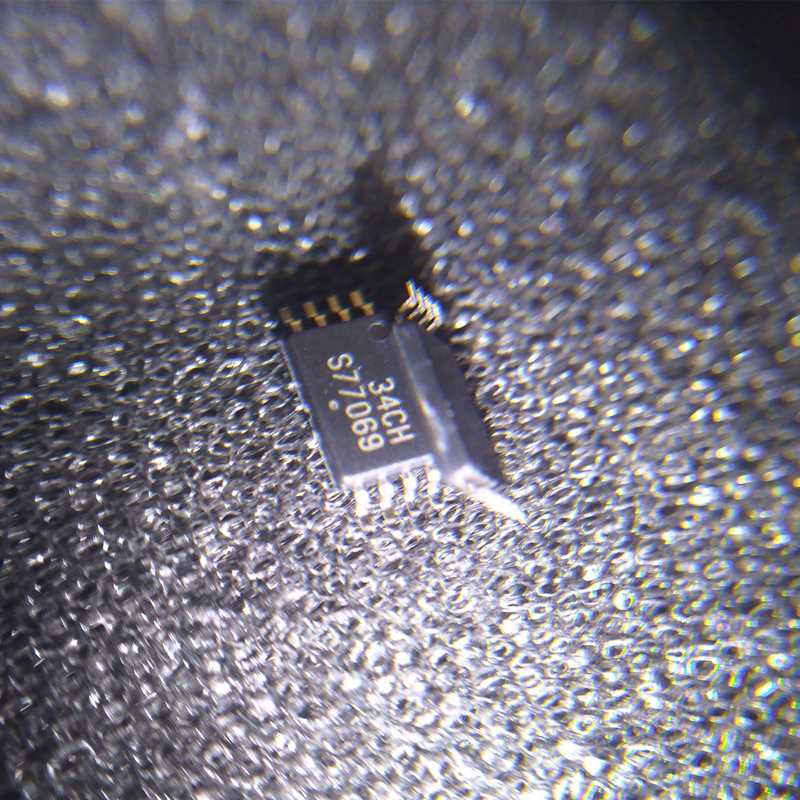

EEPROM芯片CAT34C02YI-GT5 ON存儲IC 封裝TSSOP8 CAT34C02YIGT5

EEPROM芯片CAT34C02YI-GT5 ON存儲IC 封裝TSSOP-8

PROM 串行 I?C，ON Semiconductor ### EEPROM 串行存取 - ON Semiconductor
The CAT34C02 is a 2 kb Serial CMOS EEPROM, internally organized as 16 pages of 16 bytes each, for a total of 256 bytes of 8 bits each.It features a 16-byte page write buffer and supports both the Standard (100 kHz) as well as Fast (400 kHz) IWrite operations can be inhibited by taking the WP pin High (this protects the entire memory) or by setting an internal Write Protect flag via Software command (this protects the lower half of the memory).In addition to Permanent Software Write Protection, the CAT34C02 also features JEDEC compatible Reversible Software Write Protection for DDR2 Serial Presence Detect (SPD) applications operating over the 1.7 V to 3.6 V supply voltage range.The CAT34C02 is fully backwards compatible with earlier DDR1 SPD applications operating over the 1.7 V to 5.5 V supply voltage range.
Features
---
 |
.Supports Standard and Fast I2C Protocol.1.7 V to 5.5 V Supply Voltage Range.16-Byte Page Write Buffer.Hardware Write Protection for Entire Memory.Software Write Protection for Lower 128 Bytes.Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs (SCL and SDA).Low Power CMOS Technology.1,000,000 Program/Erase Cycles.100 Year Data Retention.Industrial Temperature Range.This Device is Pb-Free, Halogen Free/BFR Free and RoHS Compliant

深圳市宏鼎微科技有限公司是一家從事消費、工控、通信服務、醫療器械類集成電路代理分銷商。多年來，專注致力于數碼產品、儀器儀表、 交換機設備等行業運用集成電路的推廣、銷售工作;致力于“以科技為動力,以質量求生存”的服務理念,為客戶提供技術支持、設計方案為一體的多元化的集成電路合作商。立足香港、深圳，服務各界客戶;廣泛應用于：智能家居、工業設備、微投、記錄儀、播放器、醫療內窺鏡等產品。公司秉承“交貨快捷、質量保障、價格合理”為服務宗旨，真誠希望與廣大客商攜手共進，建立長久的戰略合作伙伴關系！

購買流程：
1、發送BOM單，即EXCEL物料需求表，或直接詢問客服所需產品的規格型號。
2、稍作休息，我們的客服會對您所需產品和一些其他服務，例如燒錄程序等進行確認，再次確認無誤，給出一個合理的報價。
3、雙方確認合理雙贏的價格后，您拍下訂單付款，我們安排發貨。
4、收到貨物對其規格型號、數量、封裝進行核對，如無誤可確認收貨，如有誤差可及時聯系客服更換或補發。
