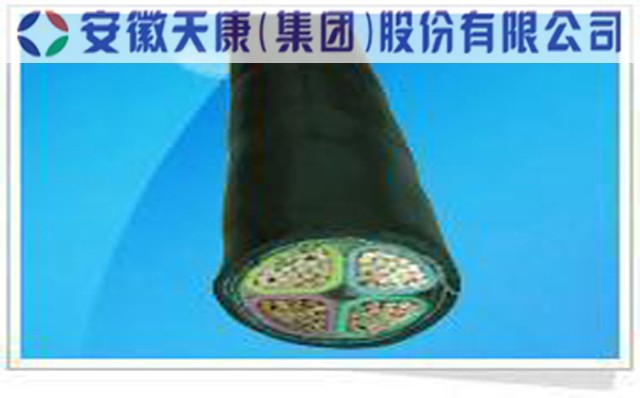

聚氯乙烯絕緣聚氯乙烯護套電力電纜

本產品按GB12706《額定電壓35kv及以下銅芯、鋁芯塑料絕緣電力電纜》標準生產。 The product is manufactured according to the stand of GB12706 or IEC,BS,DIN and ICEA upon request. 適用范圍 Applications 　　本產品適用于工頻額定電壓0.6/1KV及以下配電網或工業裝置中固定敷設之用。 The product is suitable for use in power distribution lines or fixed insta-llations with rated power-frequency voltage up to and including 0.6/1KV. 使用特性 Operating characteristics 　　工頻額定電壓Uo/U為0.6/1KV。 　　Rated power-frequency voltage Uo/U:0.6/1KV. 　　電纜導體的允許長期工作***溫度為70℃ 　　Max.permissible continuous operating temperature of conductor: 70℃ 　　短路時（***長持續時間不超過5s）電纜導體的允許***溫度： 　　導體截面 ≤ 300mm2 – 160℃； 　　導體截面 300 – 140＞℃； 　　Max.short-circuit temperature of the conductor shall not excssd: (5smaximum duration).Cross-section of conducter ≤ 300mm2 – 160℃； Cross-section of conducter ＞ 300mm2 – 140℃, 　　電纜敷設時環境溫度應不低于0℃。 　　The ambient temperature under installation should should not below0℃ 　　電纜彎曲半徑不小于電纜外徑10倍。
