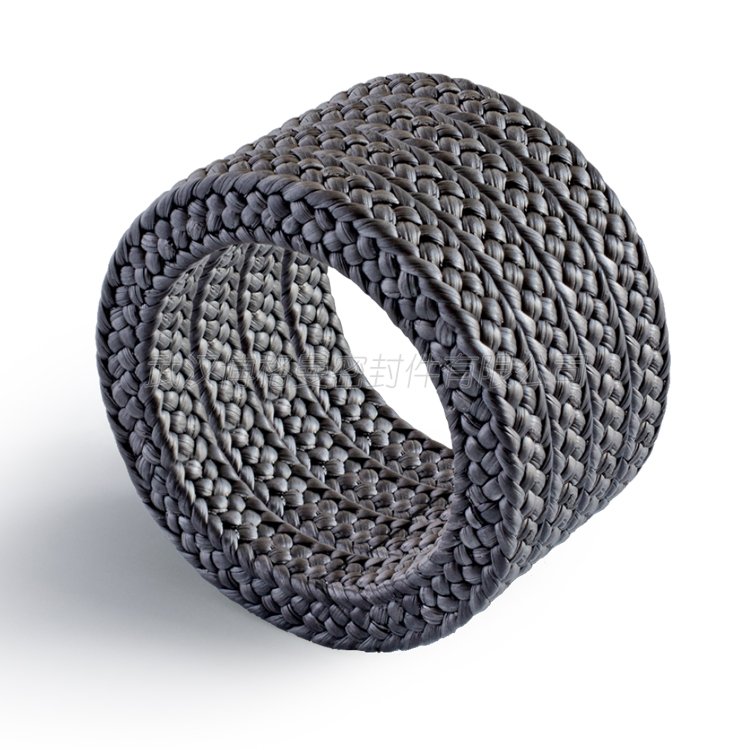

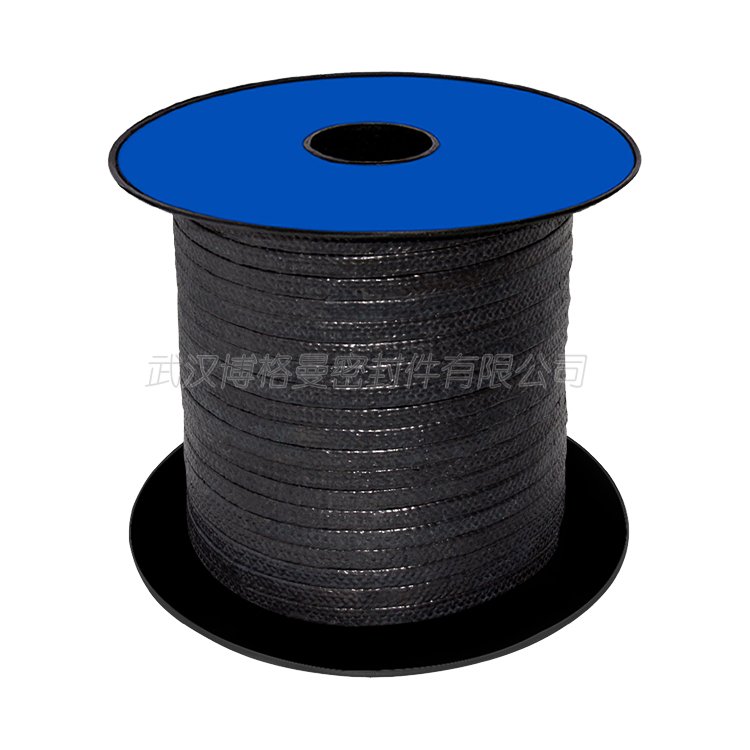

博格曼 高碳纖維盤根/1013/6046/6550/6555/6570

產品特點: Product features該盤根以好的高模量碳纖維為主體材料，浸漬準納米級高分子PTFE特殊乳液和石墨粉，經高性能化學纖維聚合技術和專有編織填料制造技術加工而成，導熱系數優良、自潤滑性好。符合最苛刻的VOC和VHAP逸出規定，可作為高溫高壓泵或閥的填料環或在組合使用中作為端環使用，在氧化條件下限制溫度在550℃以內。使用在干運行的設備（比如通風設備、風扇)中，可以發揮良好的密封作用。

The packing is made of high-quality high modulus carbon fiber as the main material, impregnated with quasi nano polymer PTFE special lotion and graphite powder, with excellent thermal conductivity and self-lubricating property. It meets the most stringent VOC and VHAP escape regulations, and can be used as the packing ring of high-temperature and high-pressure pump or valve or as the end ring in combined use. The temperature is limited to 550 ℃ under oxidation conditions. It can play a good sealing role in dry running equipment (such as ventilation equipment and fans).

應用范圍: Application Scope適用于電力、石油、化工、機械、冶金、制藥、制糖、釀酒、造紙、印刷，水處理等各工業行業的閥門和泵的填料函密封部位。It is applicable to the stuffing box sealing parts of valves and pumps in electric power, petroleum, chemical industry, machinery, metallurgy, pharmacy, sugar making, wine making, paper making, printing, water treatment and other industrial industries.

技術指標Technical indicators溫度Temperature:-100~+650℃，壓力Pressure: 35 MPa-閥門Valve，5.0 MPa-泵Pump，5.0 MPa-攪拌器AgitatorPH值:0~14線速度Speed：25m/s產品規格Product size: 3*3mm--50*50mm;特殊規格及非標準產品可按客戶要求制定.Special specifications and non-standard products can be formulated according to customer requirements
