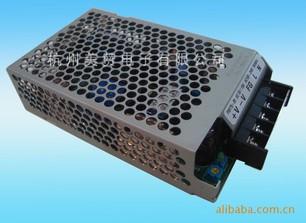

品牌 韓國華仁FINE SUONIX 類型 AC/DC電源 型號 PSF75-05 調制方式 脈沖頻率調制(PFM)式 晶體管連接方式 單端式 輸入電壓 110V ~1.0A,220V ~0.5A(V) 輸出功率 75(W) 輸出電壓 5(V) 工作效率 84 % typ(%) 輸出紋波噪音 130 Max 電壓調整率 25 Max(%) 負載調整率 50 Max(%) 產品認證 Complied with UL60950,EN60950
韓國FINE SUONIX >PSF 系列>AC-DC單路輸出>PSF Series>75w
☆ 小型,功率因素校正 Small size,Power Factor Correction ☆ 瞬變電流保護 Built-in inrush current protection ☆ 短路保護 Short circuit protection ☆ 過壓保護,過流保護 Over voltage protection,over current protection ☆ 單元式(罩可選) Unit type(top e option) ☆ 達到FCC的A級標準 Built to meet FCC class A ☆ 四年質保 4years warranty
輸入 電壓(V) AC100~240V (AC85~264V or DC120~370V), 50/60Hz (47~63Hz or DC) 電流(A) 110V ~1.0A,220V ~0.5A 頻率 效率 84 % typ 浪涌電流 20A typ(AC IN 110V, Io=),40A typ(AC IN 220V, Io=) at cold start 輸出 電壓(V) 5 電流(A) 15.0 電源調整率(mV) 25 Max 負載調整率(mV) 50 Max 波紋電壓(mVP-P) 80 Max 波紋噪聲(mVP-P) 130 Max 溫度調整率,0~+50℃(mV) 75 Max 起動時間(mS) 200 Max(AC IN 100V, Io=) 保持時間(mS) 17 typ (AC IN 100V, Io=) 保護電路 過流保護 Works at over 105% of rating and recovers automatically 過壓保護 Works at 115~140% of rating 絕緣性能 輸入-輸出 AC 3,000V 1 minute current 20mA, DC 500V 100MΩ(At room temperature & Humidity) 輸入-FG AC 2,000V 1 minute current 20mA, DC 500V 100MΩ(At room temperature & Humidity) 輸出-E AC 500V 1 minute current 100mA, DC 500V 100MΩ(At room temperature & Humidity) 環境條件 工作溫度、濕度 -10~+50℃:,50~60℃:80%, 20~90% RH(Non condensing) 保存溫度、濕度 -20~+75℃, 20~90% RH(Non condensing) 振動 10~55Hz at 1G, 3 minutes period, 30 minutes along X,Y and Z axis 沖擊 10G for 20ms once on each X,Y and Z axis 安全 安全認證 Complied with UL60950,EN60950 傳導噪聲 Complied with FCC Part15 ,VCCI-B,CISPR22-B,EN55022-B
