詳細信息（供應EAW溫控器）

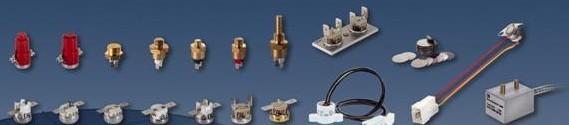

我公司理德國EAW溫控器系列產品，歡迎洽談?dòng)嗁?gòu)。

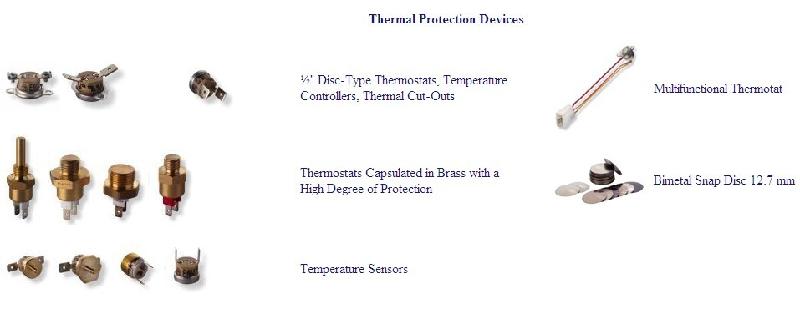

� Disc-type Thermostats, Temperature Coollers, Thermal Cut-outs

Functional Principle
Permanently adjusted single-poled temperature coollers and thermal cut-outs with a bimetal leap element. If the ambient temperature rises above or falls beneath the memorized functioning temperature barriers of the temperature coollers and thermal cut-outs, the ia-switching contact will be opened or closed automatically.
The reset of the internal switch contact can occur by three different principles:

Automatic reset

Manually activated reset

with a self-hold feature, i.e. the reset takes place by splitting from the power system

Technical Data

Switching voltage	up to 250 V AC
Switching current	up to 16 A cos φ = 1, 10 A cos φ = 1
Operating cycle	10.000 10.000
Contact resistance	≤ 50 mΩ with gold plated contacts ≤ 10 mΩ

Thermostats Capsulated in Brass with a High Degree of Protection

Functional Principle
Permanently adjusted single-poled thermostats with bimetal leap element. If the ambient temperature rises above or falls beneath memorized functioning temperature barriers, the ia-switching contact will be opened or closed.
Technical Data

Switching voltage	Up to 250 V AC, respectively 110 V DC
Switching current	AC up to 10 A DC max. 120 W
Operating cycle	30.000
Contact resistance	≤ 50 mΩ Gold plated contacts ≤ 10 mΩ
Electrical contacts	Flat connection 6.3 mm

Multifunctional Thermostat

Type CSS thermostats are single-pole thermostats that respond to temperature, have a make contact element in a ceramic housing, and are equipped with a heating resistor that can be triggered from the outside. One side this heating resistor is connected inside the thermostat to a contact on the make contact element, while the second heating resistor connection is fed outside via a separate connection table. CSS thermostats operate on the bimetal snap disc, the contact system (make contact element) is activated via a ceramic tappet. The thermostat can be heated by thermal coupling to a heat source or by the internal heating resistor or by a combination of both.
Type CSS thermostats are therefore e.g. also suitable for closing a contact with a time delay and to open it again depending on the ambient temperature.
Currents up to 16 A can be switched on and off via the make contact element. The functioning temperatures and the resistor can be varied within a wide range; however this can not be adjusted by the user.
The thermostats fixing elements are metallically separated from the contact system.
The ceramic housing protects the switch mechanism against dust and dirt.
Parameter

Bimetal Snap Disc

Technical Parameter

Calibration Ranges	- 25癈 up to approx. 50癈	approx. 50癈 up to approx. 200癈	approx. 200癈 up to approx. 260癈
Dimensions	� Diameter 12,7 mm � Material thickness 0,20 mm or 0,15 mm, according to application	� Diameter 12,7 mm � Material thickness 0,20 mm or 0,15 mm, according to application	� Diameter 12,7 mm � Material thickness 0,20 mm or 0,15 mm, according to application
Tolerance	� Upper temperature � 2,5K � Lower temperature � 2,5K	� Upper temperature � 4K � Lower temperature � 4K	� Upper temperature � 5K � Lower temperature � 5K
Differential	� Range A: ≤ 15K � Range B: lower temperature in accordance to customer requirements, differential less than 7K	� Range A: ≤ 15K � Range B: lower temperature in accordance to customer requirements, differential less than 7K	� Range C: ≤ 40K � Range B: lower temperature in accordance to customer requirements, differential less than 25K
