產品描述

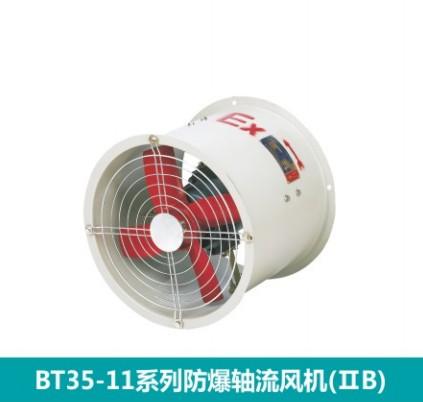

供應BT35系列防爆軸流風機(ⅡB)
適用范圍Application
1區、2區危場所。
IIA、IIB、類性氣體環境.
防爆標志: Exd II BT4
Can be used in Zone 1 and Zone 2one 2 dangerous places.
Can be used in IIA,IIB 、group explosive atmosphere.
Ex-mark:Exd II Bt4
型號含義Model implication
產品特點 Features
防爆軸流風機由防爆電機、葉片、風筒等部件組成. 噪音低、能耗低、防爆性能可靠.
電纜布線.
壁式:風扇外形兩端一邊是喇叭口型,一邊是90度直角法蘭型.
管道式:風扇兩端都成直角法蘭邊可以安裝在管道的中間.
崗位式:除具有壁式特征外,附加崗位腳架附件,風扇腰中
打安裝孔Φ 12.
固定式:除具有壁式特征外,底部焊接固定安裝架(40x40角
鐵制).
主軸轉速(或電機功率或風量)可根據用戶要求選配
符合GB3836-2000,IEC60079 標準要求。
Explostion-proof shaft type fan comprise explosion-proofmotors
blades,cylinders and so on.
Lownoise,low-energy consumptionreliable explosion-proof
performance.
Cablewiring.
Wall type:the exterior of fan has two terminals,one side is bell-mouthed
among the other side is 90 degree right angle flange type.
Pipe type:the two-terminal of fan is riht-angleflange that can install
among the pipe
Bracket type:besides characteristic of wall type,be enclosed with horse.
Accessory of ition,an install hole Φ 12 be made in the middle of fan.
Fixed type:besides characteristic of wll type,the bottom can weld fixed
install bracket(40x40 angle iron).
Main-role rotary(or motor power or wind) can be matched according to the
demand of user.
Suitable for GB3836-2000,IEC60079 standard request.
外形示意圖 Main technical parameters
壁式(1)Bracket type 崗位式(II)t type 固定式(III)Fixed type 管道(IV)Pipe line type
機號Fan No. A 1 2 3 4 重量(Kg)Weight
2.8 258 283 320 346 250 9
3.15 282 318 355 381 400 11
3.55 327 358 395 422 450 17
4 350 404 450 478 500 19
4.5 314 454 500 528 560 20
5 364 504 560 588 610 28
5.6 404 564 620 588 680 39
6.3 474 634 690 719 740 55
7.1 494 715 770 800 830 65
