1. The increased safety is mounted the flame-proofing elements inside;
2. The pressing shell made of fiberous glass, reinforced unsaturated polyster resin has elegant out looking and good properties
for corrosion-proof, static electrity resistance impact resistance and reliable-heating;
3. The flame-proofing coolling with tight structure, good reliability and small bulk has strong capacity for cutting out and in, and
the long service life, etc;
4. Besides the varieties listed in the table, cool switch contacts contacting type and operation ition can be chosen specially
according the requirement of users;
5. The element arrangement combination can be freely combined according to the re-quirement of users;
6. All the fastening pieces are adopted the stainless steel screw;
7. Cable wiring.
8. Suitable for GB3836-2000、IEC60079, GB12476.1-2000、IEC61241 standard request.
1. 外殼內裝隔爆型元件；
2. 外殼采用玻璃纖維增強不飽合聚脂樹脂壓制而成，具有外形美觀、耐腐蝕、，耐沖擊及熱穩定性好等優良性能；
3. 隔爆型控制開關具有結構緊湊、可靠性好、體積小、通斷能力強、壽命長等優點；
4. 控制開關觸頭接觸型式和操作位置除表中所列品種外，還可根據用戶要求特殊選擇；
5. 元件排列組合可按用戶要求隨意組合；
6. 所有的堅固件都采用不銹鋼螺釘；
7. 電纜布線
8. 符合GB3836-2000、IEC60079, GB12476.1-2000、IEC61241標準要求。 |
 | 開關
組合符號
The code
of switch | 接觸圖
Chart of contact | 等效開關
Equivalent switch | 旋鈕位置(實線表示
定位,虛線表示自復位)
Rotary buttons
ition, real line denotes
location broken line de-
notes auto-resetting | 等效功能說明
Instruction for equivalent function | | A | | | | 功能接線均與雙按鈕相同，
自動復位。
Functional wiring is same as button
with auto reset
| | B | | | | 功能與雙控鈕相同，起動自復位，
可帶鎖定裝置，將開關鎖定在停
止檔避免誤操作。
Functional wiring is the same as button
with auto resetting, take "lock"apparatus
to lock the switch at the stopping location
to oid mistake operating. | | C | | | | 功能為2個帶常開觸點的按鈕，
自動復位，適合于高壓電機控
制電路，或采用A功能面板。
Button with 2 usually-open contacts
and auto-resetting. suitable for high-
voltage engine cool circuit or
function panel A. | | D | | | | 小功率電源開關。
Mini-power switch. | | E | | | | 功能與三鈕相同，控制電機正反
轉用，正、反起起動位置自復位。
Function is the same as three buttons
to cool-conversion of FW & BW
engine, FW & BW starters can
auto-reset. | | F | | | | 選擇開關，中間帶停止檔位。
Selected switch with stop
location in midst. | | G | | | | 相當于2個按扭和一個切換開關
裝于一軸，在起動與停止之前均
可輸出聯絡信號或監控信號。
Be equol to mounting two buttons
and one change-over switch in
one axe. Can output contact signal
or inspect signal befor starting
and stopping. | | H | | | | 多信號逐級傳送，方向任意旋轉。
Multi-signals transmit gradually
and convert in random. | | | | 開關
組合符號
The code
of switch | 接觸圖
Chart of contact | 等效開關
Equivalent switch | 旋鈕位置(實線表示
定位,虛線表示自復位)
Rotary buttons
ition, real line denotes
location broken line de-
notes auto-resetting | 等效功能說明
Instruction for equivalent function | | I | | | | 在H基礎上增加了總信號傳送功能。
Add function of chief-signal
transmitting on the base of H structure. | | J | | | | 二位進級、逐級切換。
Change-over gradually. | | K | | | | 切換開關。
Change-over switch | | L | | | | 三極雙擲選擇開關。
Selected switch with three
poles and two launches. | | M | | | | Change-over switch with
automation, hand, starting.
convert to automation through
stop location.
自動、手動、起動三位置轉換
開關，起動自復位，起動后必
須經過停止檔位才能轉向自動檔位。 | | N | | | | 與M結構略有不同，
起動后不經停止檔位置，直接轉向
自動檔次。
Little different from M
universal structure, it don
pass stop location to automation
location. | | | | 開關
組合符號
The code
of switch | 接觸圖
Chart of contact | 等效開關
Equivalent switch | 旋鈕位置(實線表示
定位,虛線表示自復位)
Rotary buttons
ition, real line denotes
location broken line de-
notes auto-resetting | 等效功能說明
Instruction for equivalent function | | O | | | | 起動為雙觸點，起動自動復位。
可鎖定裝置，將開關鎖定在停止檔，
避免誤操作。
Double contacts for starting with
auto-resetting. take "lock" apparatus
to lock the switch at the stopping
location to oid mistake operating. | | P | | | | 停止為雙觸點，可分別代替 A
和 C ，起停，自動復位。
Double contacts for stopping, to
substitude A and C for starting,
stopping and auto-resetting. | | Q | | | | 停止帶雙觸點，起動自復位，
可帶鎖定裝置，將開關鎖定在
鎖停止檔，避免誤操作。
Double contacts for stopping with
auto-resetting. take"lock" apparatus
to location to oid mistake operating. | | R | | | | 起、停均帶雙觸點，起、停均自動
復位，同A面板。
Double for both starting and stopping,
the same as A universal panel with
auto-resetting when starting and stopping. | | S | | | | 起停前先傳遞一個聯絡信息。
Transmit a contact signal before
starting and stopping | | T | | | | Equipped with locking apparatus
when starting and stopping, switch
can be lock-de, cant autoreset
to provide mistake operating.
起動、停止均可帶鎖定裝置，
將開關鎖定在起動或停止檔，
避免誤操作，不自動復位。 | | U | | | | 為雙控選擇開關。
Double-cool switch.Z | | V | | | | 電壓換相測量轉換開關。
Change-over switch for voltage
phase-changed measuring.. | | | | 開關
組合符號
The code
of switch | 接觸圖
Chart of contact | 等效開關
Equivalent switch | 旋鈕位置(實線表示
定位,虛線表示自復位)
Rotary buttons
ition, real line denotes
location broken line de-
notes auto-resetting | 等效功能說明
Instruction for equivalent function | | W | | | | 1個2常開自復位按扭，左右一樣。
One auto-reset button with
two usually-opens, the left is
as same as the right. | | X | | | | 為2個2常開觸點的自復位按扭。
Two auto-reset buttons with
two usually-opens. | | Y | | | | 為帶4個常開觸點的自復位按鈕。
Auto-reset button with four
usually-opens. | | Z | | | | 電源程序開關，中間斷開，左右
均接近，可作消防開關。
Power-source programmed switch
can cut off in between and cut in
both the left and right which can
be used as extinctive switch. | | A | | | | 用于起動，點動混合電路。
For starting and inching the
mixed circuit.. | | B | | | | 雙聯動開關。
Double starting switch. | | C | | | | 急停開關。
Emergency stopping switch. | | | | 外形
Outline | 方案外形圖
Outline of project | 內裝元件
Inner element | 型號
Type | | | | 一個控制開關
請:開關代號(開關代號詳見P112～115)。
One cool switch
Please specify: switch code
(it to be seen Page 112-115). | BZK8038-K1
K1-1□
“□”為元件代號(詳見P118)
訂貨時請注明
"□" is element code
(see Page 118),
please noted when ordering | | | |
二組按鈕
請:按鈕頭的顏色和功能。
Two buttons
Please specify: buttons color and function. | BZK8038-A2
A2-□□/□□
“□”為元件代號(詳見P125)
訂貨時請注明
"□" is element code
(see Page 125),
please noted when ordering | | | | 一個控制開關
兩個指示燈(一紅一綠)
請：開關代號(開關代號詳見P112)。
One coolling switch
Two indicators (one red one green)
Please specify: switch code
(it to be seen Page112) | BZK8038-D2K1
D2-□□/□□
K1-1□
“□”為元件代號(詳見P125,118)
訂貨時請注明
"□" is element code
(see Page 125,118),
please noted when ordering | | | | 一個72型電流表(或一個電壓表)
一個控制開關
請：表量程、
開關代號(開關代號詳見P112)
One 72 type ammeter(or one voltmeter)
One cool switch
Please specify: meters measuring range,
Switch code (it to be seen Page112) | BZK8038-B1K1
B1-□/□
K1-□
“□”為元件代號(詳見P118)
訂貨時請注明
"□" is element code
(see Page 118),
please noted when ordering | | | | 一個72型電流表(或一個電壓表)
兩組按鈕
請：表量程。
One 72 type ammeter(or one voltmeter)
Two buttons
Please specify: meters measuring range. | BZK8038-K2
K2-1□/□
“□”為元件代號(詳見P125)
訂貨時請注明
"□" is element code
(see Page 125),
please noted when ordering | | | | 外形
Outline | 方案外形圖
Outline of project | 內裝元件
Inner element | 型號
Type | | |
BZK8038-K2(二) | 兩個控制開關
請指示：開關代號(開關代號詳見p112)。
Two cool switches
Please specify: switch code
(it to be seen Page112) | BZK8038-K2
k2-1□/1□
“□”為元件代號(詳見P118)
訂貨時請注明
"□" is element code
(see Page 118),
please noted when ordering | | |
BZK8038-A3B1(三鈕一表) | 一個電流表(或一個電壓表)
三組按鈕
請：表量程，按鈕的形式和功能。
one ammeter (or one voltmeter)
three buttons
please specify: meters measuring range,
buttons type and function. | BZK8038-A3B1
A3-□□/□□/□□
B1-1(□/□)
“□”為元件代號(詳見P125)
訂貨時請注明
"□" is element code
(see Page 125),
please noted when ordering | | |
(兩燈兩鈕
兩)BZK8038-A2D2K1
| 兩個批示燈(一紅一綠)
兩組按鈕，一個控制開關
請：指示燈的電壓，
開關代號(開關代號詳見P112)。
two indicators (one red one green)
two buttons, one cool switch
please specify: indicators color and
voltage,
switch code (it to be seen page112) | BZK8038-A2D2K1
A2-□□/□□
D2-□□□/□□□
K1-1□
“□”為元件代號(詳見P125,118)
訂貨時請注明
"□" is element code
(see Page 125,118),
please noted when ordering | | |
BZK8038-A6D3(六鈕三燈) | 三個指示燈
六組按鈕
請：指示燈的顏色、電壓。
three indicators
six buttons
please specify: indicator color and
voltage. | BZK8038-A6D3
D6-□□/□□
A3-□□□/□□□
“□”為元件代號(詳見P125)
訂貨時請注明
"□" is element code
(see Page 125),
please noted when ordering | | |
BZK8038-A4D2(四鈕兩燈) | 二個指示燈
四組按鈕
請：指示燈的顏色、電壓。
Two indicators
Four buttons
Please specify: indicators color and
voltage. | BZK8038-A4D2
A4-□□/□□...
D2-□□□/□□□...
“□”為元件代號(詳見P125)
訂貨時請注明
"□" is element code
(see Page 125),
please noted when ordering | | | 外形
Outline | 方案外形圖
Outline of project | 內裝元件
Inner element | 型號
Type | | |
BZK8038-A2B1D2
(兩燈兩鈕一表) | 一個72型電流表(或一個電壓表)
兩個指示燈，兩組按鈕
請:表量程、指示燈的電壓。
One 72 type ammeter (voltmeter)
Two indicators, two buttons
Please specify: meters measuring range,
Indicators voltage. | BZK8038-A2B1D2
A2-□□/□□
B1-□/□
D2-□□□/□□□
“□”為元件代號(詳見P125)
訂貨時請注明
"□" is element code
(see Page 125),
please noted when ordering | | |
BZK8038-B1D2K1(兩表一) | 一個72型電流表(或一個電壓表)
兩組按鈕，一個控制開關
請:表量程，
開關代號(開關代號詳見P112)
One 72 type ammeter (voltmeter)
Two indicators, one cool switch
please specify: meters measuring range,
Switch code (it to be seen page112) | BZK8038-B1D2K1
B1-1(□/□)
D2-1□□/1□□
K1-1□
“□”為元件代號(詳見P125,118)
訂貨時請注明
"□" is element code
(see Page 125,118),
please noted when ordering | | |
(兩鈕
一表一)
BZK8038-A2B1K1
| 一個72型電流表(或一個電壓表)
兩組按鈕，一個控制開關
請：表量程、
開關代號(開關代號詳見P112)。
One 72 type ammeter (voltmeter)
Two indicators, one cool switch
Please specify: meters measuring range,
Switch code (it to be seen Page112) | BZK8038-A2B1K1
A2-□□/□□
B1-1(□/□)
K1-1□
“□”為元件代號(詳見P125,118)
訂貨時請注明
"□" is element code
(see Page 125,118),
please noted when ordering | | |
BZK8038-A4D4(四燈四鈕) | 四個指示燈
四組按鈕
請：指示燈的顏色、電壓。
Four indicators
Four buttons
Please specify: indicator color and
voltage. | BZK8038-A4D4
A4-□□/□□...
D4-□□□/□□□...
“□”為元件代號(詳見P125)
訂貨時請注明
"□" is element code
(see Page 125),
please noted when ordering | | |

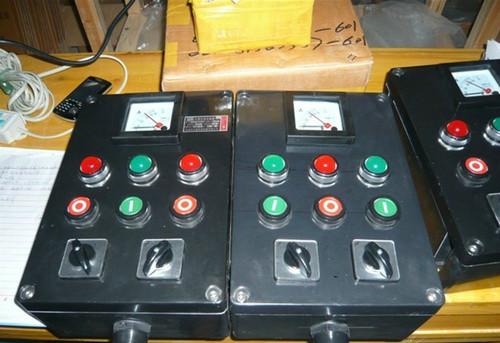

BZK8038-A2B1D2K1 | 一個72型電流表(或一個電壓表)
兩個指示燈，兩組按鈕
請：表量程，指示燈電壓,
開關代號(開關代號詳見P112)
One 72 type ammeter (voltmeter)
Two indicators, Two indicators
Please specify: meters measuring range,
Switch code (it to be seen Page112)
| BZK8038-A2B1D2K1
A2-□□/□□
B1-1(□/□)
D2-1□□/1□□
K1-1□□
“□”為元件代號(詳見P125,118)
訂貨時請注明
"□" is element code
(see Page 125,118),
please noted when ordering | | | | |
