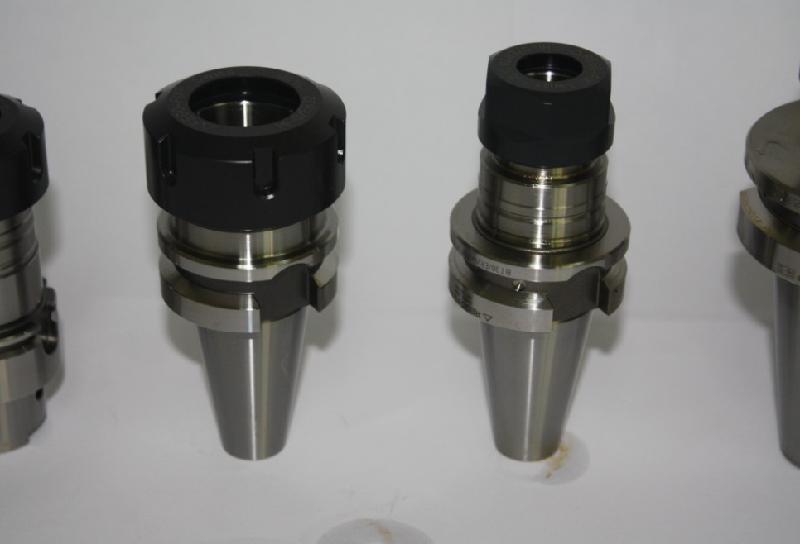

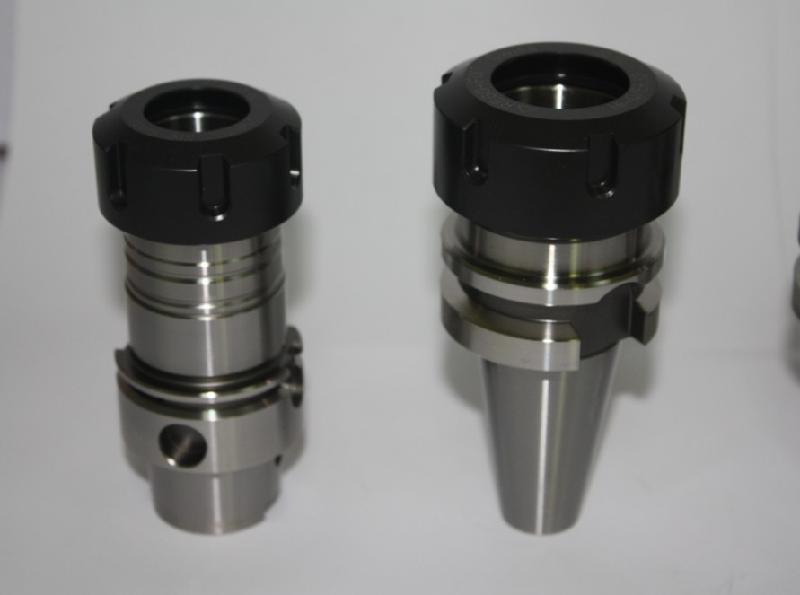

供應日本兄弟機brother全套刀柄

床主軸刀柄配備，兄弟機床刀柄配備(BT30 ER系刀柄配備)，北京精雕機刀柄夾頭配備，的品牌REGO-FIX瑞士進口刀柄，批發刀柄找代理商！價格實惠，交期優勢！
    REGO-FIX產品，刀柄筒夾螺帽延長桿密封圈等
    我公司專業生產制造開發,CNC數控刀具,石墨刀,銑床,瑞士（雷高）REGO-FIX刀柄代理，進口刀柄批發,數控刀柄,機床配件,刀桿，廠家,專業生產石墨刀，產品規格全，大量庫存，歡迎致電咨詢
    瑞士REGO-FIX產品代理商，產品規格齊全，庫存屬中國區，產品價格交期有優勢！與國內多家企業建立了長期的合作關系。熱誠歡迎各界朋友前來參觀、考察、洽談業務。


應用
這些彈簧夾頭刀柄為帶自換刀系統的CNC加工中心而制。該產品普遍適用于鉆孔、銑削、鉸孔、攻絲和磨削。這個系統的防振阻尼效果可減少對主軸的磨損及可延具的壽命。

動平衡
REGO-FIX?系統的BT/ER彈簧夾頭刀柄動平衡至G2.5@22"000min-1。末位帶H的型號的彈簧夾頭刀柄可安裝HI-Q?動平衡環，根據使用動平衡的不同，可使包括在內的刀柄系統動平衡到適用80000min-1的轉速。

以上是BT30刀柄ER型號！

	產品尺寸
產品編號	D	L
BT30/Ex050*	19	50
BT30/Ex100H	19	100
BT30/ER16x050*	28	50
BT30/ER16x080H	28	80
BT30/ER16x100H	28	100
BT30/ER20x050*	34	50
BT30/ER20x070H	34	70
BT30/ER20x100H	34	100
BT30/ER25x060H	42	62.5
BT30/ER25x100H	42	100
BT30/ER32x060*	50	60
BT30/ER32x100H	50	100

ER標準型筒夾
1) 可用于鉆孔、銑削、鉸孔、攻絲和磨削 2) T.I.R.(徑向跳動誤差)≤10μm
規格	可夾持尺寸
ER8	1/1.5/2/2.5/3/3.5/4/4.5/5
E	1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7
ER16	1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8/8.5/9/9.5/10
ER20	1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8/8.5/9/9.5/10/10.5/11/11.5/12/12.5/13
ER25	1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8/8.5/9/9.5/10/10.5/11/11.5/12/12.5/13/13.5/ 14/14.5/15/15.5/16/17
ER32	1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8/8.5/9/9.5/10/10.5/11/11.5/12/12.5/13/13.5/ 14/14.5/15/15.5/16/17/17.5/18/18.5/19/19.5/20/21/22
E	1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8/8.5/9/9.5/10/10.5/11/11.512/12.5/13/13.5/ 14/14.5/15/15.5/16/17/17.5/18/18.5/19/19.5/20/20.5/21/21.5/22/22.5/23/23.5/24/24.5/25/ 25.5/26/27/28/29/30
ER50	6/8/10/12/14/16/18/20/22/24/25/26/28/30/32/34/36

ER-UP高精度型筒夾
1) 與標準ER夾持范圍相同 2) T.I.R.(徑向跳動誤差)≤5μm 3) 用于需要良好T.I.R.的高速切削中
規格	可夾持尺寸
ER8-UP	1/1.5/2/2.5/3/3.5/4/4.5/5
E-UP	1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7
ER16-UP	1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8/8.5/9/9.5/10
ER20-UP	1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8/8.5/9/9.5/10/10.5/11/11.5/12/12.5/13
ER25-UP	1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8/8.5/9/9.5/10/10.5/11/11.5/12/12.5/13/13.5/ 14/14.5/15/15.5/16/17
ER32-UP	1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8/8.5/9/9.5/10/10.5/11/11.5/12/12.5/13/13.5/ 14/14.5/15/15.5/16/17/17.5/18/18.5/19/19.5/20/21/22
E-UP	1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7/7.5/8/8.5/9/9.5/10/10.5/11/11.512/12.5/13/13.5/ 14/14.5/15/15.5/16/17/17.5/18/18.5/19/19.5/20/20.5/2121.5/22/22.5/23/23.5/24/24.5/25/25.5/26/27/28/29/30
ER50-UP	6/8/10/12/14/16/18/20/22/24/25/26/28/30/32/34/36
