供應手動報警按鈕Manual Call Poin 傳統非編報警啟動按鈕

   每個防火分區應至少設置一個手動火災報警按鈕。從一個防火分區內的任何位置到最鄰近的一個報警按鈕的距離不應大于30m。按鈕設置在公共活動場所的出入口處，具體設置部位如下：大廳、過廳、主要公共活動場所出入口；餐廳、多功能廳等處的主要出入口；主要通道門廳等經常有人通過的地方；值班人員工作場所。聲光報警器或警鈴作為警報裝置安裝在手報的上方。

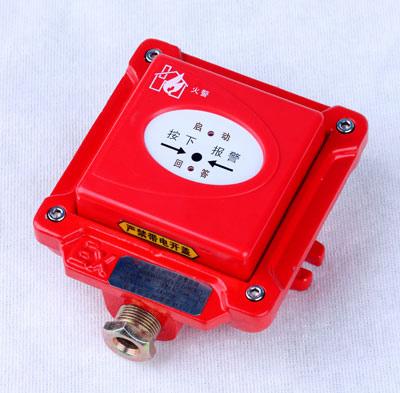

通用型傳統手報報警按鈕

規格：
工作電壓范圍： 24VDC

報警電流:10-30 mA @ 24 VDC
工作濕度范圍：相對濕度10 ％-93％ ，不凝結
工作溫度范圍： -10 ° C-50 ° C（14 °F-122°F）

Conventional Manual Call Point, Operates by Advanced MCU Expert Algorithm Software.

Key Specifications/Special Features

They work perfectly with all conventional intelligent fire cool panels
The sb116 is a conventiona
General

Technical Specifications
Ordering Information
Individual(1 units)
Dimensions
(w x d x h millimetres) Weight
140x105x45 220g
Dimension: 140mmX105mm
Height: 45 mm
Weight: 220 g
Operating Temperature Range: -10°C to 50°C
Operating Humidity Range: 10% to 93% Relative Humidity, Noncondensing
Latching Alarm: Reset by momentary power interruption
Top Side
Figure 1. Dimension of manual call point:
Electrical Ratings
System Voltage (nominal): 24 VDC (9V~ 28VDC)
Standby Current: 60 μA @ 24VDC
Alarm Current: 10~30 mA @ 24VDC

l call-point based upon our industry standard series housing, and features easy to install, push-fit wiring terminals.
The unit can support either a 'Frangible Glass' element or a 'Non Frangible Plastic' element.

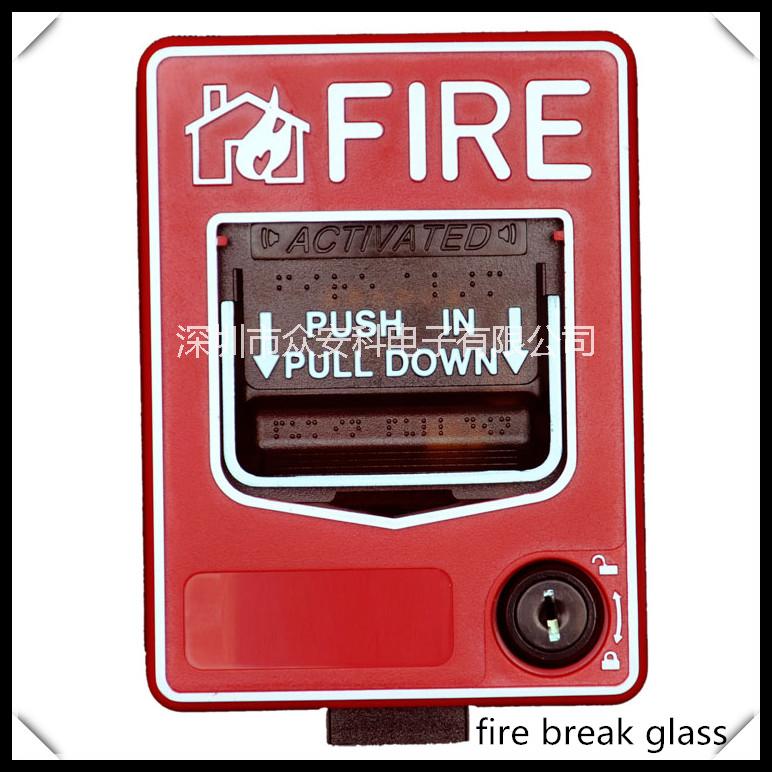

Push in and Pull Down Call Point
Can be reset by key
Red colour
Fire proof materials
470 Ohm Resistance
Modern style Call Point
