突起路標耐沖擊儀,突起路標耐沖擊 南京銷售價格突起路標耐沖擊儀,突起路標耐沖擊 南京銷售價格突起路標耐沖擊儀,突起路標耐沖擊 南京銷售價格突起路標耐沖擊儀,突起路標耐沖擊 南京銷售價格突起路標耐沖擊儀,突起路標耐沖擊測試裝置是專為生產、質量監督、工程施工和監理等單位而設計和生產的。具有結構合理、操作簡單、適用性廣、測量精度高、測量安全及可靠性好等特點。

The bumper road mang impact tester is designed and produced for production, quality supervision, engineering construction and supervision. It has the characteristics of reasonable structure, simple operation, wide applicability, high measurement accuracy, good measurement safety and good reliability.

突起路標耐沖擊儀,突起路標耐沖擊測試裝置符合國家行業標準GB/T24725-2009《突起路標》對路標抗沖擊性能試驗的要求。

The bumper road sign impact tester meets the requirements of the national industry standard GB/T24725-2009 "protrusion road sign" on the roadway impact resistance test.

突起路標耐沖擊儀,突起路標耐沖擊測試裝置技術指標：

★鋼球質量：1040 ±5克

★鋼球盡落差：1 米

★外形尺寸：100*100*20mm

★重量：10kg

Protruding road sign impact tester technical indicators:
★ Steel ball quality: 1040 ± 5 grams
★ Steel ball drop: 1 meter
★Dimensions: 100*100*20mm
★ Weight: 10kg

突起路標耐沖擊儀,突起路標耐沖擊測試裝置操作步驟

★準備：調整底座的螺栓使其底面處于水平，將待測突起路標放到底座下側并與其底面平行，如底面下側高度不夠，則需再次調整底座的螺栓，甚至用其它等厚度的塊狀物墊高底座的高度。將不銹鋼導管安裝到底座的安裝座內，將環形開關置于鎖止?fàn)顟B(tài)，通過環形開關使支撐三角在圓形管內形成鋼球座即支撐三角的一臂處于懸臂狀態以支撐鋼球。

★落差高度標定：用卷尺測量突起路標上表面與支撐三角水平懸臂之間的距離。

★試驗：將鋼球置于鋼球座內左手扶住鋼球座的同時，右手快速往下?lián)墉h(huán)形開關即釋放處于鎖止?fàn)顟B(tài)的支撐三角，確保鋼球自由落下沖擊突起路標。

★測量：用標準長度測量量具，測量突起路標表面裂紋的長度和面積。并記錄測量數據。

Protruding road sign impact tester operation steps
★Preparation: adjust the bolt of the base so that the bottom surface is level. Place the road mangs to be tested on the lower side of the base and parallel to the bottom surface. If the height of the bottom side is not enough, you need to adjust the bolts of the base again, or even use other blocks of equal thickness. The height of the base is high. The stainless steel conduit is mounted in the mount of the base, and the ring switch is placed in a locked state, and the support triangle is formed in the circular tube by the ring switch to form a steel ball seat, that is, an arm of the support triangle is in a cantilever state to support the steel ball.
★ Drop height calibration: Use a tape measure to measure the distance between the upper surface of the raised road sign and the horizontal cantilever of the support triangle.
★Test: While placing the steel ball in the steel ball seat and holding the steel ball seat with the left hand, the right hand quickly dials the ring switch to release the support triangle in the locked state, ensuring that the steel ball freely falls under the impact protruding road sign.
★Measurement: Measure the length and area of surface cracks on the raised road mangs with a standard length measuring gauge. And record the measurement data.

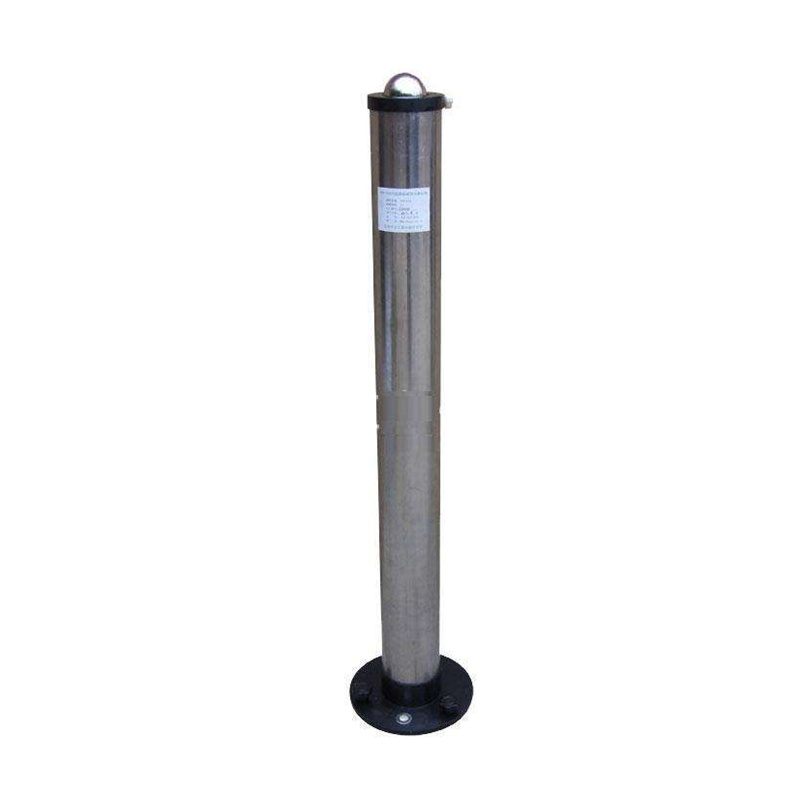

突起路標耐沖擊儀,突起路標耐沖擊測試裝置結構：

主要由鋼球、鋼球座（支撐三角和圓形管）、環形開關、不銹鋼導管、底座和可調整高度螺釘?shù)冉M成。

Protrusion road sign impact tester structure:
It is mainly coed of steel balls, steel ball seats (support triangles and round tubes), ring switches, stainless steel pipes, bases and adjustable height screws.
