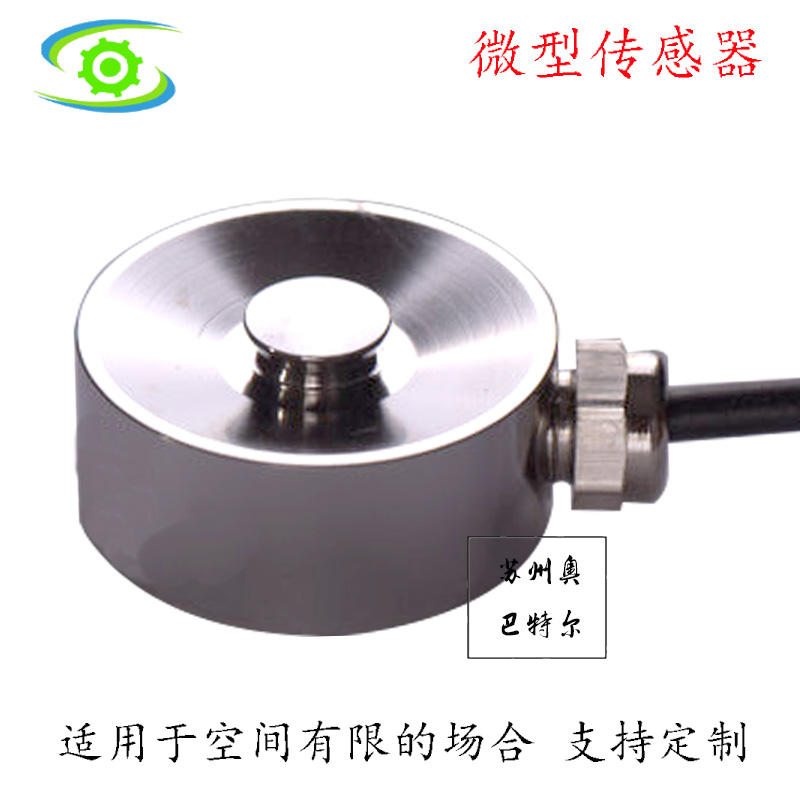

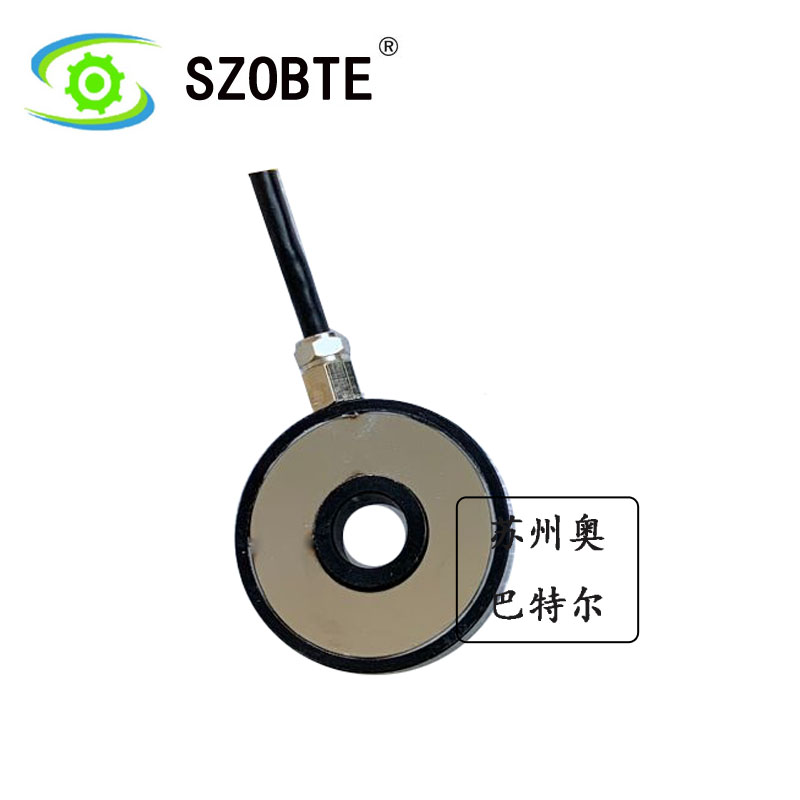

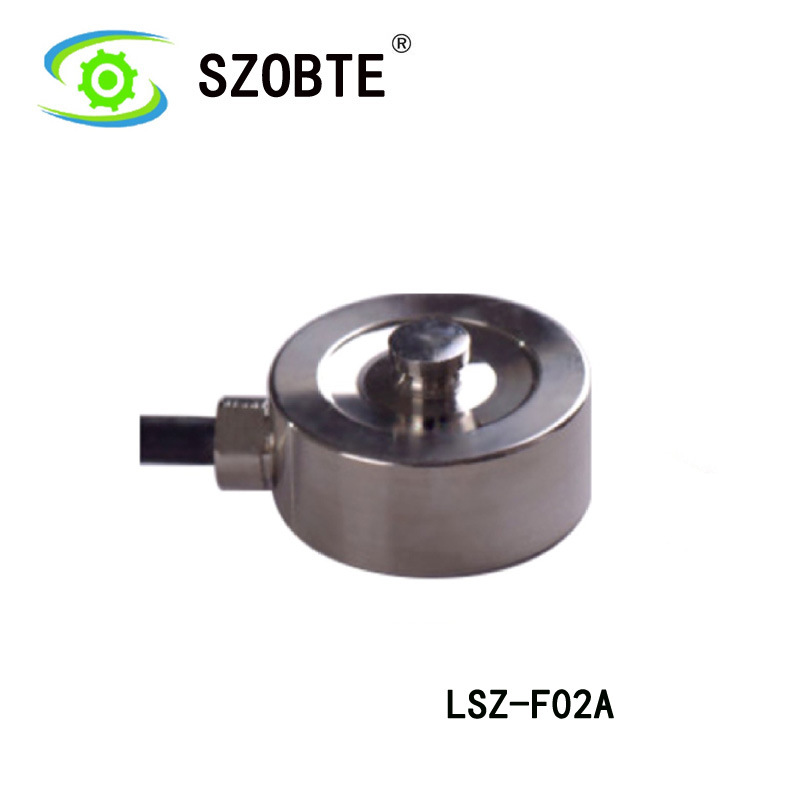

供應微小撞擊力傳感器， 微小型稱重傳感器 LSZ-F02微小型稱重傳感器

Rated Output

額定輸出

1.0~1.5mV/V±1%

Zero Balance

  零點平衡

±1% of rated output

Creep After 30 Minutes

蠕變

±0.05% of rated output

Nonlinearity

非線性

±0.3% of rated output

Hysteresis

滯后

±0.1% of rated output

Repeatability

重復性

±0.3% of rated output

Temp. effect on output

靈敏度溫漂

≤0.05% of applied output/℃

Temp. Effect on zero

零點溫漂

≤0.05% of rated output/℃

Safe temp. Range

可用溫度范圍

-10℃ to+70℃

Temp.Compensated

溫度補償范圍

-10℃ to+30℃

Safe Overload

安全載荷

150%

Input Impedance

輸入阻抗

387 Ω±20Ω

Output Impedance

輸出阻抗

350 Ω±5Ω

Insulation Resistance

絕緣阻抗

≥5000MΩ(50V DC)

Rated Excitation

推薦激勵電壓

5V DC/AC

Maximum Excitation

工作電壓

10V DC/AC

Protection Class

防護等級

IP67

Construction

電線

2m

type

型號說明

?型號+?量程+?非標功能F(無非標則不需填寫)

如：LSZ-F02/5kg

Cable Color Code

導線顏色

Red(+E)Black(-E)Green(+S)White(-S)
