供應USBBDMMultilink仿真器 U-MULTILINK仿真器 原裝U-MULTILINK仿真器

Multilink Universal 多合一開發接口
特性:

· 從PC到Multilink的USB接口允許快速，方便的編程和調試--通過方便和兼容的USB接口。

· USB供電 -無需單獨的電源供應(目標燒寫小于1mA)。

· 目標電壓：1.6V的-5.25V

· 目標頻率：16KHz-50MHz (適用于HCS08，RS08，CFV1，或HCS12X)

· 支持 HCS08，RS08，HCS12，HC12，ColdFire V1/+V1，ColdFire V2-4，Qorivva MPC55xx/56xx，以及 Kinetis ARM 微處理器系列。

· 自動頻率檢測+適應，用于HCS08設備。

· 自動頻率檢測，用于HC(S)12(X)設備。

· 對RS08設備在RESET line生成燒寫電壓

Supported Freescale Devices:

· Kinetis

· Qorivva MPC55xx/56xx

· ColdFire +V1/ColdFire V1

· ColdFire V2/3/4

· Power Architecture PX Series

· HC(S)12(X)

· S12Z

· HCS08

· RS08

· DSC

NOTE: For a much faster all-in-one development interface which can also supply power to the target, please see the USB Multilink Universal FX.

For production usage, see either the Cyclone PRO or Cyclone MAX stand alone programmer and debug interface, depending on which processor you are working with. See the comparison chart below.

FEATURES:

· USB interface from PC to Multilink allows for fast, easy programming and debugging -- with the ease and compatibility of the USB interface.

· Draws power from USB interface-- no separate power supply required (draws less than 1mA from the target).

· Target Voltage: 1.6V-5.25V

· Target Frequency: 16Khz-50Mhz (applies to HCS08,RS08,CFV1, S12Z, or HCS12X only)

· Compatible with HCS08, RS08, HC(S)12(X), S12Z, ColdFire V1/+V1, ColdFire V2-4, Qorivva MPC55xx/56xx, and Kinetis ARM families of microcoollers.

· Includes USB cable, Type A Male to Type B Male, 6-ft.

· Auto-frequency detection + trimming capabilities for HCS08 devices.

· Auto-frequency detection for HC(S)12(X) devices.

· Generates programming voltage on RESET line for RS08 devices.

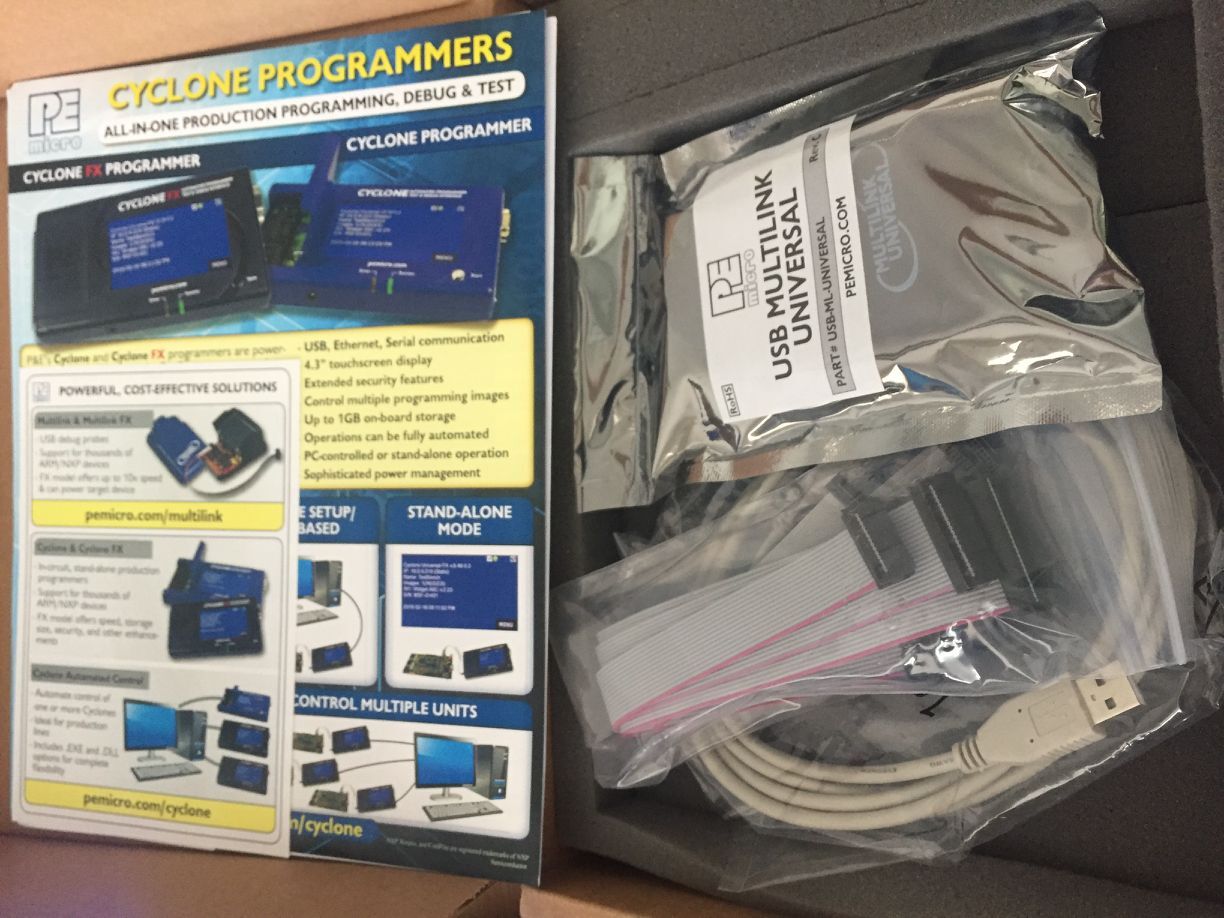

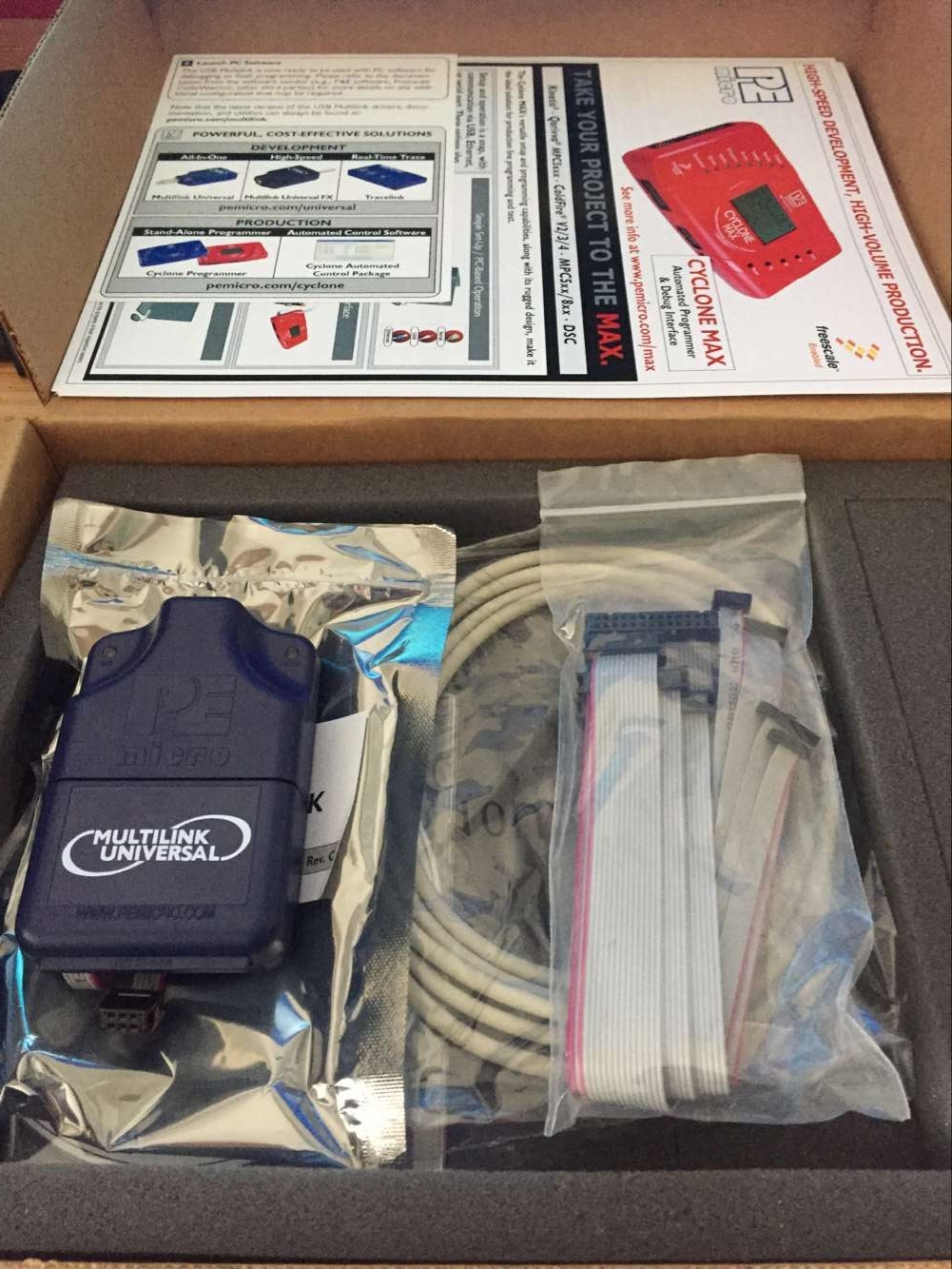

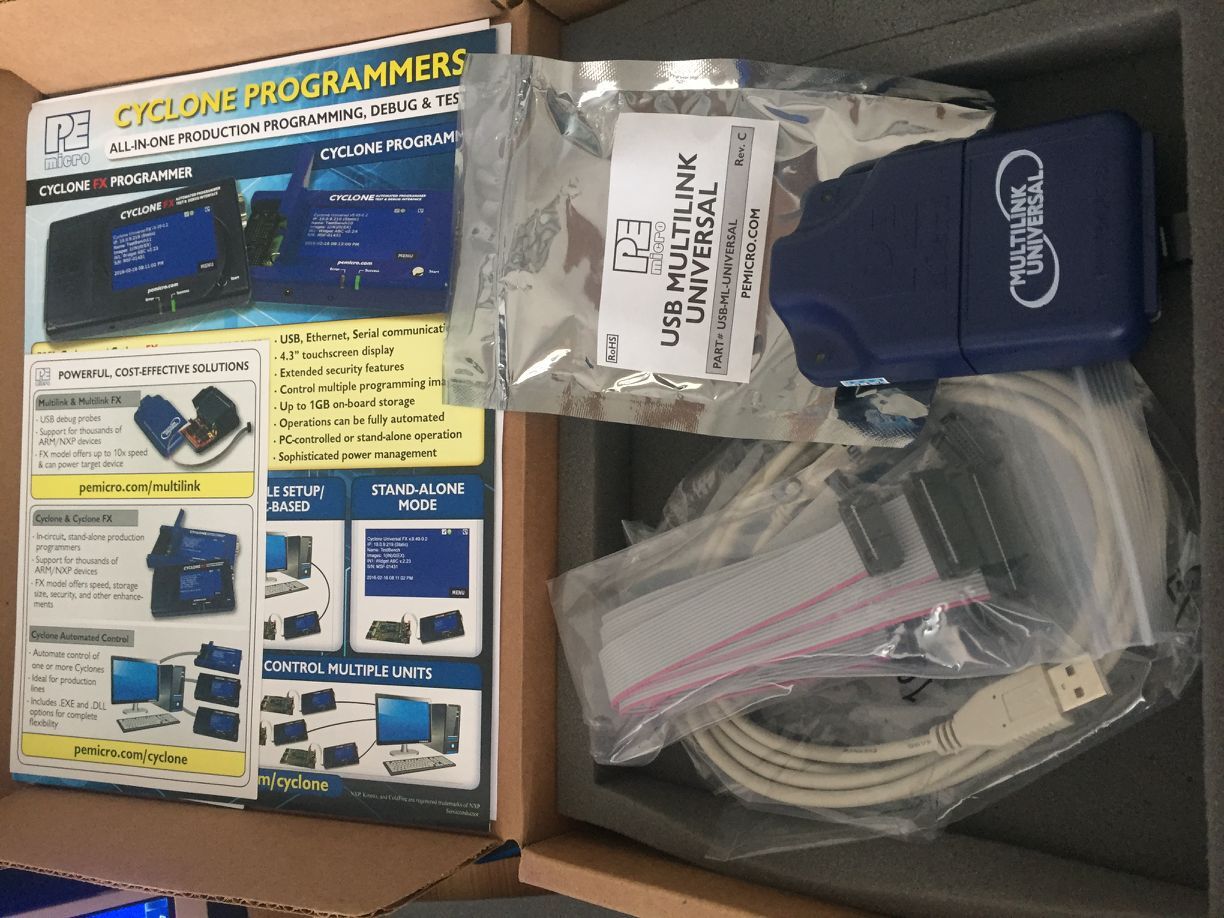

Includes:

· One (1) USB 2.0 High Speed Cable, Type A to Type B, 6-ft.

· One (1) 6-pin 0.100" pitch ribbon cable for connecting to RS08, HCS08, HC(S)12(X), S12Z, ColdFire V1/V1+ targets

· One (1) 14-pin 0.100" pitch ribbon cable for connecting to Qorivva MPC55xx/56xx targets

· One (1) 26-pin 0.100" pitch ribbon cable for connecting to asynchronous ColdFire V2/V3/V4 targets

· One (1) 20-pin 0.100" pitch ribbon cable for connecting to Kinetis ARM targets

· One (1) 20-pin 0.050" pitch ribbon cable for connecting to Kinetis ARM targets

***************************************************
