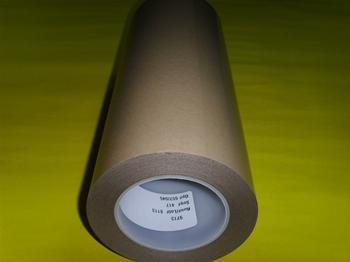

深圳3M9713導電膠帶生產廠家

3m9713   基材：導電膠
厚度 0.08（mm） 寬度 610/965（mm）
顏色 透明 長期耐溫性 80（℃）
適用范圍 PCB/FPC 品牌 3M
短期耐溫性 121（℃） 膠系 導電膠
延伸系數 100
3m9713分析表
3m9713 Tape Only: 0.0035 in. (0.0889 mm)
Release Liner: 0.004 in. (0.010 mm)
3m9713性能、特點
Contact Resistance: Substrate Tested (Foil/Rigid Plate)
Aluminum/ Aluminum/ Copper/ Copper/
Aluminum Stainless Steel Stainless Steel Copper
< 2.5  < 2.0  < 1.0  < 0.5
Based upon four wire (Kelvin probe) resistance measurements made with
crossed pieces of Foil/9713/Rigid plate construction using a 1.0 in x 1.0 in
square piece of 9713. Room temperature aged for 1 year. The rigid metal
surface was prepared with a Scotch-Brite? pad to roughen the surface
and cleaned with isopropyl alcohol.
Outgassing: Total Mass Loss (TML): 1.60%
(ASTM E-595) Collected Volatile Condensed Materials (CVCM): 0.03%
Water Vapor Recovered (WVR) 0.36%
Minimum Overlap Length: 1/4 in. (6 mm)
Minimum Overlap Width: 1/8 inch (3 mm)
             15 min at 1 hr at 24 hr at 1 hr at 24 hr at
Substrate 72°F (22°C) 72°F (22°C) 72°F (22°C) 158°F (70°C) 158°F (70°C)
Adhesive Type Filled Acrylic
Filler Type Conductive Fibers
Release Liner Silicone-Treated Polycoated Kraft Paper
Approximate Thickness:
Tape Only: 0.0035 in. (0.0889 mm)
Release Liner: 0.004 in. (0.010 mm)
Product 3M? XYZ-Axis Electrically Conductive Tape 3m9713
Adhesive Type Filled Acrylic
Filler Type Conductive Fibers
Release Liner Silicone-Treated Polycoated Kraft Paper
Approximate Thickness:
Tape Only: 0.0035 in. (0.0889 mm)
Release Liner: 0.004 in. (0.010 mm) 標簽：     深圳市導電膠帶   深圳市導電膠帶廠家
